DEA160710LT-5023B1
lmages are for reference only.DEA160710LT-5023B1
RF FILTER LOW PASS 0603
Datasheet0603 (1608 Metric), 4 PC Pad
98,854 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Frequency Low Pass RF Filter (Radio Frequency) 30MHz Bandwidth 1dB 0603 (1608 Metric), 4 PC Pad
DEA160710LT-5023B1
| Category | Filters - RF Filters - |
| Manufacturer | TDK Corporation |
| Series | DEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | - |
| Bandwidth | 30MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 1dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 4 PC Pad |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height (Max) | 0.018" (0.45mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

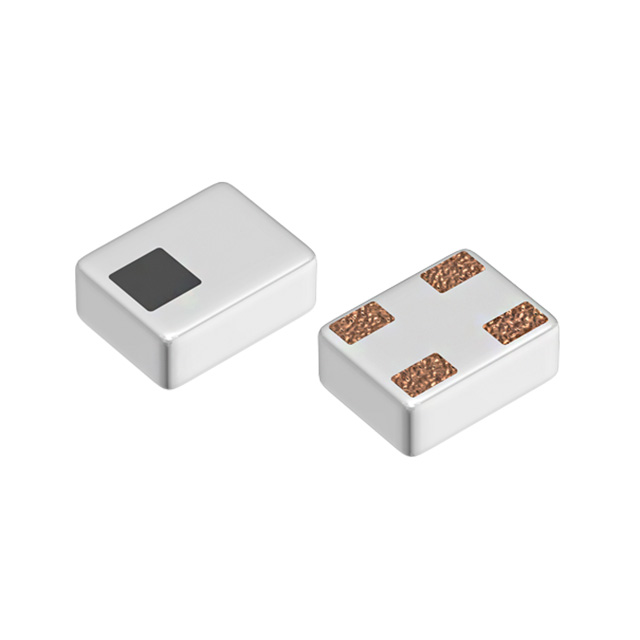

| Part Number | DEA070787LT-4002A1 | DEA070960LT-4006B1 | DEA071910LT-4003B1 | DEA075150HT-8036A1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 782MHZ 0202 | RF FILTER LOW PASS 892MHZ 0202 | RF FILTER LOW PASS 1.81GHZ 0202 | RF FILTER HIGH PASS 5GHZ 0202 |
| Series | DEA | DEA | DEA | DEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
