DEA160960LT-1169AA
lmages are for reference only.DEA160960LT-1169AA
RF FILTER LOW PASS 892MHZ 0603
Datasheet0603 (1608 Metric), 6 PC Pad
43,637 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
892MHz Center Frequency Low Pass RF Filter (Radio Frequency) 136MHz Bandwidth 0.73dB 0603 (1608 Metric), 6 PC Pad
DEA160960LT-1169AA
| Category | Filters - RF Filters - |
| Manufacturer | TDK Corporation |
| Series | DEA |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Frequency | 892MHz Center |
| Bandwidth | 136MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 0.73dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

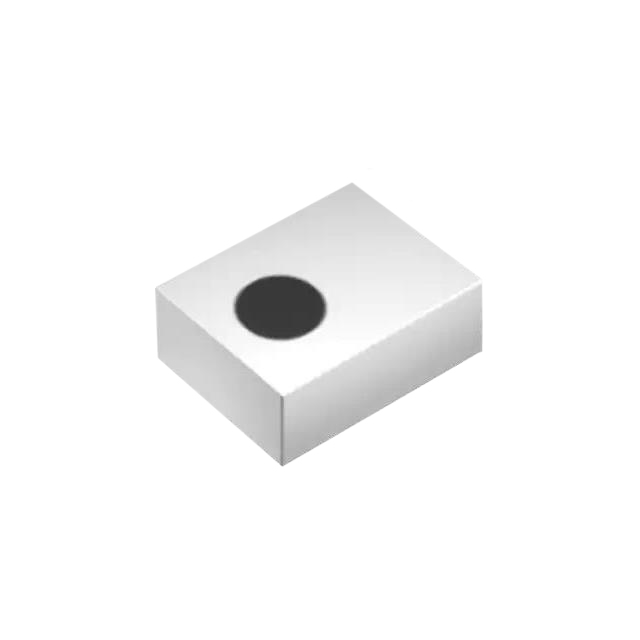

| Part Number | DEA160960LT-5044C1 | DEA160960LT-5044C7 | DEA160960LT-5059A1 | DEA070787LT-4002A1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 829.5MHZ 0603 | COMMUNICATION DEVICES | RF FILTER LOW PASS 829MHZ 0603 | RF FILTER LOW PASS 782MHZ 0202 |
| Series | DEA | DEA | DEA | DEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
