DEA161990LT-1182
lmages are for reference only.DEA161990LT-1182
RF FILTER LOW PASS 1.92GHZ 0603
Datasheet0603 (1608 Metric), 4 PC Pad
27,547 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.92GHz Center Frequency Low Pass RF Filter (Radio Frequency) 140MHz Bandwidth 0.7dB 0603 (1608 Metric), 4 PC Pad
DEA161990LT-1182
| Category | Filters - RF Filters - |
| Manufacturer | TDK Corporation |
| Series | DEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency | 1.92GHz Center |
| Bandwidth | 140MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 0.7dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 4 PC Pad |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

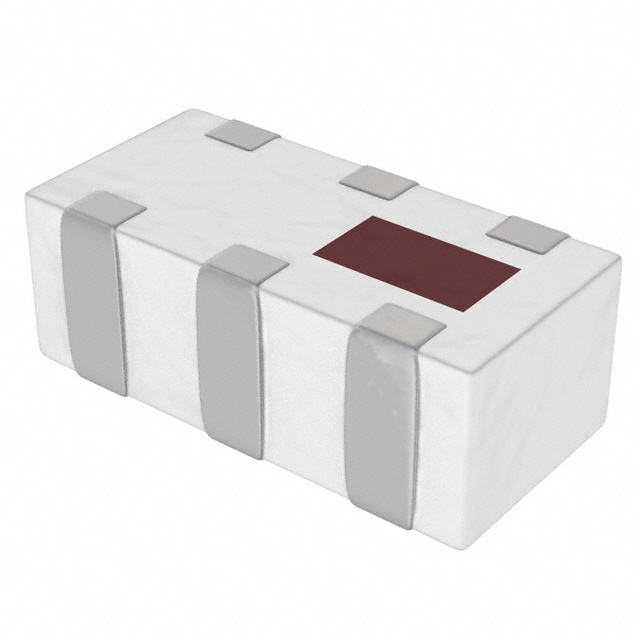

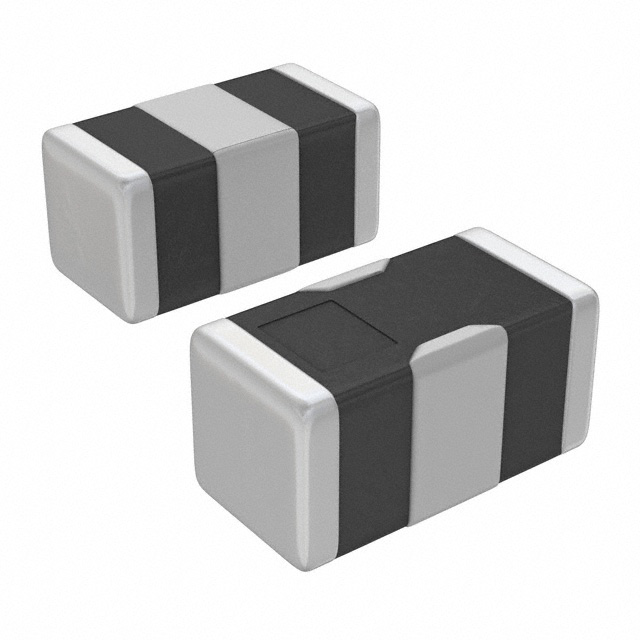

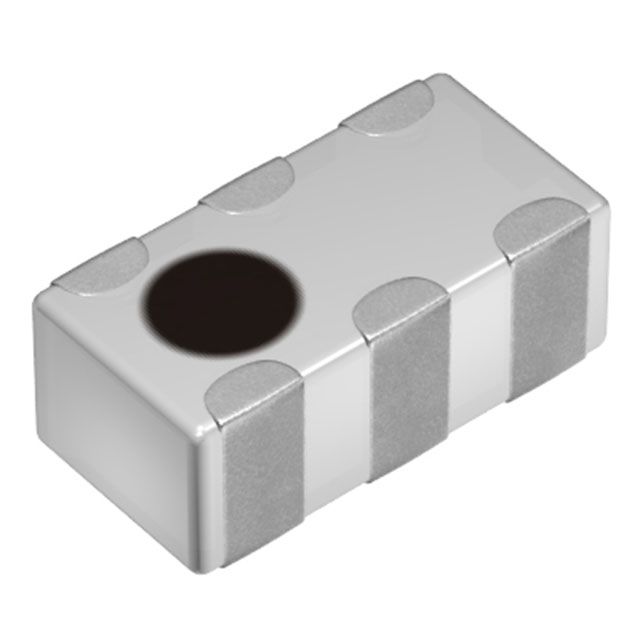

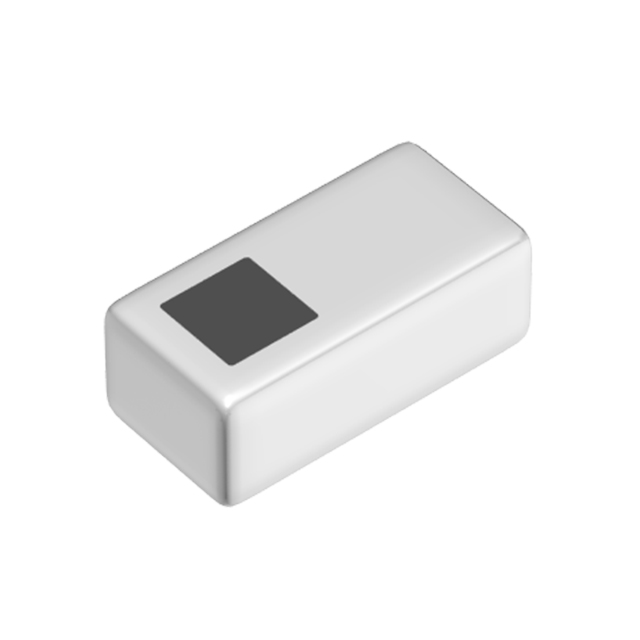

| Part Number | DEA161990LT-1182A8 | DEA161910LT-5003C1 | DEA161910LT-9031A1 | DEA161953BT-2303B1-H |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 1.85GHZ 0603 | RF FILTER LOW PASS 1.81GHZ 0603 | RF FILTER 869.5MHZ/1.81GHZ 0603 | RF FILTER BAND PASS 1.95GHZ 0603 |
| Series | DEA | DEA | DEA | DEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
