DI2220V301R-00

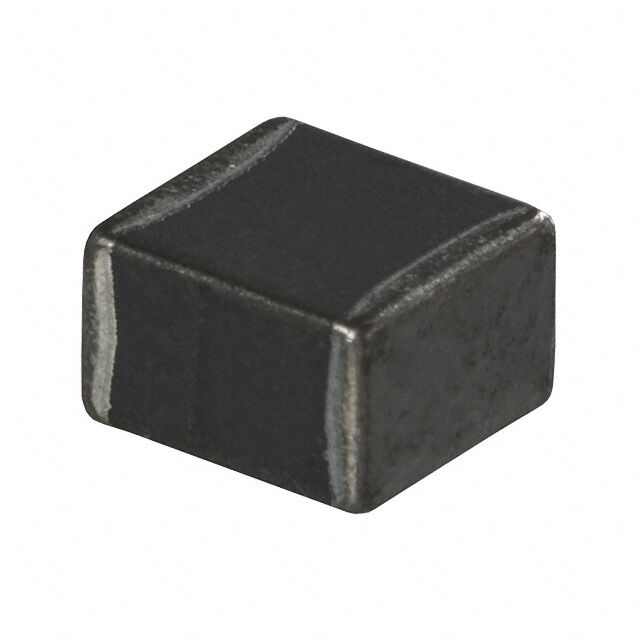

lmages are for reference only.DI2220V301R-00
FIXED IND 300NH 8A 10 MOHM SMD
DatasheetNonstandard
11,742 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
300 nH Unshielded Drum Core, Wirewound Inductor 8 A 10mOhm Max Nonstandard
DI2220V301R-00
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | DI |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 300 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.200" W (5.59mm x 5.08mm) |
| Height - Seated (Max) | 0.142" (3.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | DI2220V301R-10 | AMDLA1707S-6R8MT | 1210-123K | 5500R-224K |
| Manufacturer | Laird-Signal Integrity Products | Abracon LLC | Delevan | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | FIXED IND 300NH 8A 10 MOHM SMD | FIXED IND 6.8UH 24A 7.2MOHM SMD | FIXED IND 12UH 272MA 2.5 OHM SMD | FIXED IND 220UH 2.48A 162MOHM SM |
| Series | Laird-Signal Integrity Products | Abracon LLC | Delevan | Delevan |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
