DI2220V301R-10
lmages are for reference only.DI2220V301R-10
FIXED IND 300NH 8A 10 MOHM SMD
Datasheet2220 (5650 Metric)
46,710 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
300 nH Unshielded Drum Core, Wirewound Inductor 8 A 10mOhm Max 2220 (5650 Metric)
DI2220V301R-10
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | DI |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 300 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5650 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.200" W (5.59mm x 5.08mm) |
| Height - Seated (Max) | 0.152" (3.86mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|

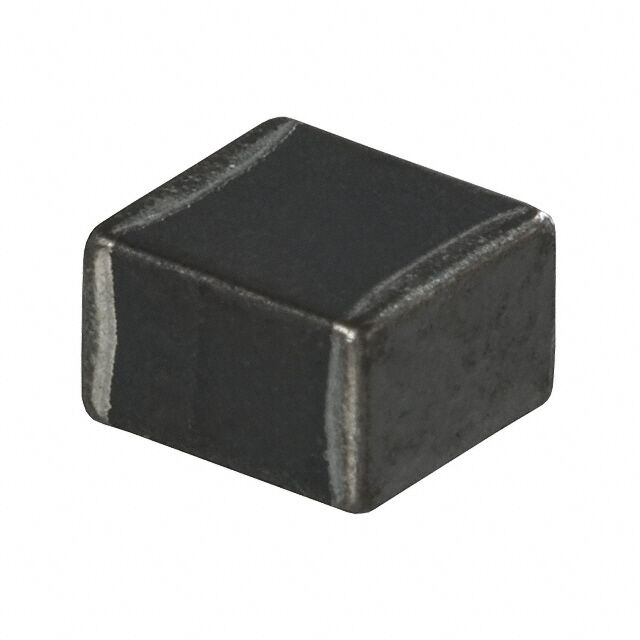

| Part Number | DI2220V301R-00 | AMDLA1707S-6R8MT | 1210-123K | 5500R-224K |
| Manufacturer | Laird-Signal Integrity Products | Abracon LLC | Delevan | Delevan |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | FIXED IND 300NH 8A 10 MOHM SMD | FIXED IND 6.8UH 24A 7.2MOHM SMD | FIXED IND 12UH 272MA 2.5 OHM SMD | FIXED IND 220UH 2.48A 162MOHM SM |
| Series | Laird-Signal Integrity Products | Abracon LLC | Delevan | Delevan |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
