Product CatalogPart Number
DS1-12D
Manufacturer
IXYSDescription
DIODE GEN PURP 1.2KV 2.3A RADIAL
Datasheet
DatasheetPackage
Radial
In Stock
94,529 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DS1-12D
DS1-12D
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 2.3A Through Hole
Quick Inquiry
DS1-12D
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Box |
| RoHS Status | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 2.3A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 7 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 700 µA @ 1200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | DS1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

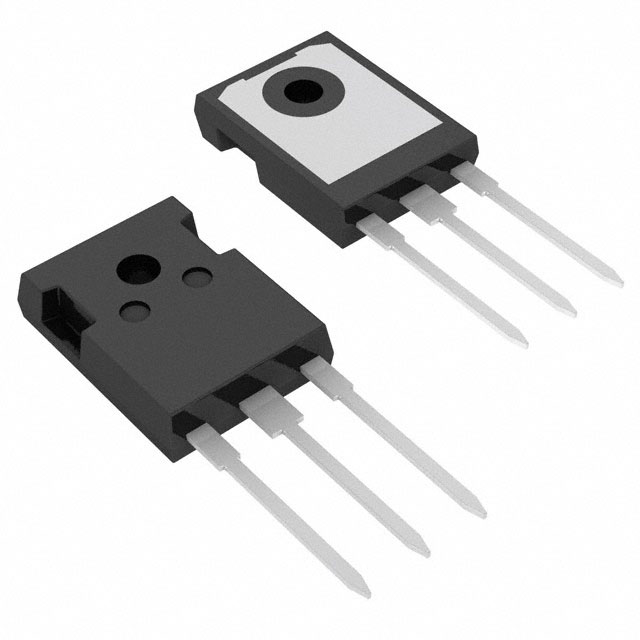

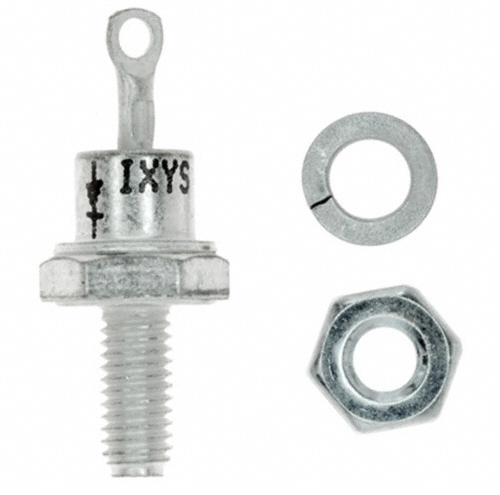

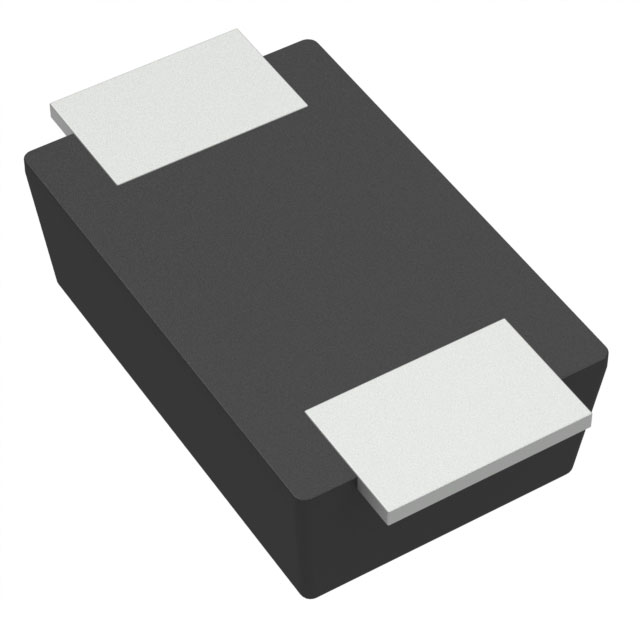

| Part Number | DFLS160-7 | DSA9-12F | DA2J10400L | DSEP60-03A |
| Manufacturer | Diodes Incorporated | IXYS | Panasonic Electronic Components | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE SCHOTTKY 60V 1A PWRDI123 | DIODE AVAL 1.2KV 11A DO203AA | DIODE GP 80V 200MA SMINI2-F5-B | DIODE GEN PURP 300V 60A TO247 |
| Series | - | - | - | HiPerFRED™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Box | Tape & Reel (TR) | Tube |
