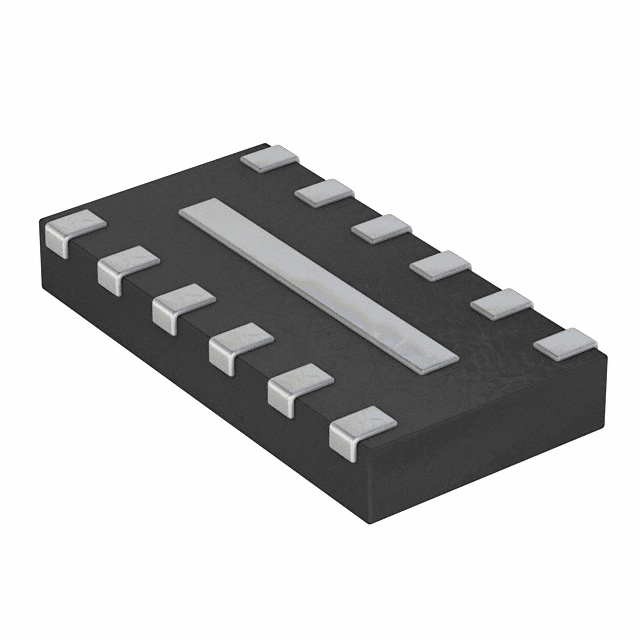

ECLAMP2378K.TCT
lmages are for reference only.ECLAMP2378K.TCT
FILTER RC(PI) 100 OHM/11PF SMD
Datasheet16-UFDFN Exposed Pad
91,629 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100Ohms, C = 11pF 16-UFDFN Exposed Pad
ECLAMP2378K.TCT
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Semtech Corporation |
| Series | EMIClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 1.8GHz ~ 2.5GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 11pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.051" W (3.30mm x 1.30mm) |
| Height | 0.022" (0.55mm) |
| Number of Channels | 8 |
| Base Product Number | ECLAMP2378 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

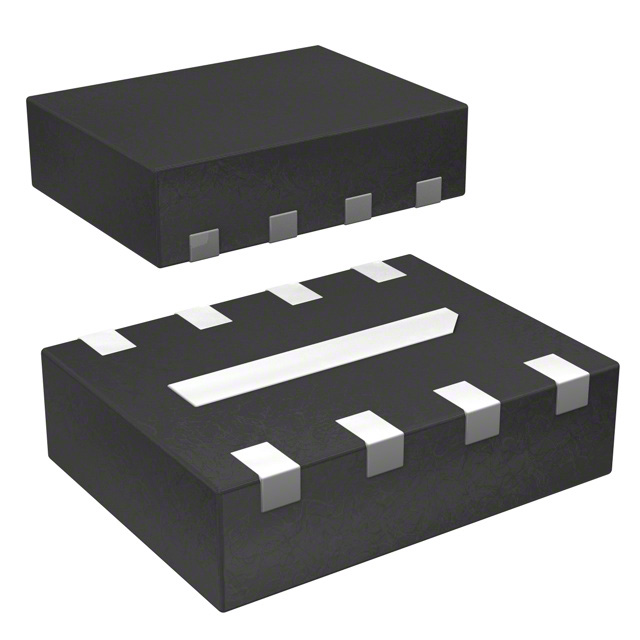

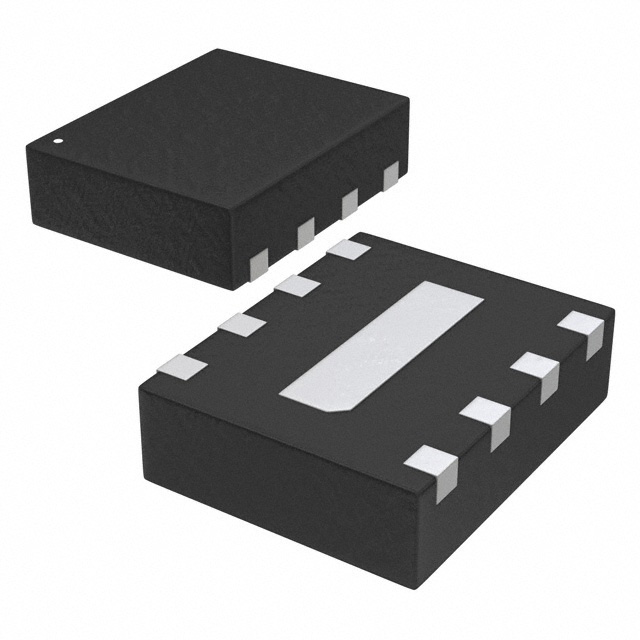

| Part Number | ECLAMP2378K.TCT | ECLAMP2374K.TCT | ECLAMP2374K.TCT | ECLAMP2374KQTCT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FILTER RC(PI) 100 OHM/11PF SMD | FILTER RC(PI) 100 OHM/11PF SMD | FILTER RC(PI) 100 OHM/11PF SMD | ESD/EMI PROT FOR COLOR LCD INT |
| Series | EMIClamp® | EMIClamp® | EMIClamp® | EClamp™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
