ECLAMP2410PQTCT

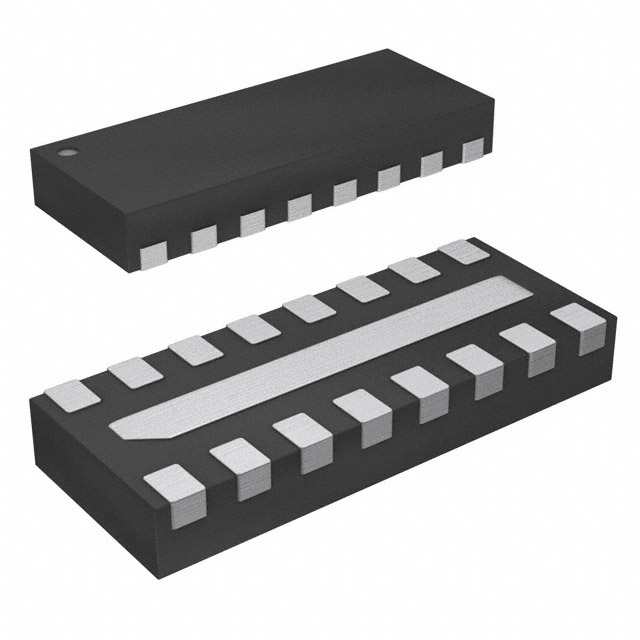

lmages are for reference only.ECLAMP2410PQTCT
FILTER RC(PI) 45 OHM/15PF SMD
Datasheet16-UFDFN Exposed Pad
42,253 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 45Ohms, C = 15pF 16-UFDFN Exposed Pad
ECLAMP2410PQTCT
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Semtech Corporation |
| Series | EMIClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | - |
| Resistance - Channel (Ohms) | 45 |
| Current | - |
| Values | R = 45Ohms, C = 15pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Applications | - |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.157" L x 0.063" W (4.00mm x 1.60mm) |
| Height | 0.026" (0.65mm) |
| Number of Channels | 6 |
| Base Product Number | ECLAMP2410 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | ECLAMP2410P.TCT | ECLAMP2410P.TCT | ECLAMP2410PQTCT | ECLAMP0501T.TCT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | FILTER RC(PI) 45 OHM/12PF SMD | FILTER RC(PI) 45 OHM/12PF SMD | FILTER RC(PI) 45 OHM/15PF SMD | FILTER RC 1 KOHM/12PF ESD SMD |
| Series | EMIClamp® | EMIClamp® | EMIClamp® | EMIClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
