Product CatalogPart Number
GWA40MS120DF4AG
Manufacturer
STMicroelectronicsDescription
IGBT TRENCH FS 1200V 80A TO247
Datasheet
DatasheetPackage
TO-247-3
In Stock
27,055 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

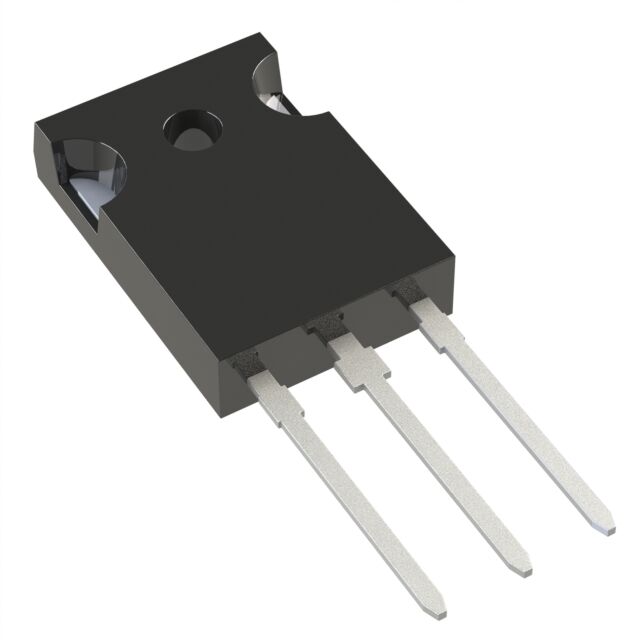

GWA40MS120DF4AG
GWA40MS120DF4AG
lmages are for reference only.Payment Methods
Delivery Services
IGBT Trench Field Stop 1200 V 80 A 536 W Through Hole TO-247 Long Leads
Quick Inquiry
GWA40MS120DF4AG
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 40A |
| Power - Max | 536 W |
| Switching Energy | 1.5mJ (on), 3.3mJ (off) |
| Input Type | Standard |
| Gate Charge | 147 nC |
| Td (on/off) @ 25°C | 35ns/140ns |
| Test Condition | 600V, 40A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads |
| Reverse Recovery Time (trr) | 465 ns |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | GWA40MS120F4AG | RGTV60TS65DGC13 | IRG7PH30K10DPBF | IXYA20N120B4HV |
| Manufacturer | STMicroelectronics | Rohm Semiconductor | Infineon Technologies | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IGBT TRENCH FS 1200V 80A TO247 | SHORT-CIRCUIT TOLERANCE, 650V 30 | IGBT 1200V 30A 180W TO247AC | IGBT 1200V 20A GENX4 XPT TO263D2 |
| Series | - | - | - | GenX4™, XPT™ |
| Packaging | Tube | Tube | Tube | Tube |
