HHM17125D1
lmages are for reference only.HHM17125D1
BALUN 2.4GHZ-2.5GHZ 50/50 0603
Datasheet0603 (1608 Metric), 6 PC Pad
33,315 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 2.4GHz ~ 2.5GHz 50 / 50Ohm 0603 (1608 Metric), 6 PC Pad
HHM17125D1
| Category | RF and Wireless - Balun - |
| Manufacturer | TDK Corporation |
| Series | HHM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 2.4GHz ~ 2.5GHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm |
| Phase Difference | 180° |
| Insertion Loss (Max) | 1.3dB |
| Return Loss (Min) | -10dB |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HHM1506 | HHM1506A2 | HHM15107A2 | HHM15112A1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

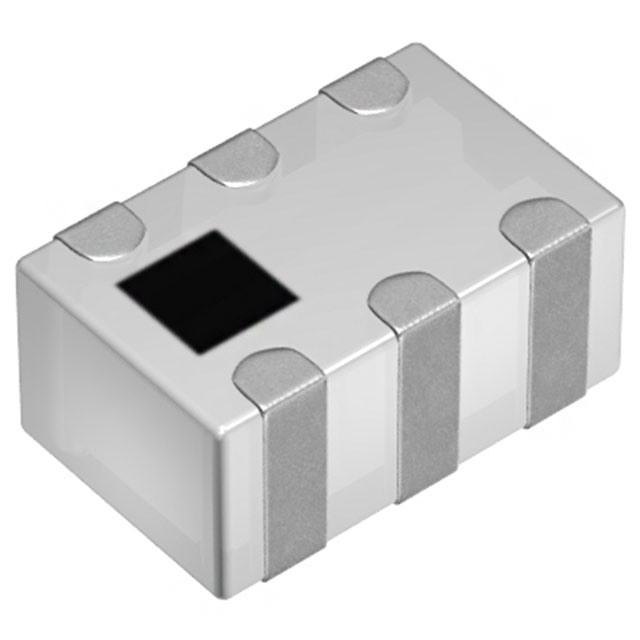

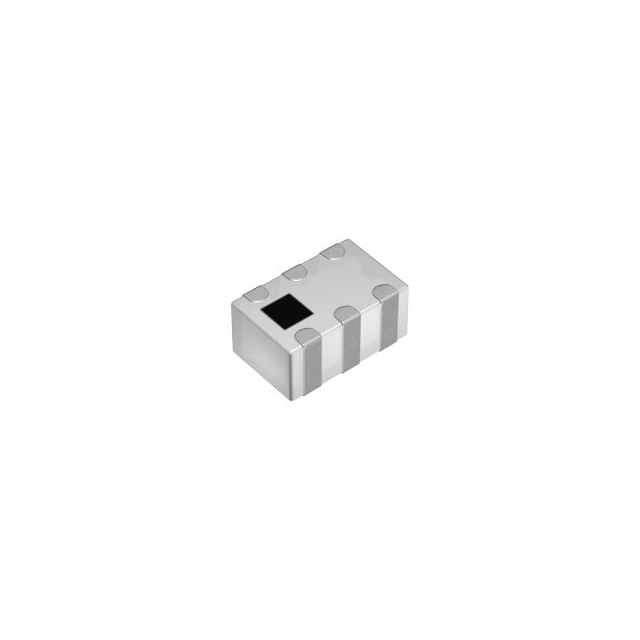

| Description | BALUN DUAL 50/100 0805 | BALUN TRANSFORMER FOR CELL PHONE | MULTILAYER BALUN FOR 2300 - 2700 | BALUN 900MHZ-2.2GHZ 75/100 0805 |
| Series | HHM | * | HHM | HHM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
