HHM1726N1
lmages are for reference only.HHM1726N1
BALUN 824MHZ-915MHZ 50/100 0603
Datasheet0603 (1608 Metric), 6 PC Pad
54,924 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 824MHz ~ 915MHz 50 / 100Ohm 0603 (1608 Metric), 6 PC Pad
HHM1726N1
| Category | RF and Wireless - Balun - |
| Manufacturer | TDK Corporation |
| Series | HHM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 824MHz ~ 915MHz |
| Impedance - Unbalanced/Balanced | 50 / 100Ohm |
| Phase Difference | 180° ±10° |
| Insertion Loss (Max) | 0.8dB |
| Return Loss (Min) | -10dB |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

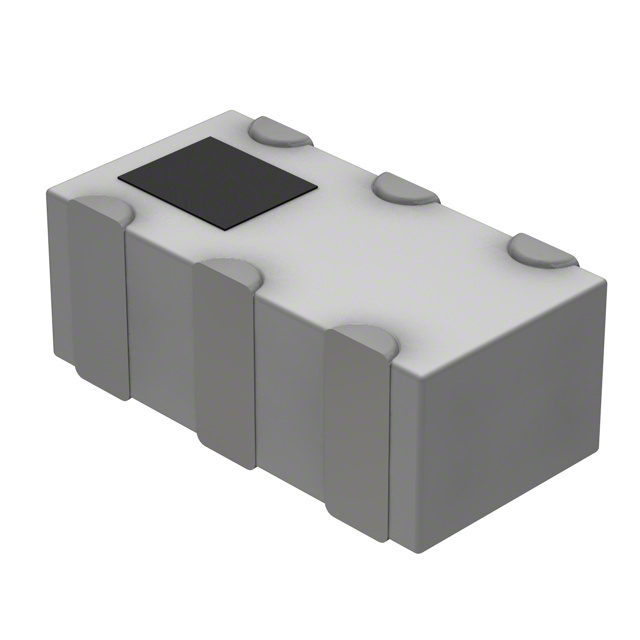

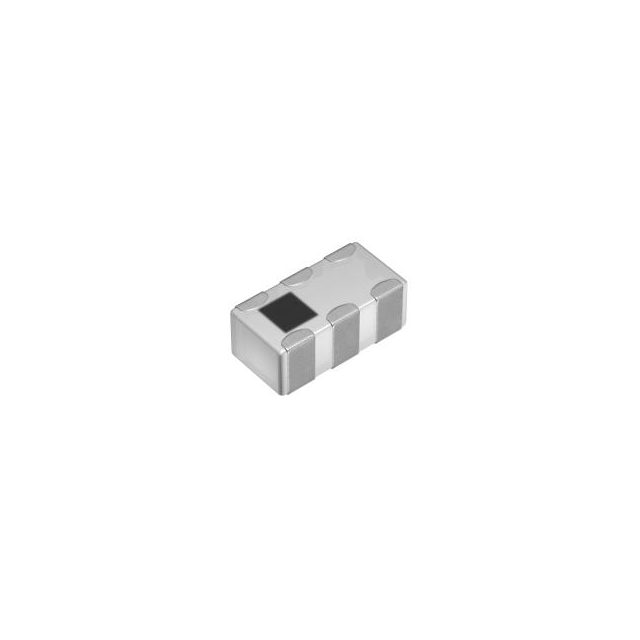

| Part Number | HHM1726P1 | HHM1727D1 | HHM-1589B1 | HHM1506 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BALUN 880MHZ-960MHZ 50/100 0603 | BALUN 3.3GHZ-3.9GHZ 50/50 0603 | BALUN 470MHZ-710MHZ 6SMD | BALUN DUAL 50/100 0805 |
| Series | HHM | HHM | HHM | HHM |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
