HHM17139B2
lmages are for reference only.HHM17139B2
BALUN 2.4GHZ-2.6GHZ 50/50 0603
Datasheet0603 (1608 Metric), 6 PC Pad
95,905 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 2.4GHz ~ 2.6GHz 50 / 50Ohm 0603 (1608 Metric), 6 PC Pad
HHM17139B2
| Category | RF and Wireless - Balun - |
| Manufacturer | TDK Corporation |
| Series | HHM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 2.4GHz ~ 2.6GHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm |
| Phase Difference | 178° |
| Insertion Loss (Max) | 0.4dB |
| Return Loss (Min) | - |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

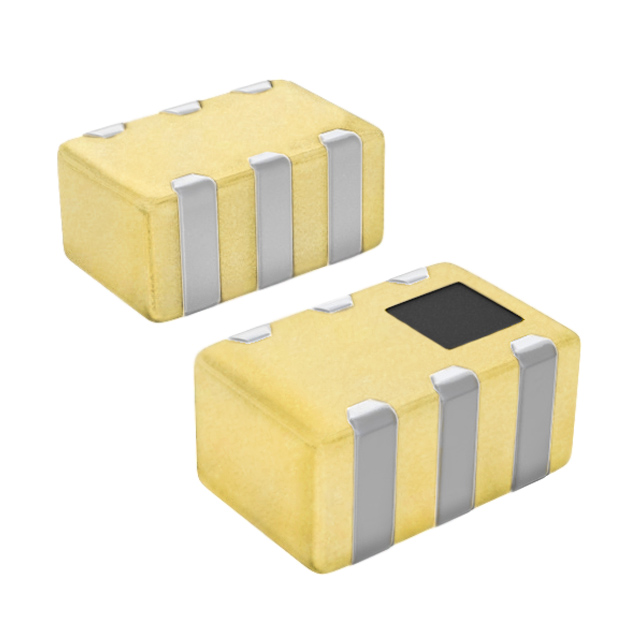

| Part Number | HHM17139B1 | HHM1713E2 | HHM1506 | HHM1506A2 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BALUN 2.4GHZ-2.5GHZ 50/50 0603 | MULTILAYER BALUN FOR 2400 - 2500 | BALUN DUAL 50/100 0805 | BALUN TRANSFORMER FOR CELL PHONE |
| Series | HHM | HHM | HHM | * |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
