LDD-F307NI-USB
lmages are for reference only.LDD-F307NI-USB
DISPLAY 7SEG 0.3" DBL BLUE 10DIP
Datasheet10-DIP (0.400", 10.16mm), 9 Leads
46,755 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Blue 7-Segment 2 Character Common Cathode 3.5V 10mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 10-DIP (0.400", 10.16mm), 9 Leads
LDD-F307NI-USB
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 2 |
| Size / Dimension | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) |
| Digit/Alpha Size | 0.30" (7.62mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Blue |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Current - Test | 10mA |
| Millicandela Rating | 6mcd |
| Wavelength - Peak | 470nm |
| Power Dissipation (Max) | 100mW |
| Package / Case | 10-DIP (0.400", 10.16mm), 9 Leads |
| Base Product Number | LDD-F307 |
| Display Format | - |
| Product Attribute | |
 |
 |
 |

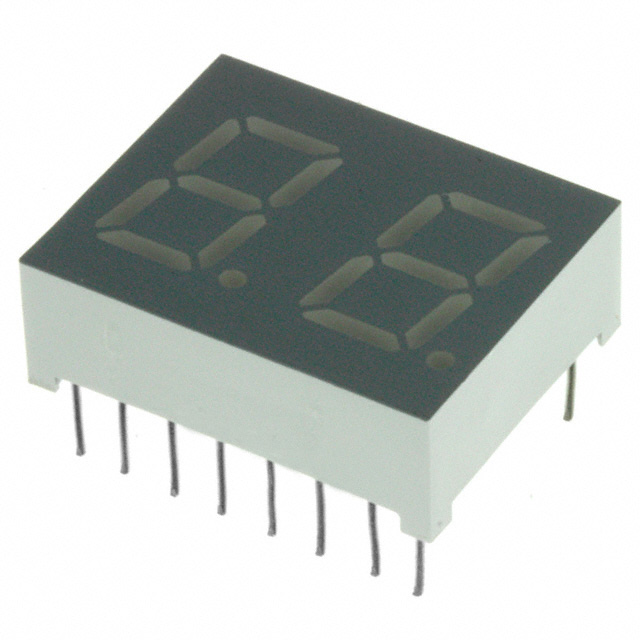

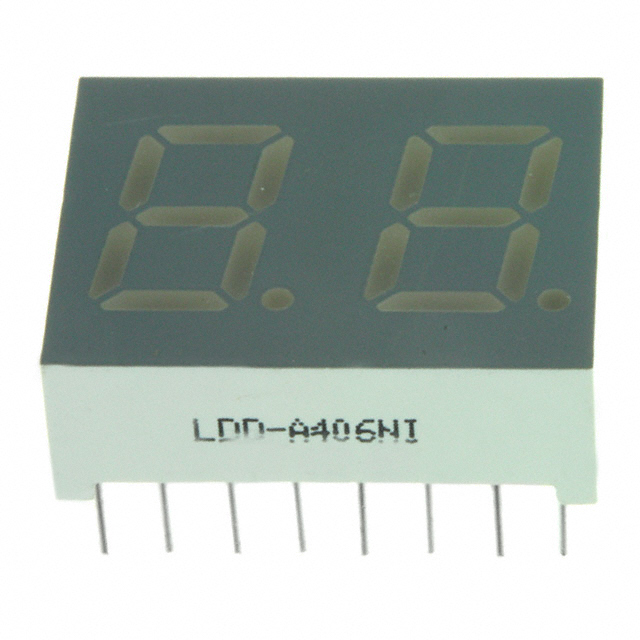

| Part Number | LDD-F307NI-SB | LDD-A402NI | LDD-A404NI | LDD-A406NI |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.3" DBL BLUE 10DIP | DISPLAY 7SEG 0.4" DBL GRN 16DIP | DISPLAY 7-SEG 0.4" DBL RED 16DIP | DISPLAY 7-SEG 0.4" DBL RED 16DIP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
