LLQPB201210T3R3M
lmages are for reference only.LLQPB201210T3R3M
FIXED IND 3.3UH 440MA 650MOHM SM
Datasheet0805 (2012 Metric)
17,044 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µH Unshielded Wirewound Inductor 440 mA 500mOhm 0805 (2012 Metric)
LLQPB201210T3R3M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LLQPB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 440 mA |
| Current - Saturation (Isat) | 490mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 500mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 190MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

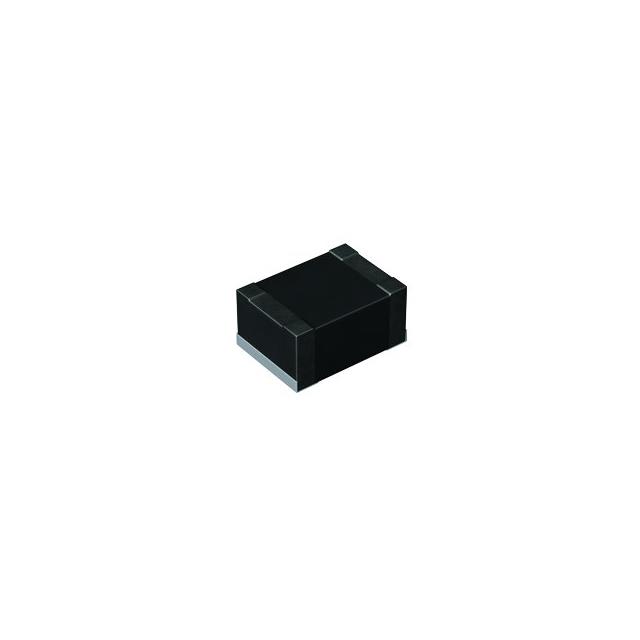

| Part Number | LLQPB201210T330M | LLQPB201210T100M | LLQPB201210T101M | LLQPB201210T150M |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 33UH 220MA 2.6 OHM SMD | FIXED IND 10UH 330MA 1.105OHM SM | FIXED IND 100UH 85MA 10.01OHM SM | FIXED IND 15UH 300MA 1.3 OHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
