OJE-SH-105DM,000

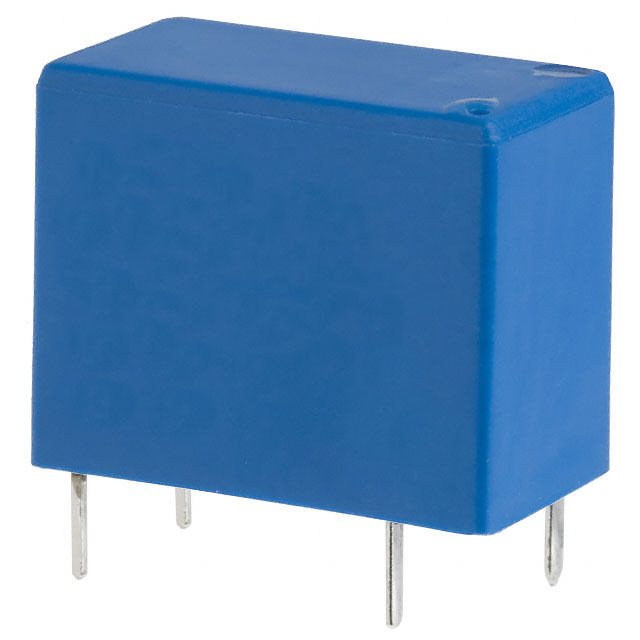

lmages are for reference only.OJE-SH-105DM,000
RELAY GEN PURPOSE SPST 5A 5V
Datasheet-
53,398 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
OJE-SH-105DM,000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | OJE, OEG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Load - Max Switching | 1385VA, 150W |
| Coil Current | 91 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 10 ms |
| Release Time | 4 ms |
| Operating Temperature | -30°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CQC, cULus, TUV, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 55.6 Ohms |
| Base Product Number | OJE-SH |
| Product Attribute |  |
|
|
 |
| Part Number | OJE-SH-105LMH,000 | OJE-SH-105LMH000 | OJE-SH-112DM,801 | OJE-SH-112HM,000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OJE-SH-105LMH,000 | OJE-SH-105LMH 000 | OJE-SH-112DM,801 | RELAY GEN PURPOSE SPST 10A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Bulk | Tray | Bulk |
