OJE-SS-109LMF,F000
lmages are for reference only.OJE-SS-109LMF,F000
RELAY GEN PURPOSE SPST 3A 9V
Datasheet-
62,798 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
OJE-SS-109LMF,F000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | OJE, OEG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Load - Max Switching | 831VA, 90W |
| Coil Current | 22.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 15 ms |
| Release Time | 4 ms |
| Operating Temperature | -30°C ~ 90°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CQC, cULus, TUV, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 405 Ohms |
| Base Product Number | OJE-SS |
| Product Attribute |  |
 |
 |
 |

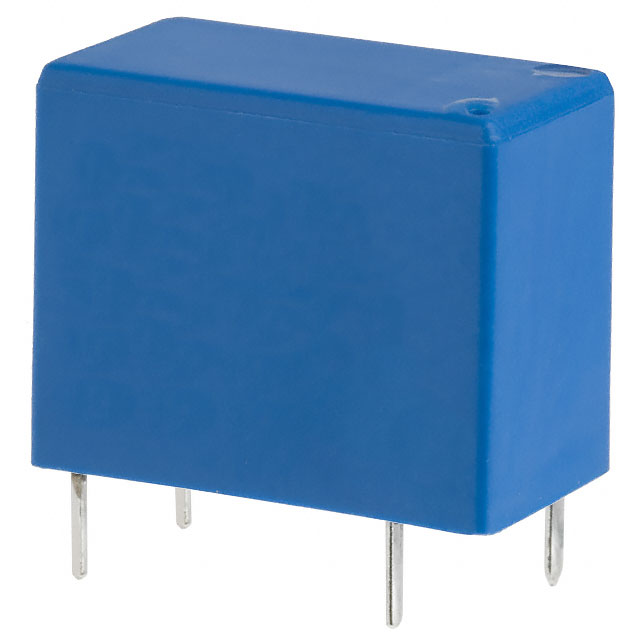

| Part Number | OJE-SS-109LM,000 | OJE-SS-109LMH,000 | OJE-SS-103LM,000 | OJE-SS-105DM,000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 3A 9V | RELAY GEN PURPOSE SPST 8A 9V | RELAY GEN PURPOSE SPST 3A 3V | RELAY GEN PURPOSE SPST 5A 5V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
