OJE-SH-124LMH,000
lmages are for reference only.OJE-SH-124LMH,000
RELAY GEN PURPOSE SPST 8A 24V
Datasheet-
36,912 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
OJE-SH-124LMH,000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | OJE, OEG |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Load - Max Switching | 2216VA, 240W |
| Coil Current | 8.6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 4 ms |
| Operating Temperature | -30°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CQC, cULus, TUV, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 2.88 kOhms |
| Base Product Number | OJE-SH |
| Product Attribute |  |
 |
|
|

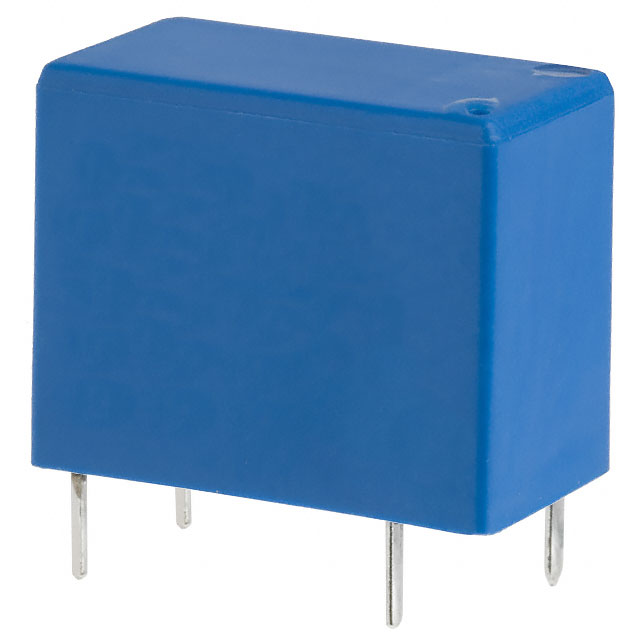

| Part Number | OJE-SH-124LM,000M | OJE-SH-105DM,000 | OJE-SH-105LMH,000 | OJE-SH-105LMH000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE SPST 3A 24V | RELAY GEN PURPOSE SPST 5A 5V | OJE-SH-105LMH,000 | OJE-SH-105LMH 000 |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity |
| Packaging | Bulk | Bulk | Tray | Bulk |
