Product CatalogPart Number
PQ108081H-101MHF
Manufacturer
ITG Electronics, Inc.Description
100.00UH, 20%, 28.50MOHM, 10.30A
Datasheet
DatasheetPackage
3-SMD
In Stock
53,668 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PQ108081H-101MHF
PQ108081H-101MHF

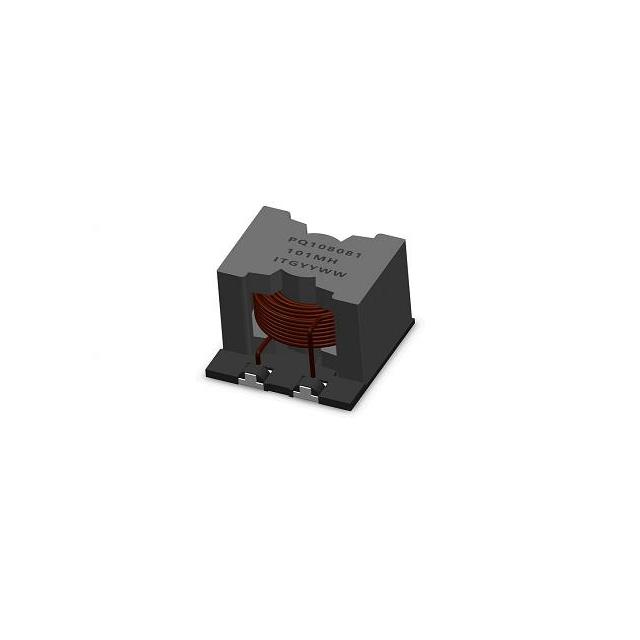

lmages are for reference only.Payment Methods
Delivery Services
100 µH Drum Core, Wirewound Inductor 10.5 A 100mOhm 3-SMD
Quick Inquiry
PQ108081H-101MHF
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PQ108081H |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10.5 A |
| Current - Saturation (Isat) | 10.1A |
| Shielding | - |
| DC Resistance (DCR) | 100mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD |
| Supplier Device Package | 3-SMD |
| Size / Dimension | 1.100" L x 1.100" W (27.94mm x 27.94mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | PQ108081H-102MHF | PQ108081H-102MHF | PQ108081H-151MHF | PQ108081H-221MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1000.00UH, 20%, 206.00MOHM, 3.10 | 1000.00UH, 20%, 206.00MOHM, 3.10 | 150.00UH, 20%, 40.50MOHM, 8.60A | 220.00UH, 20%, 54.50MOHM, 6.60A |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
