Product CatalogPart Number
PQ108081H-102MHF
Manufacturer
ITG Electronics, Inc.Description
1000.00UH, 20%, 206.00MOHM, 3.10
Datasheet
DatasheetPackage
3-SMD
In Stock
43,345 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PQ108081H-102MHF
PQ108081H-102MHF
lmages are for reference only.Payment Methods
Delivery Services
1 mH Drum Core, Wirewound Inductor 3.9 A 206mOhm 3-SMD
Quick Inquiry
PQ108081H-102MHF
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PQ108081H |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.9 A |
| Current - Saturation (Isat) | 2.95A |
| Shielding | - |
| DC Resistance (DCR) | 206mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD |
| Supplier Device Package | 3-SMD |
| Size / Dimension | 1.100" L x 1.100" W (27.94mm x 27.94mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | PQ108081H-102MHF | PQ108081H-101MHF | PQ108081H-151MHF | PQ108081H-221MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1000.00UH, 20%, 206.00MOHM, 3.10 | 100.00UH, 20%, 28.50MOHM, 10.30A | 150.00UH, 20%, 40.50MOHM, 8.60A | 220.00UH, 20%, 54.50MOHM, 6.60A |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
PQ108081-100MHF
ITG Electronics, Inc.
PQ108081-101MHF
ITG Electronics, Inc.
PQ108081-101MHF
ITG Electronics, Inc.
PQ108081-120MHF
ITG Electronics, Inc.
PQ108081-150MHF
ITG Electronics, Inc.
PQ108081-151MHF
ITG Electronics, Inc.
PQ108081-151MHF
ITG Electronics, Inc.
PQ108081-180MHF
ITG Electronics, Inc.
PQ108081-180MHF
ITG Electronics, Inc.
PQ108081-220MHF
ITG Electronics, Inc.
PQ108081-221MHF
ITG Electronics, Inc.

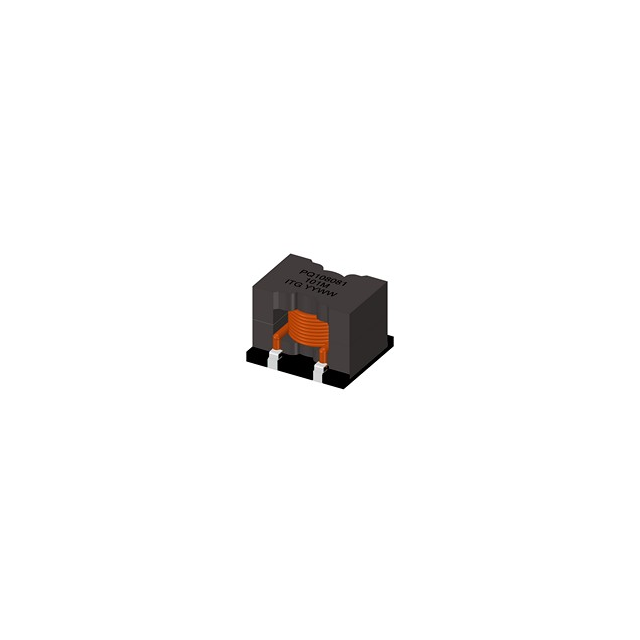

PQ108081-330MHF
ITG Electronics, Inc.
PQ108081-331MHF
ITG Electronics, Inc.
PQ108081-390MHF
ITG Electronics, Inc.
PQ108081-3R3MHF
ITG Electronics, Inc.
PQ108081-470MHF
ITG Electronics, Inc.
PQ108081-471MHF
ITG Electronics, Inc.

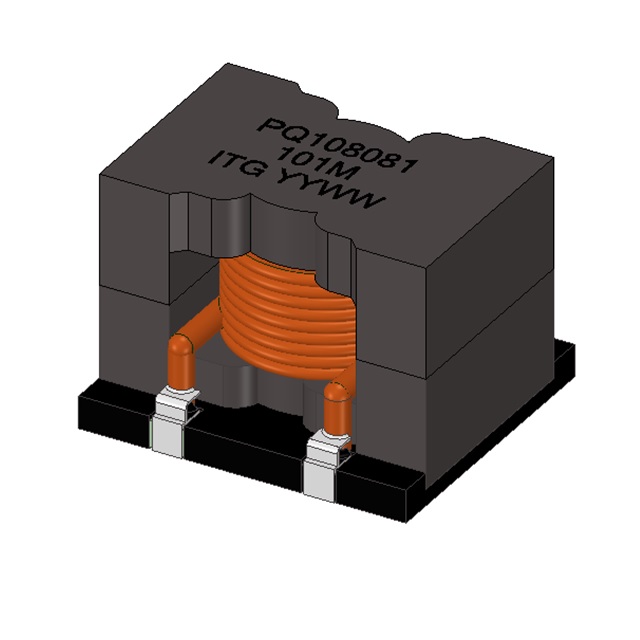

PQ108081-4R7MHF
