PTR060V0040-TR

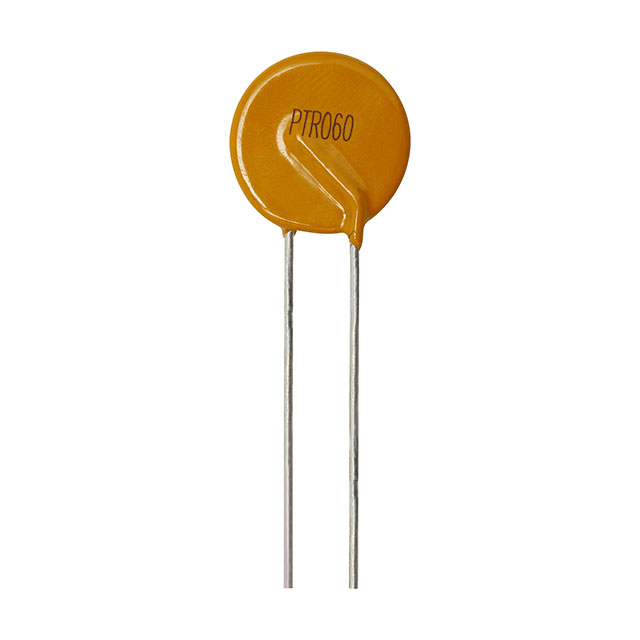

lmages are for reference only.PTR060V0040-TR
PTC RESET FUSE 60V 400MA RADIAL
DatasheetRadial, Disc
34,858 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 60V 400 mA Ih Through Hole Radial, Disc
PTR060V0040-TR
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | PTR060V |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Trip (It) | 800 mA |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
| Approval Agency | cURus, TUV |
| Time to Trip | 3.8 s |
| Resistance - Initial (Ri) (Min) | 550 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.29 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PTR060V0040-BK | PTR060V0040-BK1 | PTR060V0040-TR1 | PTR060V0010-BK |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | PTC RESET FUSE 60V 400MA RADIAL | PTC RESET FUSE 60V 400MA RADIAL | PTC RESET FUSE 60V 400MA RADIAL | PTC RESET FUSE 60V 100MA RADIAL |
| Series | PTR060V | PTR060V | PTR060V | PTR060V |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
