PTVA123501EC-V2-R0
lmages are for reference only.PTVA123501EC-V2-R0
RF MOSFET LDMOS 50V H-36248-2
Datasheet2-Flatpack, Fin Leads
33,064 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 50 V 150 mA 1.2GHz ~ 1.4GHz 17dB 350W H-36248-2
PTVA123501EC-V2-R0
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 1.2GHz ~ 1.4GHz |
| Gain | 17dB |
| Voltage - Test | 50 V |
| Current Rating (Amps) | - |
| Noise Figure | - |
| Current - Test | 150 mA |
| Power - Output | 350W |
| Voltage - Rated | 105 V |
| Mounting Type | Surface Mount |
| Package / Case | 2-Flatpack, Fin Leads |
| Supplier Device Package | H-36248-2 |
| Base Product Number | PTVA123501 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

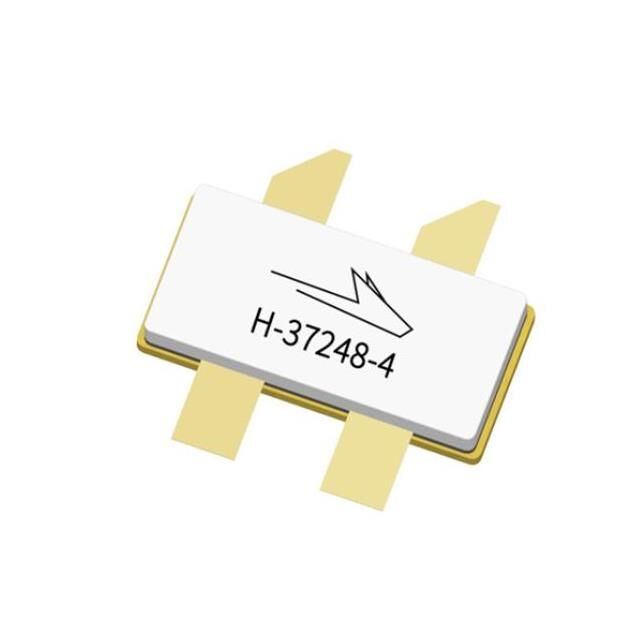

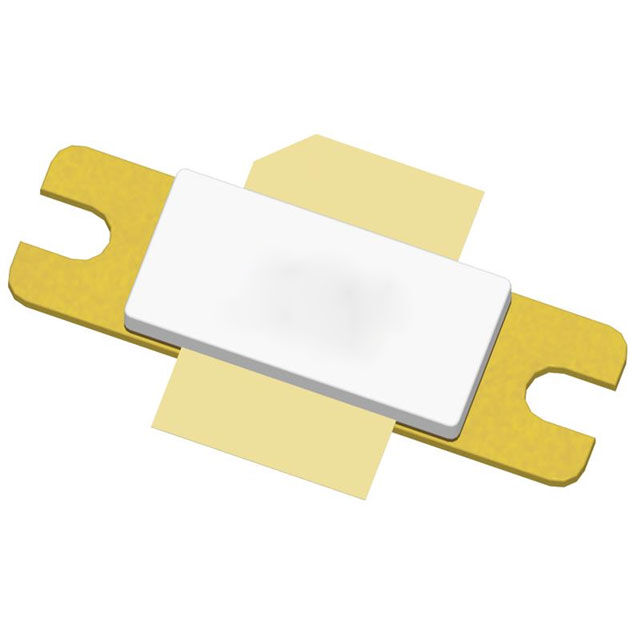

| Part Number | PTVA123501EC-V2-R250 | PTVA123501ECV2XWSA1 | PTVA123501FC-V1-R0 | PTVA123501FC-V1-R250 |
| Manufacturer | MACOM Technology Solutions | Infineon Technologies | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | RF MOSFET LDMOS | RF MOSFET LDMOS H-36248-2 | RF MOSFET LDMOS 50V H-37248-4 | RF MOSFET LDMOS |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
