PTVA120121M-V1-R1K

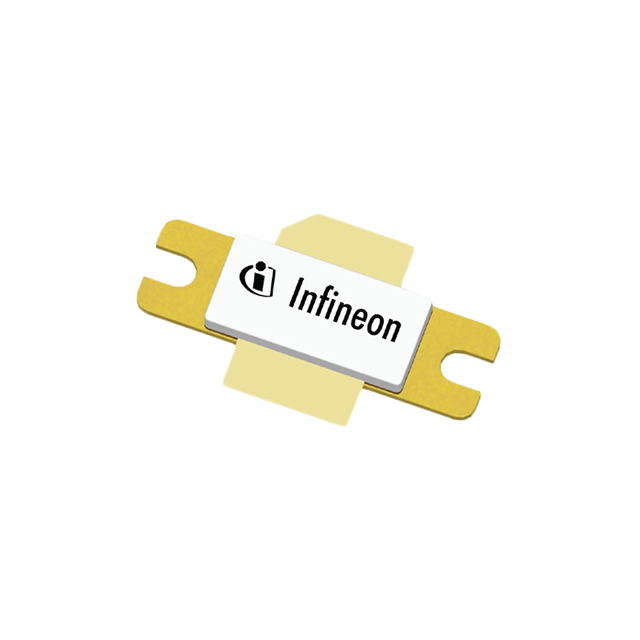

lmages are for reference only.PTVA120121M-V1-R1K
RF MOSFET LDMOS 48V 10SON
Datasheet10-LDFN Exposed Pad
55,034 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 48 V 50 mA 500MHz ~ 1.4GHz 21.64dB 15.62W PG-SON-10
PTVA120121M-V1-R1K
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 500MHz ~ 1.4GHz |
| Gain | 21.64dB |
| Voltage - Test | 48 V |
| Current Rating (Amps) | 1µA |
| Noise Figure | - |
| Current - Test | 50 mA |
| Power - Output | 15.62W |
| Voltage - Rated | 105 V |
| Mounting Type | - |
| Package / Case | 10-LDFN Exposed Pad |
| Supplier Device Package | PG-SON-10 |
| Base Product Number | PTVA120121 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | PTVA030121EA-V1-R0 | PTVA030121EA-V1-R250 | PTVA030121EAV1XWSA1 | PTVA035002EV-V1-R0 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | Infineon Technologies | MACOM Technology Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | RF MOSFET LDMOS 50V H-36265-2 | RF MOSFET LDMOS | RF MOSFET LDMOS H-36265-2 | RF MOSFET LDMOS 50V H-36275-4 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tray | Strip |
