PTVA123501ECV2XWSA1
lmages are for reference only.PTVA123501ECV2XWSA1
RF MOSFET LDMOS H-36248-2
Datasheet2-Flatpack, Fin Leads
54,854 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 1.2GHz ~ 1.4GHz 17dB 350W H-36248-2
PTVA123501ECV2XWSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tray |
| RoHS Status | |
| Technology | LDMOS |
| Configuration | Dual |
| Frequency | 1.2GHz ~ 1.4GHz |
| Gain | 17dB |
| Voltage - Test | - |
| Current Rating (Amps) | 10µA |
| Noise Figure | - |
| Current - Test | - |
| Power - Output | 350W |
| Voltage - Rated | 105 V |
| Mounting Type | Surface Mount |
| Package / Case | 2-Flatpack, Fin Leads |
| Supplier Device Package | H-36248-2 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

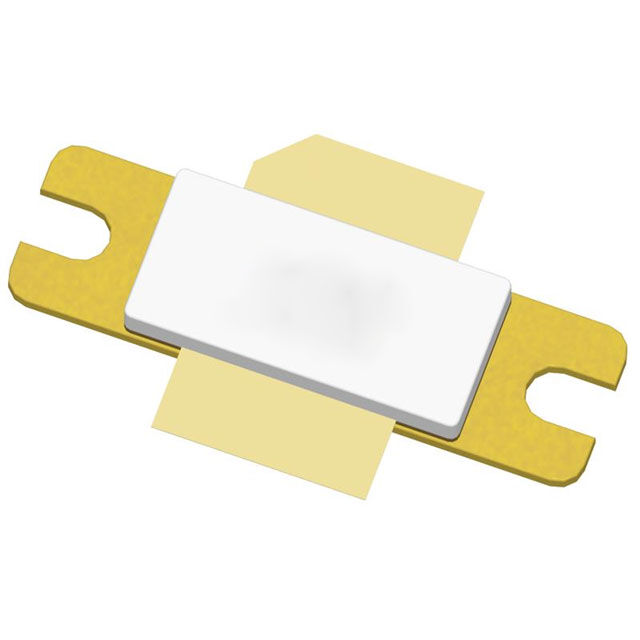

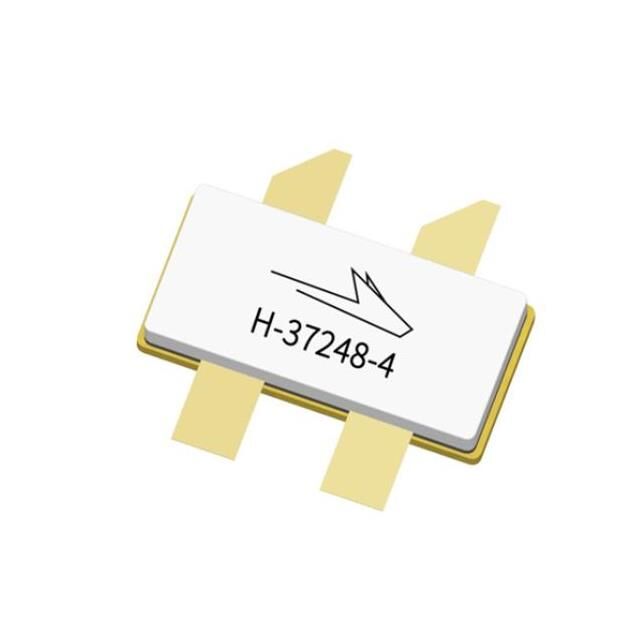

| Part Number | PTVA123501EC-V2-R0 | PTVA123501EC-V2-R250 | PTVA123501FC-V1-R0 | PTVA123501FC-V1-R250 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RF MOSFET LDMOS 50V H-36248-2 | RF MOSFET LDMOS | RF MOSFET LDMOS 50V H-37248-4 | RF MOSFET LDMOS |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
