RT9012-NNGQW

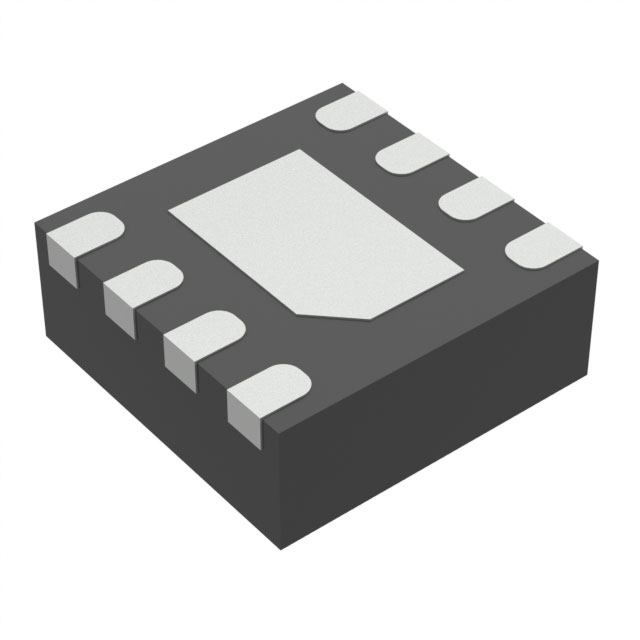

lmages are for reference only.RT9012-NNGQW
IC REG LINEAR 2.85V/2.85V 8WDFN
Datasheet8-WFDFN Exposed Pad
17,514 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA 8-WDFN (2x2)
RT9012-NNGQW
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.85V, 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.24V @ 300mA (Typ), 0.24V @ 300mA (Typ) |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 80 µA |
| PSRR | 65dB ~ 50dB (100Hz ~ 10kHz) |
| Control Features | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WDFN (2x2) |
| Base Product Number | RT9012 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RT9012-MGGQW | RT2515AGSP | RT2517AGQV | RT2517BGSP |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.8V/2.8V 8WDFN | IC REG LINEAR POS ADJ 2A 8SOP | IC REG LINEAR POS ADJ 1A 8AL-DFN | IC REG LINEAR POS ADJ 1A 8SOP |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
