Product CatalogPart Number
S23P50/100D15
Manufacturer
TamuraDescription
SENSOR CURRENT HALL 50A AC/DC
Datasheet
DatasheetPackage
Module
In Stock
65,163 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

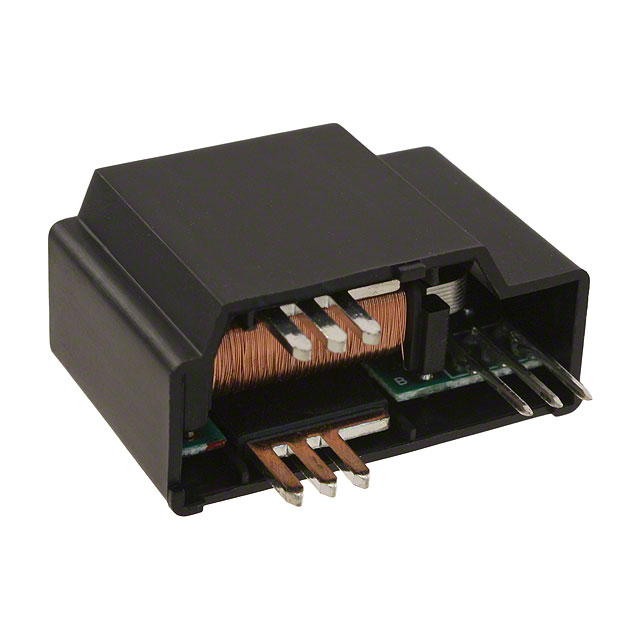

S23P50/100D15
S23P50/100D15
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 50A 1 Channel Hall Effect, Closed Loop Bidirectional Module
Quick Inquiry
S23P50/100D15
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Tamura |
| Series | S23PXXXD15 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 50A |
| Number of Channels | 1 |
| Output | Ratiometric, Current |
| Sensitivity | - |
| Frequency | DC ~ 100kHz |
| Linearity | ±0.15% |
| Accuracy | ±0.25% |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 0.5µs |
| Current - Supply (Max) | 25mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | S23P50/100D15M1 | S23P50/100D15M2 | CSNF151-001 | CSLA1GF |
| Manufacturer | Tamura | Tamura | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR CURRENT HALL 100A AC/DC | CURRENT SENSOR (50A/100A; 15V) | SENSOR CURRENT HALL 180A AC/DC | SENSOR CURRENT HALL 100A AC/DC |
| Series | Tamura | Tamura | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Bulk | Tray | Bulk | Bulk |
