SML-LXIL2324SYC-TR
lmages are for reference only.SML-LXIL2324SYC-TR
LED 589NM YEL WTR CLR 6MM SQ SMD
Datasheet2423 (6058 Metric)
26,442 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow 589nm LED Indication - Discrete 2.2V 2423 (6058 Metric)
SML-LXIL2324SYC-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | - |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 45000mcd |
| Lens Style | - |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | 14° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 589nm |
| Wavelength - Peak | 589nm |
| Features | - |
| Package / Case | 2423 (6058 Metric) |
| Supplier Device Package | 2324 |
| Size / Dimension | 6.00mm L x 5.80mm W |
| Height (Max) | 2.90mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

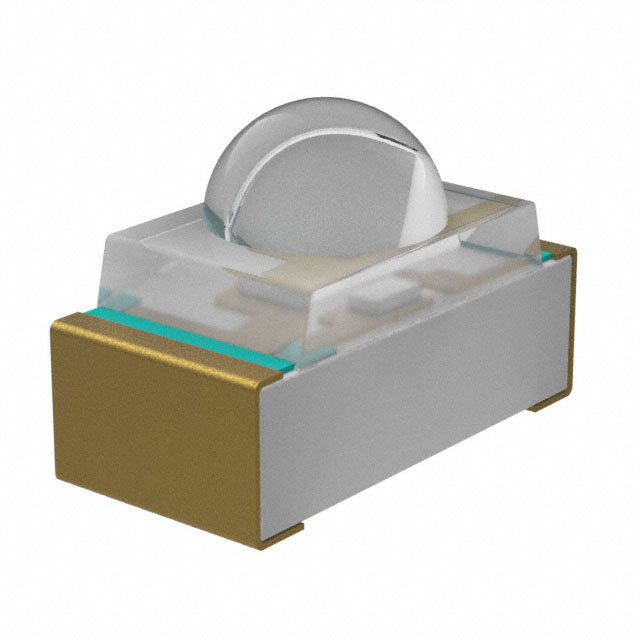

| Part Number | SML-LXIL2324SIC-TR | SML-LXIL0603SIC-TR | SML-LXIL0603SYC-TR | SML-LXIL0603UPGCTR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED 625NM RED WTR CLR 6MM SQ SMD | LED RED CLEAR TOP VIEW SMD | LED YELLOW CLEAR SMD | LED GREEN CLEAR SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
