NAND Gate IC 4 Channel Schmitt Trigger 14-WQFN (3x2.5)
SN74LVC132ABQAR
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Texas Instruments |
| Series | 74LVC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.1V ~ 3.6V |
| Current - Quiescent (Max) | 40 μA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.6V ~ 1.7V |
| Input Logic Level - High | 0.8V ~ 2V |
| Max Propagation Delay @ V, Max CL | 5.6ns @ 3.3V, 50pF |
| Operating Temperature | -40＜C ~ 125＜C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-WQFN (3x2.5) |
| Package / Case | 14-WFQFN Exposed Pad |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SN74LVC132APWR | SN74LVC132APWRQ1 | SN74LVC132AWBQARQ1 | SN74LVU04ARGYR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

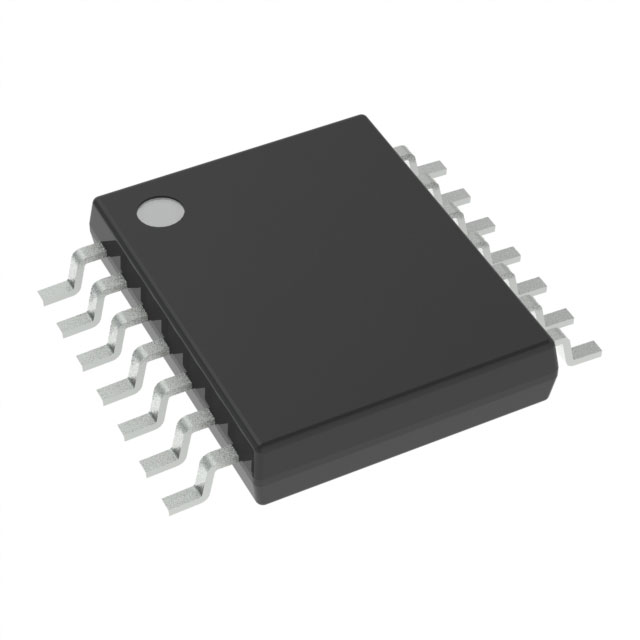

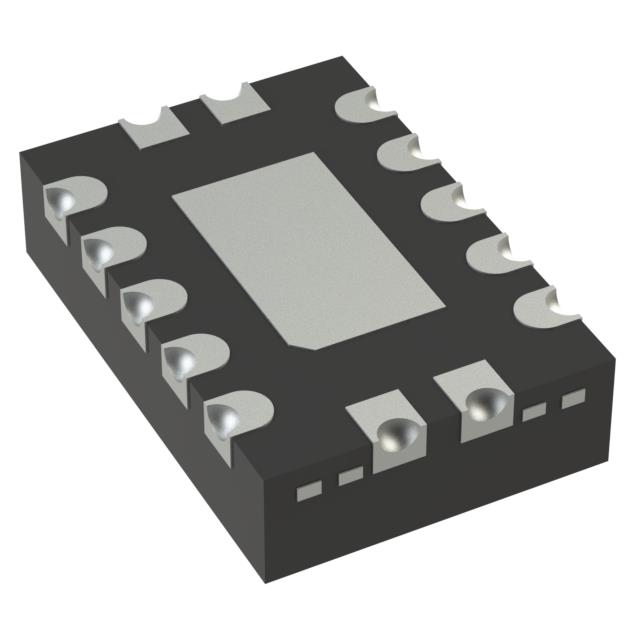

| Description | QUADRUPLE POSITIVE-NAND GATES WI | AUTOMOTIVE QUADRUPLE POSITIVE-NA | AUTOMOTIVE QUADRUPLE POSITIVE-NA | IC INVERTER 6CH 1-INP 14VQFN |
| Series | 74LVC | 74LVC | 74LVC | 74LVU |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
