SN74LVC1GU04YEPR
lmages are for reference only.SN74LVC1GU04YEPR
IC INVERTER 1CH 1-INP 5DSBGA
Datasheet5-XFBGA, DSBGA
38,064 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Inverter IC 1 Channel 5-DSBGA (1.4x0.9)
SN74LVC1GU04YEPR
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Texas Instruments |
| Series | 74LVC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74LVC1GU04 |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 μA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.41V ~ 1.38V |
| Input Logic Level - High | 1.24V ~ 4.13V |
| Max Propagation Delay @ V, Max CL | 3ns @ 5V, 50pF |
| Operating Temperature | -40＜C ~ 85＜C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DSBGA (1.4x0.9) |
| Package / Case | 5-XFBGA, DSBGA |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

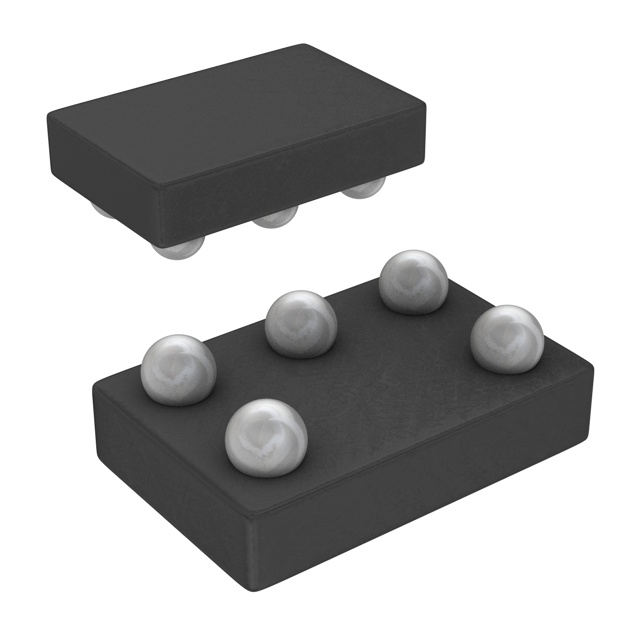

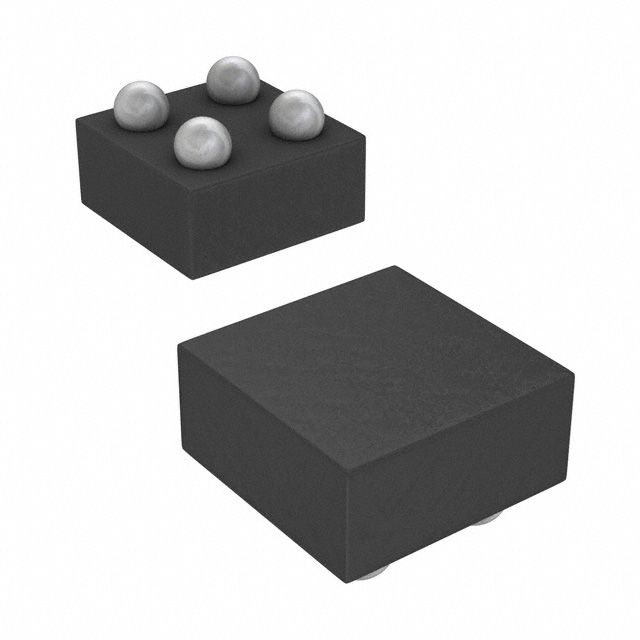

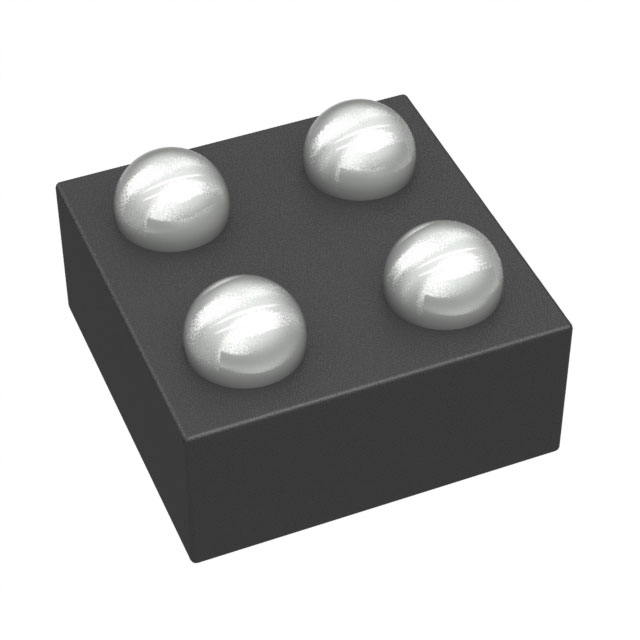

| Part Number | SN74LVC1GU04YEAR | SN74LVC1GU04YZPR | SN74LVC1GU04YZTR | SN74LVC1GU04YZVR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC INVERTER 1CH 1-INP 5DSBGA | IC INVERTER 1CH 1-INP 5DSBGA | IC INVERTER 1CH 1-INP 4DSBGA | IC INVERTER 1CH 1-INP 4DSBGA |
| Series | 74LVC | 74LVC | 74LVC | 74LVC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
