SN74LVC2G38DCTR

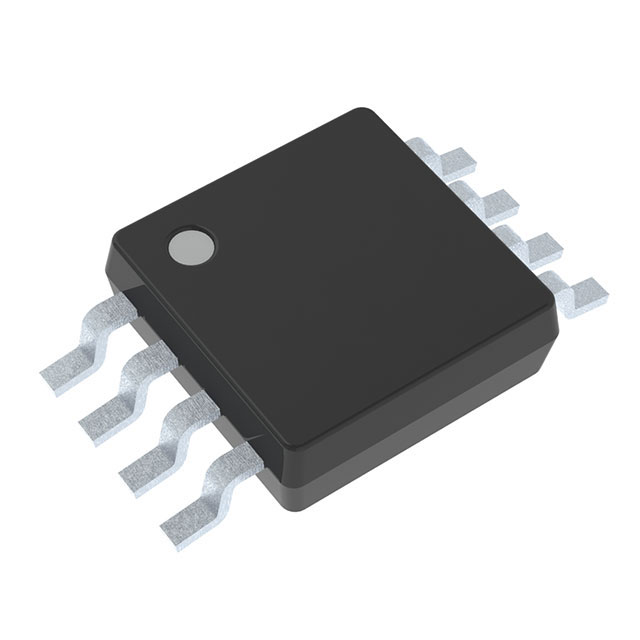

lmages are for reference only.SN74LVC2G38DCTR
IC GATE NAND 2CH 2-INP SM8
Datasheet8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
58,514 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NAND Gate IC 2 Channel Open Drain SM8
SN74LVC2G38DCTR
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Texas Instruments |
| Series | 74LVC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74LVC2G38 |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Open Drain |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 μA |
| Current - Output High, Low | -, 32mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.9ns @ 5V, 50pF |
| Operating Temperature | -40＜C ~ 85＜C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SM8 |
| Package / Case | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SN74LVC2G38DCUR | SN74LVC2G38DCURE4 | SN74LVC2G38DCURG4 | SN74LVC2G38DCUT |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE NAND 2CH 2-INP 8VSSOP | IC GATE NAND 2CH 2-INP 8VSSOP | IC GATE NAND 2CH 2-INP 8VSSOP | IC GATE NAND 2CH 2-INP 8VSSOP |
| Series | 74LVC | 74LVC | 74LVC | 74LVC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
