SSM3K35CT,L3F
lmages are for reference only.SSM3K35CT,L3F
MOSFET N-CH 20V 180MA CST3
DatasheetSC-101, SOT-883
29,336 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 180mA (Ta) 100mW (Ta) Surface Mount CST3
SSM3K35CT,L3F
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 180mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 50mA, 4V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 9.5 pF @ 3 V |
| FET Feature | - |
| Power Dissipation (Max) | 100mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | CST3 |
| Package / Case | SC-101, SOT-883 |
| Base Product Number | SSM3K35 |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

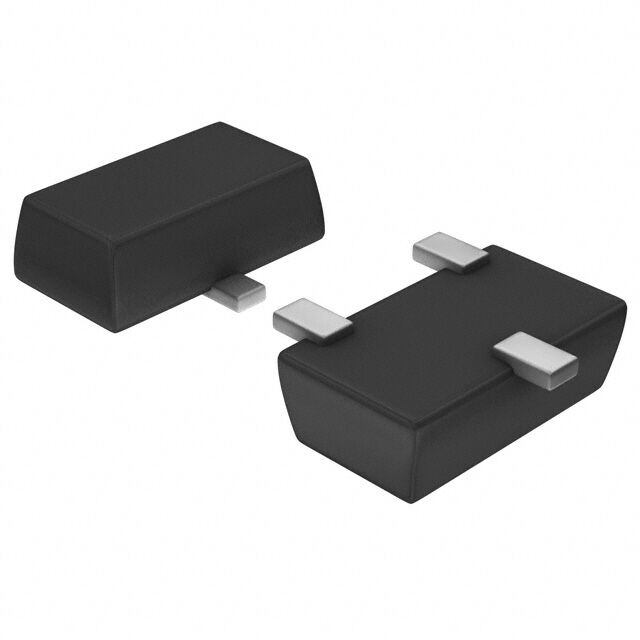

| Part Number | SSM3K357R,LF | SSM3K35AFS,LF | SSM3K35AMFV,L3F | SSM3K35CTC,L3F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 60V 650MA SOT23F | MOSFET N-CHANNEL 20V 250MA SSM | MOSFET N-CH 20V 250MA VESM | MOSFET N-CH 20V 250MA CST3C |
| Series | π-MOSV | U-MOSIII | U-MOSIII | U-MOSIII |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
