TB6562ANG

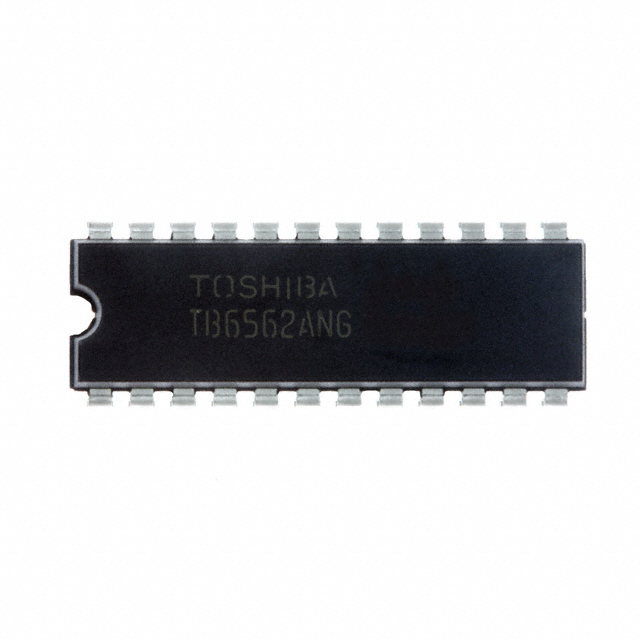

lmages are for reference only.TB6562ANG
IC MTR DRV BIPOLAR 10-34V 24SDIP
Datasheet24-SDIP (0.300", 7.62mm)
22,122 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar Motor Driver DMOS Parallel 24-SDIP
TB6562ANG
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 10V ~ 34V |
| Voltage - Load | 10V ~ 34V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 24-SDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-SDIP |
| Base Product Number | TB6562 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | TB6562ANG | TB6562ANG,8 | TB6562ANG,8 | TB6562AFG,8,EL |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC MTR DRV BIPOLAR 10-34V 24SDIP | IC MTR DRV BIPOLAR 10-34V 24SDIP | IC MTR DRV BIPOLAR 10-34V 24SDIP | IC MTR DRV BIPOLAR 10-34V 30SSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
