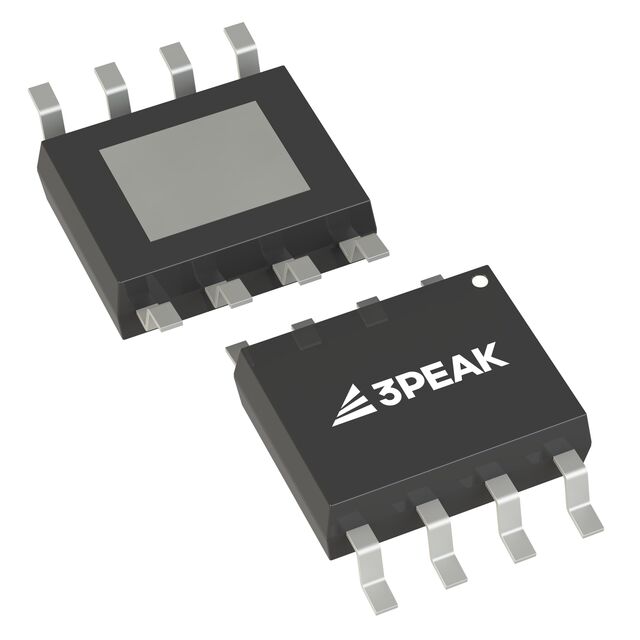

Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 8-ESOP
TPL6305AD-ES1R
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | 3PEAK |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | Adjustable |
| Voltage - Output (Max) | 5.2V |
| Voltage Dropout (Max) | 0.3V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | - |
| PSRR | 63dB (1kHz) |
| Control Features | Shutdown |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-ESOP |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TPL6305AD-ES1R-S | S-19212D50A-V5T2U | MIC37101-2.1YM | LT3063IMS8E#TRPBF |
| Manufacturer | 3PEAK | ABLIC Inc. | Microchip Technology | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR ADJ 3A 8-ESOP | LINEAR IC | IC REG LINEAR 2.1V 1A 8SOIC | IC REG LIN POS ADJ 200MA 8MSOP |
| Series | 3PEAK | ABLIC Inc. | Microchip Technology | Analog Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
