TSM6968DCA RVG

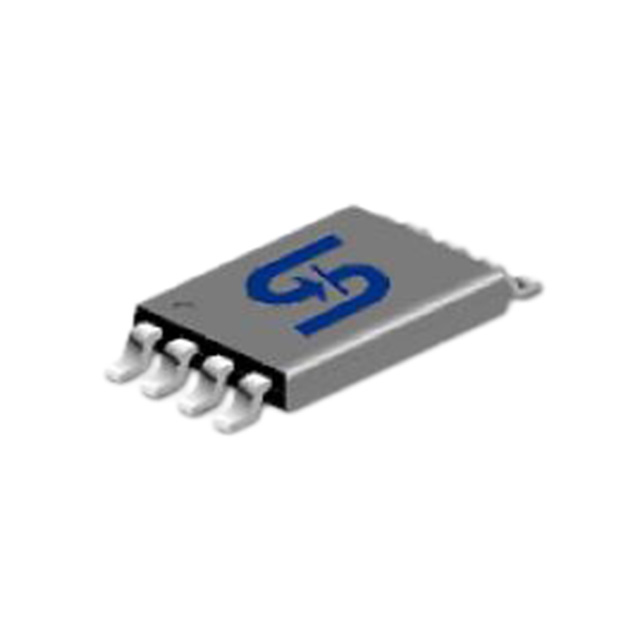

lmages are for reference only.TSM6968DCA RVG
MOSFET 2N-CH 20V 6.5A 8TSSOP
Datasheet8-TSSOP (0.173", 4.40mm Width)
94,621 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 6.5A (Tc) 1.04W Surface Mount 8-TSSOP
TSM6968DCA RVG
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Tc) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 950pF @ 10V |
| Power - Max | 1.04W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | TSM6968 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | TSM6968DCA | TSM6502CR | TSM6502CR RLG | TSM680P06DPQ56 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 20V 6.5A 8TSSOP | MOSFET N/P-CH 60V 24A 8PDFN | MOSFET N/P-CH 60V 24A 8PDFN | MOSFET 2P-CH 60V 12A 8PDFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
