VS-161MT180C
lmages are for reference only.VS-161MT180C
MTC - THREE PHASE BRIDGE
DatasheetModule
54,521 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Three Phase Standard 1.8 kV Chassis Mount
VS-161MT180C
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Three Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1.8 kV |
| Current - Average Rectified (Io) | 257 A |
| Voltage - Forward (Vf) (Max) @ If | 1.85 V @ 300 A |
| Current - Reverse Leakage @ Vr | 12 mA @ 1800 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | VS-161MT |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

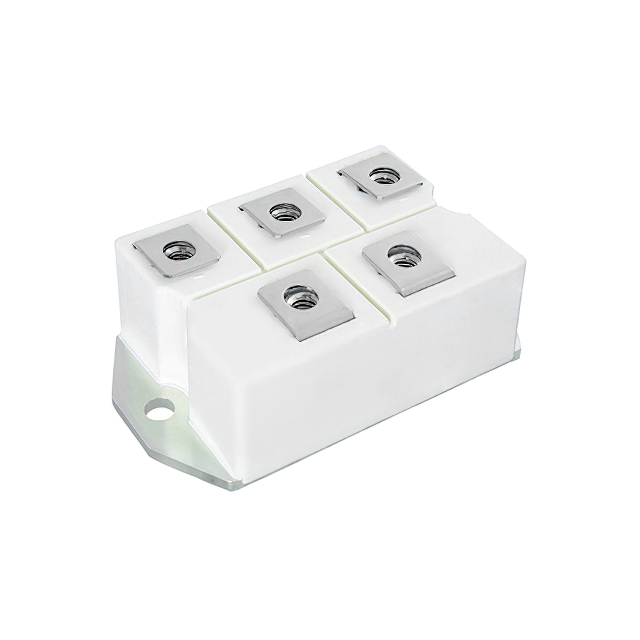

| Part Number | VS-161MT160C | VS-KBPC602PBF | VS-36MB05A | VS-60MT100KPBF |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MTC - THREE PHASE BRIDGE | BRIDGE RECT 1PHASE 200V 6A D-72 | BRIDGE RECT 1PHASE 50V 35A D-34 | BRIDGE RECT 3PHASE 1KV 60A MT-K |
| Series | - | VS-KBPC6 | - | - |
| Packaging | Box | Bulk | Bulk | Tray |
