Guide to The 150 Ohm Resistor and Color Code

Among the wide variety of resistor values, the 150 ohm resistor is a popular and versatile choice use in numerous applications. Resistors are integral components in nearly every electronic circuit, providing control over current flow, protecting sensitive parts, and enabling optimal functionality. In this blog post, we will explore everything you need to know about the resistor 150 ohms, including its types, uses, how to select the right one, and common questions.

1. What is a 150 Ohm Resistor?

2. Types of 150 Ohms Resistor

3. 150 Ohm Resistor Color Code

4. Common Applications of 150 Ohm Resistors

5. Where to Buy 150 Ohm Resistor and Price?

6. Frequently Asked Questions [FAQ]

1. What is a 150 Ohm Resistor?

A 150Ω is an key component in electronic circuits, providing resistance to the flow of electric current. The value of 150-ohms refers to the amount of resistance the component offers when an electrical current passes through it. 150 Ω Resistors use to regulate current, divide voltage, and protect sensitive components by controlling the flow of electricity. In essence, they "limit" or "control" the flow of electricity to ensure that components such as LEDs, transistors, or ICs do not receive more current than they rate for. The resistance value (in ohms) calculate based on the resistor's material, length, and cross-sectional area. By reducing the current that passes through a circuit, resistors can help maintain safety and functionality. The 150-ohm has applications in both low and high-power circuits and is available in various materials, sizes, and power ratings.

2. Types of 150 Ohms Resistor

Package Type: The 150-ohm come in a variety of packages, design for different assembly methods and applications.

150 Ohm Axial Resistor: These have leads extending from both ends, making them easy to insert into holes on a PCB (Printed Circuit Board). They often use in traditional, through-hole applications and can handle more power dissipation than some surface-mount packages.

150 Ohm Radial Resistor: In radial type, leads are bent to form a 180° angle and exit from one side of the body. These are common in applications where require space-saving or ease of assembly. Their mounting method makes them ideal for high-volume production.

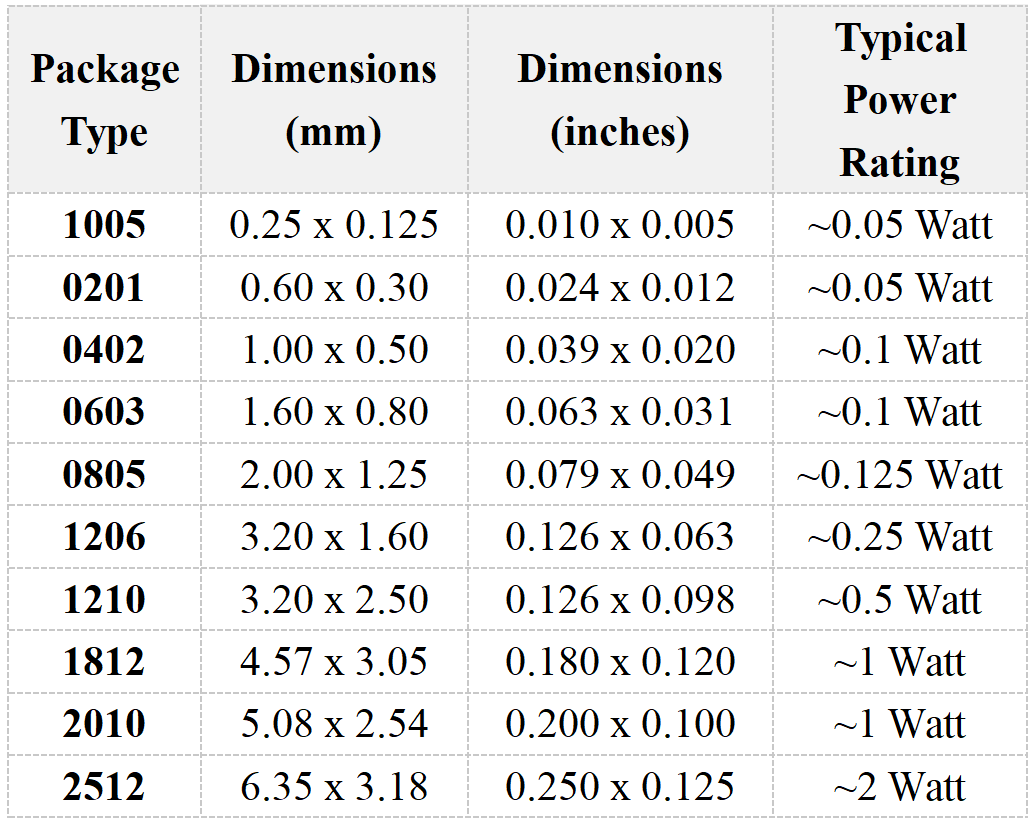

Resistor SMD 150 Ohm: Design to mount directly on the surface of a PCB, making them more compact and suitable for automated manufacturing. For 150 ohm resistors, the following commonly SMD package sizes are :

01005: Ultra-miniature size use for high-density boards.

0201: Another small form factor use in densely packed circuits.

0402: Common in many modern consumer electronics.

0603: Popular for general-purpose low-power circuits.

0805, 1206, 1210: Use in mid-range applications for consumer electronics, power supplies, etc.

1812, 2010, 2512: Larger SMD packages capable of handling higher power dissipation.

Resistor Types: The material use in the construction of a 150-ohm determines its characteristics such as stability, tolerance, power handling capability, and cost. Here are some common types:

Carbon Film: These are inexpensive and easy to manufacture, offering reasonable stability and accuracy. However, their tolerance is relatively higher (often ±5%).

Metal Film: Known for their excellent precision and stability, metal film type commonly use where require higher accuracy. Their tolerance can as low as ±1%.

Metal Oxide Film: These types have superior temperature stability and can handle higher power dissipation compared to carbon film. They often use in industrial applications.

Thick Film: Make by applying a conductive film on a ceramic substrate. They commonly find in SMD packages and offer good cost-effectiveness for mid-range applications.

150 Ohm Resistor Wirewound: Make by winding a metal wire around a ceramic or fiberglass core. They can handle higher power levels, making them ideal for power supply circuits, amplifiers, and motor controllers.

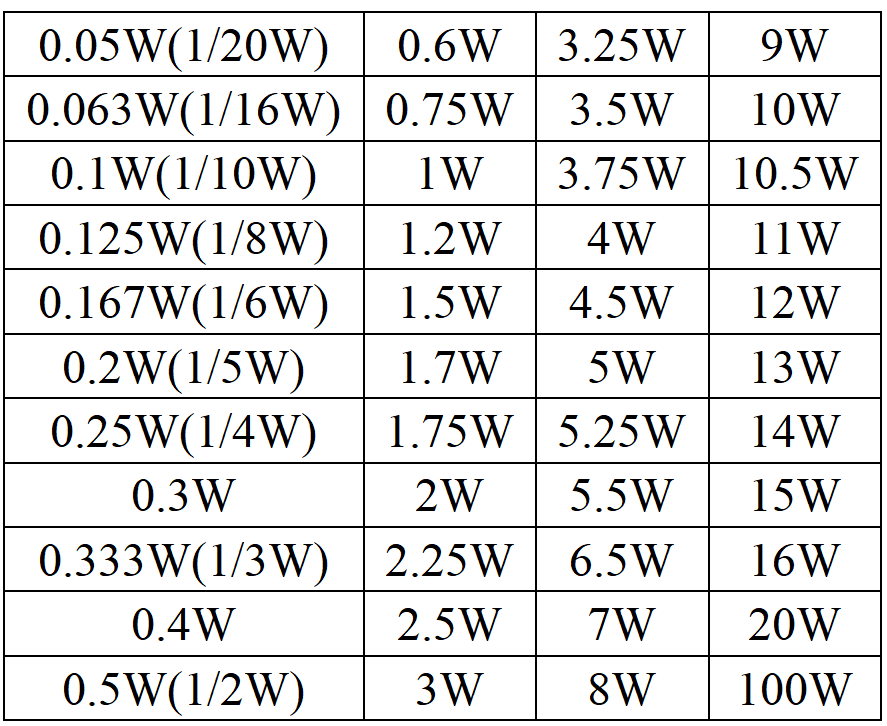

The power rating of a resistor indicates how much wattage it can safely dissipate without overheating. The 150-ohms comes in various power ratings, making it versatile for different applications:

150 Ohm 1/4 Watt Resistor

A standard small type with a low power ratings. Use in low-power circuits for signal conditioning, limiting current to LEDs, and as pull-up or pull-down resistors in digital circuits. Can dissipate up to 0.25 W of power, which is typically adequate for small signals or low-power components.

150 Ohm 1/2 Watt Resistor

Offer a bit more power handling than the 1/4W version, making it suitable for applications with higher current but still within relatively low-power circuits. Widely use in signal processing, feedback loops, and biasing circuits, as well as current-limiting in medium-power applications.

150 ohm 1 watt resistor

The 1W version can handle significantly more power, making it ideal for moderate powering dissipation needs. 1watt commonly use in power supply designs, voltage dividers, and to dissipate power in small motor or electronic control circuits. It can safely handle currents up to about 81.6 mA at 12.25 V.

1.5 Watt 150 Ohm Resistor

Can handle more power dissipation, suitable for moderate to high-power applications. With a higher power ratings, use in applications where the resistor needs to handle heat dissipation in circuits with more significant loads, such as small power supplies or motor control circuits.

Resistor 150 Ohm 2 Watt

The 2 W version provides increased power handling, making it ideal for situations where the component must handle higher currents or act as part of a voltage dropper for larger systems. Use in high-precision circuits, load banks, and current-limiting applications for small motors or test equipment.

150 Ohm 5 Watt Resistor

The 5W is larger in size and design for more demanding applications requiring significant power dissipation. Use in high-power circuits where heat generation is a concern. They also typically in wirewound or ceramic body types to handle the heat efficiently.

150 Ohm 10 Watt Resistor

With the ability to dissipate up to 10W of power, use for heavy-duty applications, such as dummy loads, power supply circuits, or systems with high current requirements. 10 W require good heat sinking and often house in aluminum or ceramic enclosures to dissipate the heat effectively.

150 Ohm 100 Watt Resistor

The 100 W is a high-power component design for extremely demanding applications. Often use in industrial settings, such as power test equipment, load banks, and energy dissipating systems where significant heat must absorb and manage.

These resistors primarily use for current-limiting, voltage division, or power dissipation in various electronics. As the power rating increases, the physical size also increases, and heat dissipation becomes more important. Always ensure that circuit operate within their power ratings to prevent overheating or damage to surrounding components.

3. 150 Ohm Resistor Color Code

The colour coding on a 150-ohm helps identify its resistance value and tolerance. The code consists of colored bands, each representing a specific value.

150 Ohms Color Code 4 Band:

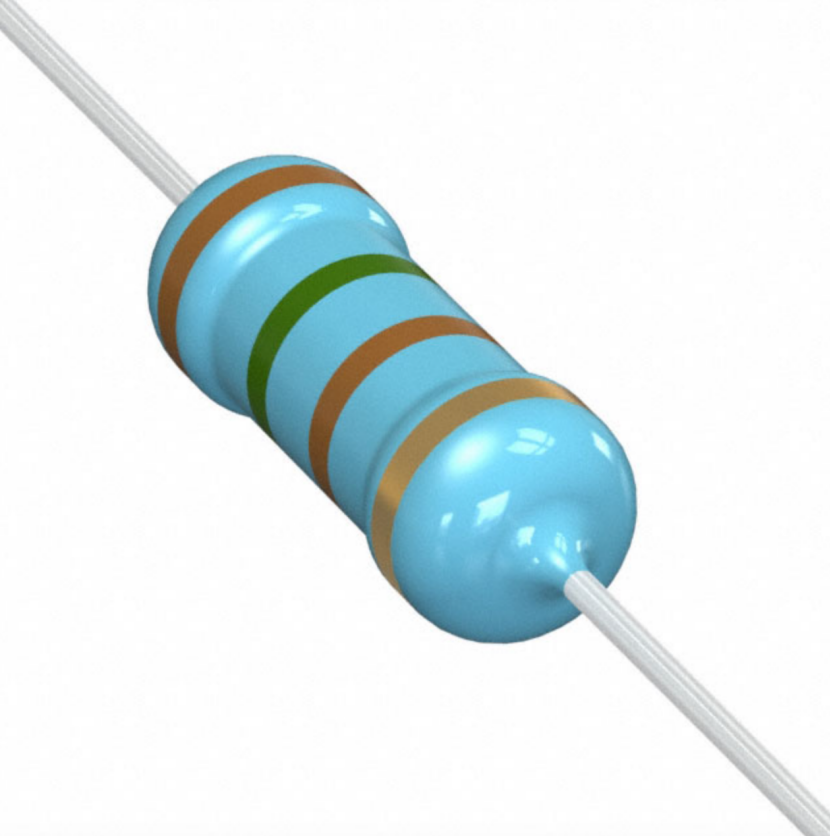

Brown-Green-Brown-Yellow Explanation:

1^st-Band (Brown): Represents the first-digit 1.

2^nd-Band (Green): Represents the second-digit 5.

3^rd-Band (Brown): The multiplier is ×10, meaning the number formed by the first two digits multiply by 10.

4^th-Band (Yellow): The tolerance is ±5%, indicating the resistance range by 5% from the nominal value.

150 Ohm Resistor Color Code 5 Band:

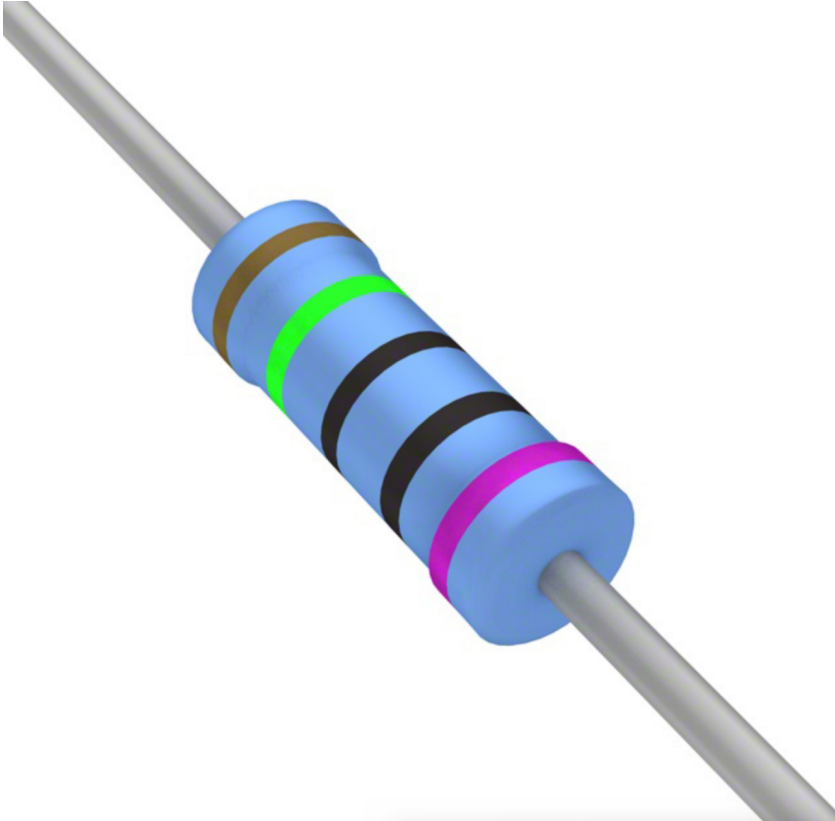

Brown-Green-Black-Black-Brown Explanation:

1^st-Band (Brown): Represents the first digit 1.

2^nd-Band (Green): Represents the second digit 5.

3^rd-Band (Black): Represents the third digit 0.

4^th-Band (Black): The multiplier is ×1, so no change in value.

5^th-Band (Brown): The tolerance is ±1%, meaning the actual resistance can vary by 1%.

150 Ω Resistor Color Code 6 Band:

The 6th band represents the Temperature Coefficient (ppm/°C) and often Brown (100 ppm/°C) for standard commercial resistors.

(Brown-Green-Black-Black-Brown-Brown):

Explanation:

1^st~3rd Bands (Brown-Green-Black): Represent the value 150.

4^th-Band (Black): Multiplier of ×1, so the value remains 150Ω.

5^th-Band (Brown): Tolerance of ±1%, meaning the actual resistance can vary by 1%.

6^th-Band (Brown): 100 ppm/°C temperature coefficient, indicating that for every degree Celsius change in temperature, the resistor's value can change by 100 parts per million (ppm).

This is the most common configuration for precision resistors with a 1% tolerance and 100 ppm/°C temperature stability.

Comparison for the 4-band, 5-band, and 6-band color codes

The 4-band, 5-band, and 6-band resistor colour codes use to represent the resistance value, tolerance, and, in some cases, the temperature coefficient. Here’s a breakdown of the key differences between them:

The 4-band color code consists of three bands for value and one band for tolerance. The first two bands represent the first two digits of the resistor's value, while the third band represents the multiplier (e.g., ×10). The fourth band represents the tolerance (e.g., ±1%, ±5%). This is the most common color code use for general-purpose resistors in various circuits.

The 5-band colors coding adds an extra band for increased precision. The first three bands represent the first three digits of the resistor's value, allowing for more precise resistance values. The fourth band is the multiplier (e.g., ×1), and the fifth band represents the tolerance (e.g., ±1%, ±5%). This code commonly use for circuits requiring higher precision, such as metal film types.

The 6-band colour codes is similar to the 5-band but adds a temperature coefficient band for precision in high-accuracy applications. The first three bands represent the first three digits of the resistor's value, the fourth band is the multiplier, and the fifth band indicates tolerance. The sixth band represents the temperature coefficient (measured in ppm/°C), which indicates how the resistor’s value will change with temperature. The 6-band code use in applications where require high precision and stability.

4. Common Applications of 150 Ohm Resistors

The 150 Ω commonly use in various electronic circuits for a wide range of applications.

In LED circuits, a 150Ω use in series with the LED to limit the current and prevent it from burning out. Based on the voltage supply and the LED's forward voltage (usually around 2V), a 150ohm ensures that the current stays within the desired range, typically around 20 mA for a standard LED.

Use a 150 ohms in voltage divider circuits to reduce the input voltage to a desired lower voltage for other components such as microcontrollers or sensors. The 150-ohm pair with another resistor to create a voltage divider that scales down a voltage for analog input to a microcontroller or other devices. The value of the circuit choose depending on the input voltage and the desired output voltage ratio.

In biasing circuits, a 150 Ω can use to set the operating point of active devices like transistors or operational amplifiers. By controlling the bias current, it ensures that the amplifier or transistor operates efficiently and within its specified limits. Select 150 Ω based on the required biasing conditions for the device.

In signal conditioning circuits, a 150-Ω can use for filtering, attenuation, or current limiting. For example, can use in RC filters to set the cutoff frequency or in attenuator networks to adjust signal levels.

A 150 ohms can use for current sensing applications in circuits where require precise current measurement. By placing the resistor in series with the load, the voltage drop across it can measure to calculate the current flowing through the circuit.

In motor driver circuits, a 150 Ω can use to protect the driver from excessive current draw or to limit current to the motor windings. This prevents damage to the driver and the motor by ensuring that the current stays within safe operating limits.

In power supply circuits, can use as part of the filtering network to smooth out fluctuations in voltage. They help to reduce noise and maintain a steady output voltage in systems that require clean power, such as sensitive analog circuits.

These applications highlight how the 150-Ω use in a variety of circuits to ensure proper operation, protect components, and maintain the functionality of electronic systems.

5. Where to Buy 150 Ohm Resistor and Price?

You can buy 150Ω resistors from Orwintech Electronics either through their website or by contacting their sales team directly for pricing and availability. They typically offer a range of resistor types, including through-hole and SMD packages, in different power ratings. If you need help finding specific options or placing an order, we can assist you with that too!

Here’s a example price list for 150Ω , based on typical factors such as resistor type, power rating, and quantity. Prices may vary depending on the supplier, region, and whether you're purchasing in bulk or as individual units.

Carbon Film are usually the economy option, typically use in general-purpose circuits. Metal Film are more precise and often use in applications that require more accuracy. Wirewound better suite for higher power dissipation. SMD types are popular for surface-mount applications and come in small packages. High-Power Resistors (5W or 10W) use for power dissipation in more demanding applications, and they are generally more expensive.

6. Frequently Asked Questions [FAQ]

1. What color is a 150 ohm resistor?

A 150Ω typically has a brown-green-brown-yellow colour codes for a 4-band type, or brown-green-black-black-brown for a 5-band-resistor. In these colors coding, brown represents 1, green represents 5, and brown or black acts as the multiplier (×10 for the 4-band, and ×1 for the 5-band). The yellow band in the 4-band code represents ±5% tolerance, while brown in the 5-band indicates ±1% tolerance. The 6-band color code also include temperature coefficient bands.

2. What is the use of 150 ohm resistor?

A 150-Ω primarily use in current-limiting applications, especially for LED circuits to prevent excessive current flow that could damage the LED. Also use in voltage divider networks to reduce the voltage, in biasing circuits to set the operating point for transistors or amplifiers, and for signal conditioning to filter or attenuate signals. Can find in power supply circuits to protect sensitive components from current surges and maintain stable operation.

3. What can I use instead of a 150 ohm resistor?

Instead of a 150Ω , you can use a 220Ω or 100Ω resistor, but the exact replacement depends on the application. For LED circuits, if use a higher resistance, it will limit the current even more, making the LED dimmer. Conversely, a lower value resistor such as 100Ω will allow more current and may cause the LED to burn out faster. It's important to adjust the resistance value based on the specific supply voltage and LED forward voltage.

4. What resistor to use with LED?

For LED circuits, you can use a resistor to limit the current flowing through the LED. A typical value for a 5V supply with a 2V LED is around 150Ω, ensuring the current stays around 20 mA. The circuit prevents excessive current that could damage the LED or other components. To calculate the correct resistor value, use Ohm’s law: R = (V_supply - V_LED) / I where V_supply is the power supply voltage, V_LED is the LED’s forward voltage, and I is the desired current.

5. Can a circuit work without a resistor?

A circuit can technically work without a resistor, but it's usually not advisable, especially in current-sensitive components such as LEDs, transistors, or ICs. Without resistors, there is no way to limit the current, which can lead to components being overloaded, overheated, or damaged because excessive current. Resistors are necessary in current-limiting, voltage division, and signal conditioning, ensuring safe operation. In circuits where current regulation is essential, not using resistors can result in circuit failure or degradation of components.

In conclusion, the 150 ohm resistor is an key component in a wide range of electronic applications, offering reliable current control and protection for sensitive components. Its common use in LED circuits, voltage dividers, and biasing circuits makes it a versatile choice for both hobbyists and professionals. The resistor's ability to limit current helps prevent damage to delicate parts, ensuring the longevity and stability of electronic systems. Whether you’re designing low-power circuits or optimizing power supply systems, understanding the role and selection of a 150Ω is necessary for achieving optimal performance and reliability in your projects.
