5-0SMDJ15A

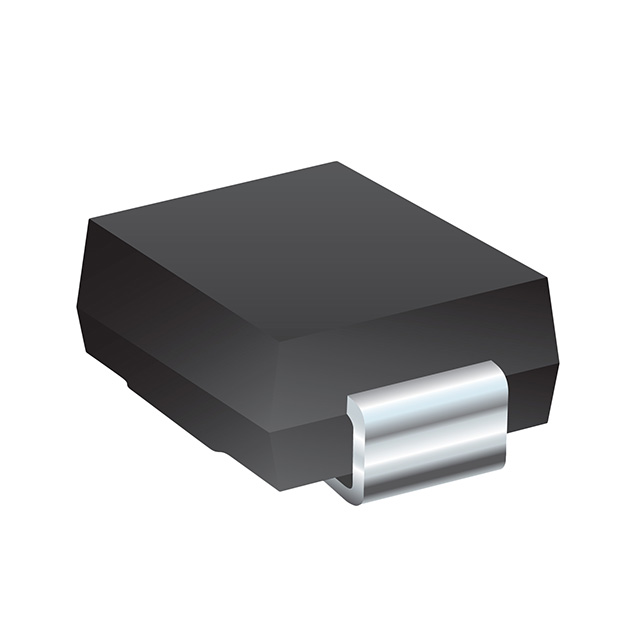

lmages are for reference only.5-0SMDJ15A
TVS DIODE 15VWM 24.4VC SMC
DatasheetDO-214AB, SMC
71,318 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.4V Clamp 205A Ipp Tvs Diode Surface Mount SMC
5-0SMDJ15A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | 5-0SMDJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 15V |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 24.4V |
| Current - Peak Pulse (10/1000µs) | 205A |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 5-0SMDJ150A | 5-0SMDJ150CA | 5-0SMDJ15AH | 5-0SMDJ15CA |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | TVS DIODE 150VWM 243VC SMC | TVS DIODE 150VWM 243VC SMC | TVS DIODE 15VWM 24.4VC UNI | TVS DIODE 15VWM 24.4VC SMC |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
