Product CatalogPart Number

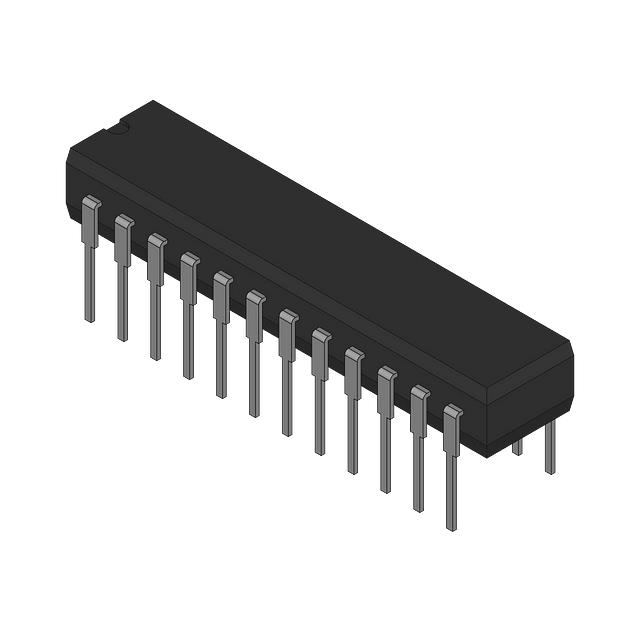

UC1823BJ883B
Manufacturer
Texas InstrumentsDescription
SWITCHING CONTROLLER
Datasheet
DatasheetPackage
16-CDIP (0.300", 7.62mm)
In Stock
97,301 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UC1823BJ883B
UC1823BJ883B
lmages are for reference only.Payment Methods
Delivery Services
Boost, Buck, Flyback, Forward Converter Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-CDIP
Quick Inquiry
UC1823BJ883B
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Buck, Flyback, Forward Converter |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 22V |
| Frequency - Switching | 400kHz ~ 1MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |
| Base Product Number | UC1823 |
| Grade | - |
| Qualification | - |
