AO3401 Transistor : Pinout, Specifications and Equivalents

AO3401 is a compact P-channel MOSFET widely used in modern electronic circuits for efficient power switching and load control. In today’s designs, where space savings and energy efficiency are critical, small surface-mount MOSFETs such as the AO 3401 provide a reliable solution for portable devices, embedded systems, and power management applications.

Built using advanced trench technology, the AO 3401 offers low RDS(on), fast switching performance, and operation with gate voltages as low as 2.5V. These characteristics help reduce power loss, minimize heat generation, and improve overall system efficiency. Its tiny SOT-23 package allows designers to conserve PCB space while maintaining dependable electrical performance.

This guide explores the AO 3401 in detail, including its pinout, features, specifications, equivalents, and practical applications to help you use it effectively in your circuit designs.

1. What is AO3401?

2. AO3401 Transistor Pinout and Circuit Diagram

3. AO3401 Circuit Features

4. AO3401 MOSFET Technical Specifications

5. AO3401 Equivalent & Alternatives

6. AO3401 A19T Power Circuits

7. AO3401 Application

8. AO3401 vs AO3401A

9. Frequently Asked Questions [FAQ]

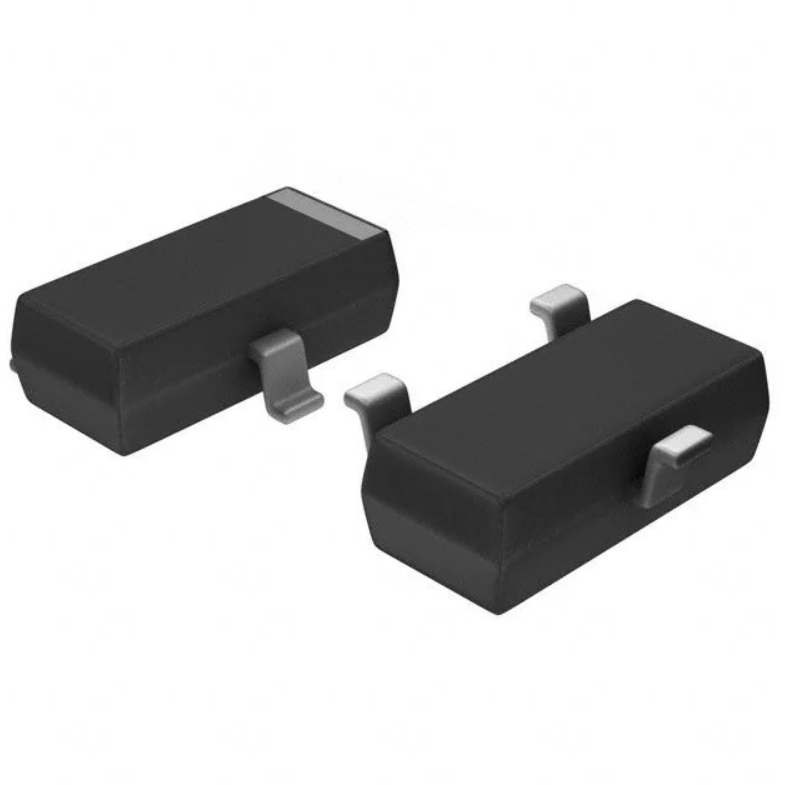

What is AO3401?

The AO 3401 is a P-channel enhancement-mode MOSFET built using advanced trench technology to provide excellent low RDS(ON), low gate charge, and reliable operation with gate drive voltages as low as 2.5V. These characteristics allow efficient switching while minimizing power loss and heat generation.

This device is well suited for load switching and PWM applications, where fast response and efficiency are important.

The transistor features a drain-source voltage rating of 30V, continuous drain current of 4A (Ta), and power dissipation of 1.4W (Ta). It requires only a low gate drive voltage, making it compatible with logic-level control signals. The device house in a compact SOT-23-3 surface-mount package, enabling space-saving PCB layouts.

Because of its small size and efficient performance, widely use the AO 3401 in portable electronics, power management circuits, and DC power switching designs.

AO3401 Transistor Pinout and Circuit Diagram

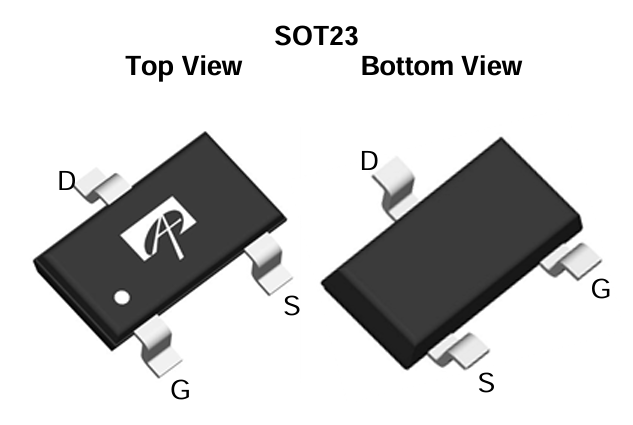

Pin Configuration

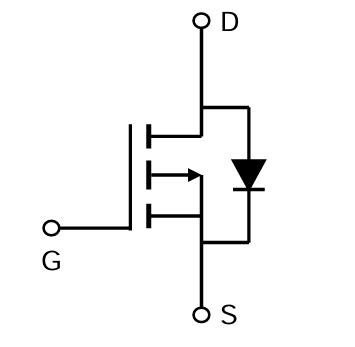

Basic Circuit Diagram

AO3401 Circuit Features

Fast Switching

Supports high-speed switching, making it suitable for PWM and power control applications while reducing switching losses.

High Density Cell Design for Low RDS(on)

The trench cell structure provides low RDS(on), minimizing conduction loss and improving efficiency.

Material: Halogen Free

Manufactured with halogen-free materials to meet modern environmental standards.

Reliable and Rugged

Designed for stable and dependable operation in various electronic circuits.

Avalanche Rated

Can withstand brief voltage spikes from inductive loads, improving durability.

Low Leakage Current

Reduces power loss in the off state, enhancing efficiency in battery-powered devices.

AO3401 MOSFET Technical Specifications

Manufacturer of AO3401

The AO 3401 manufacture by Alpha and Omega Semiconductor, a company specializing in high-performance power semiconductors, including MOSFETs, power ICs, and discrete components for consumer, computing, and industrial applications.

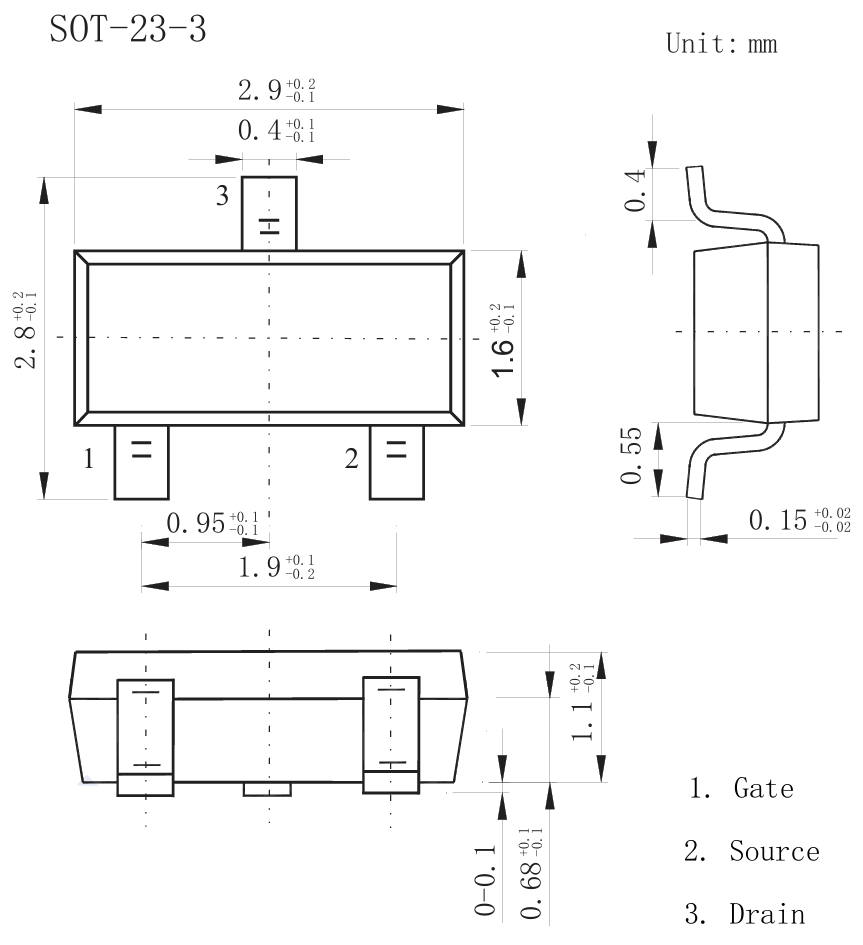

AO3401 Dimensions (SOT-23)

Length: ~2.9 mm

Width: ~1.6 mm

Height: ~1.1 mm

AO3401 Equivalent & Alternatives

If the AO3401 is unavailable, there are several alternative MOSFETs that can use as substitutes.

Alternatives of AO 3401:

AO3400 - N-Channel MOSFET, 30V, 5.8A, SOT-23-3
AO3400A - N-Channel MOSFET, 30V, 5.7A, SOT-23-3L
AO3401A - P-Channel MOSFET, 30V, 4A, SOT-23-3
AO3415 - P-Channel MOSFET, 20V, 4A, SOT-23-3L

When choosing an equivalent, always verify the channel type, RDS(on), and voltage/current ratings to ensure compatibility with your circuit.

AO3401 A19T Power Circuits

The AO 3401 is widely used in various power circuit designs because its low RDS(on), fast switching, and compact SOT-23 package.

High-Side Load Switching

A03401 can act as a high-side switch to control power delivery to loads efficiently. When the gate is pulled low, the MOSFET turns on, supplying voltage to the load.

Battery Protection Circuits

Use to prevent reverse current flow in battery-powered devices, ensuring safety and protecting sensitive components.

DC Power Distribution

AO 3401 helps manage power paths in portable electronics and embedded systems, distributing power to different modules without significant loss.

PWM Power Control

Its fast switching capability makes it ideal for pulse-width modulation (PWM) circuits, enabling efficient power regulation and control in DC/DC converters and motor driver applications.

AO3401 Application

The transistor is a versatile P-channel MOSFET used in a variety of electronic applications.

PWM Applications

Its fast switching speed and low gate charge make it ideal for pulse-width modulation circuits, enabling efficient control of power delivery.

Load Switch

Commonly use as a load switch to turn power on or off to different parts of a circuit with minimal voltage drop.

Power Management in Portable/Desktop PCs

It helps manage power distribution in laptops, desktops, and other portable devices, improving efficiency and reducing heat generation.

DC/DC Conversion

Use in DC/DC converter circuits for efficient voltage regulation, providing reliable switching with low power loss.

AO3401 vs AO3401A

The AO3401 and AO3401A are both P-Channel MOSFETs with similar voltage and current ratings, but the AO3401A offers improved switching performance and lower on-resistance. The table below summarizes their differences:

Key Difference: AO3401A has lower RDS(on) and reduced gate charge, making it more efficient in high-speed switching and power-sensitive applications. The AO 3401 has slightly higher RDS(on) and gate charge but is otherwise electrically similar.

AO3401 Datasheet PDF

To view complete electrical characteristics and curves, download the datasheet.

Frequently Asked Questions [FAQ]

What is the Difference Between AO3407 and AO3401?

AO3407 is a P-channel MOSFET with higher current capacity and lower RDS(on), suitable for heavier loads. AO 3401 is optimized for compact, low-power circuits. Both share similar gate drive requirements and surface-mount packaging but differ in efficiency and load handling.

What Does AO Mean in SMD Field-effect Tube AO3401?

“AO” indicates the manufacturer series from Alpha and Omega Semiconductor. It identifies the MOSFET as part of their product line, distinguishing it from other manufacturers and signaling that the device design for high-performance switching and power management applications.

What Do 3 and 4 Mean in AO3401?

The numbers “3” and “4” are internal series codes used by the manufacturer to classify device characteristics, performance class, and packaging type. They help engineers differentiate this MOSFET from other parts in the AO product line when selecting suitable components.

What is AO3401A SOT-23?

AO3401A is an improved P-channel MOSFET variant of AO 3401 with lower RDS(on) and reduced gate charge for faster switching. Packaged in a SOT-23 surface-mount, it is suitable for compact PCBs, load switching, and PWM applications.

What is the gate voltage of AO3401?

AO3401 can be fully switched on with a gate voltage as low as 2.5V, compatible with logic-level signals. Its maximum gate-source voltage is ±12V, ensuring safe operation while maintaining efficient conduction and fast switching in low-voltage circuits.

What does SOT-23 stand for?

SOT-23 stands for Small Outline Transistor, a compact surface-mount package used for discrete transistors and MOSFETs. It saves PCB space while supporting moderate power dissipation, making it ideal for portable electronics, power management, and compact switching circuits.

Conclusion

The AO3401 P-channel MOSFET is a reliable and efficient switching device ideal for load switching, PWM control, and portable power management. Its low RDS(on), low gate charge, and compact SOT-23 package make it a strong choice for space-constrained and battery-powered designs.

Whether you're designing a DC/DC converter, battery protection circuit, or embedded system, the AO 3401 provides dependable performance with minimal power loss.
