Complete Guide to the 33 Ohm Resistor

Among the many available resistance values, the 33 ohm resistor serves specific roles in both analog and digital circuits. Resistors are necessary components in electronics, use to limit current, divide voltage, and protect sensitive devices. This guide dives deep into everything you need to know about the 33Ω resistor—from colour codes and types to selection tips and practical uses.

1. What is a 33 Ohm Resistor?

2. Types of 33 Ohm Resistors

3. 33 Ohm Resistor Color Code

4. Common Applications of 33 Ohms Resistor

5. Selecting The Right Resistor 33 Ohm

6. 33 Ohm Resistors in Series And Parallel

7. 33 Ohm Resistor Price And Where to Buy ?

8. Frequently Asked Questions

1. What is a 33 Ohm Resistor?

A 33-ohm is an electrical component with a fixed resistance of 33 Ω, which limits the flow of electric current to a specific value. A low-value resistor, meaning it allows a moderate amount of current to pass through while still offering some resistance.

Ohm's Law (V = IR) explains its function: if you apply a voltage of 3.3V across a 33Ω resistors, the current will be 0.1A (100mA). This makes it suitable for applications requiring current control in low-impedance circuits. 33-ohms widely use in electronic circuits for current limiting, voltage division, biasing transistors, and protecting components such as LEDs.

2. Types of 33 Ohm Resistors

Axial Lead Resistors:

Metal Film Resistors make using a thin layer of nickel-chromium deposited on an insulating substrate. They typically have tolerances of ±1%, ±2%, or ±5% and low temperature coefficients ranging from ±50 to ±100 ppm/°C. Their power ratings generally range from 0.125W to 2W. These resistors are known for their high precision, low noise, and excellent long-term stability. They commonly use in precision circuits, measurement instruments, and high-quality audio equipment.

Carbon Film Resistors generally have a tolerance of ±5% and a higher temperature coefficient, often between ±100 and ±250 ppm/°C. The typical power rating is 0.125W to 0.5W. While they are less accurate than metal film types and produce more noise, they are cost-effective and widely use in general-purpose electronic devices, such as power supplies and consumer electronics.

Metal Oxide Film Resistors use a ceramic core with a film of metal-oxide. Usually offer tolerances of ±1% to ±5% and moderate temperature coefficients around ±100 ppm/°C. Power ratings typically range from 0.25W to 2W. More heat-resistant and flame-retardant than carbon or metal film types. They're suitable for high-temperature applications, including power circuits and industrial electronics.

Wirewound Resistors make by winding a metal wire, typically nichrome, around a ceramic core. They have more precise resistance values with tolerances between ±1% and ±5%, and low to moderate temperature coefficients from ±50 to ±100 ppm/°C. Power ratings can range from 1W up to 100W or more. Ideal for high-power applications, offering excellent stability and the ability to handle large currents. Common uses include motor control, power amplifiers, and industrial machinery.

Thick Film Resistors create by screen-printing a resistive paste onto a ceramic base. They have wide tolerance ranges, typically from ±1% to ±20%, and high temperature coefficients around ±200 to ±300 ppm/°C. Power ratings range from 0.1W to 2W. These types are inexpensive and well-suited for mass production. They commonly use in consumer electronics, automotive circuits, and sensors where ultra-precision is not require.

Each type has distinct advantages depending on application needs such as precision, cost, heat resistance, or power handling.

33 Ohm SMD Resistor (Surface Mount Device)

A compact surface-mounted type with a fixed resistance value of 33-ohms. Follow Ohm’s Law and use to limit current, divide voltage, terminate signals, or bias components. The same resistance value is available across multiple SMD sizes, each suited to different current, voltage, and power handling requirements.

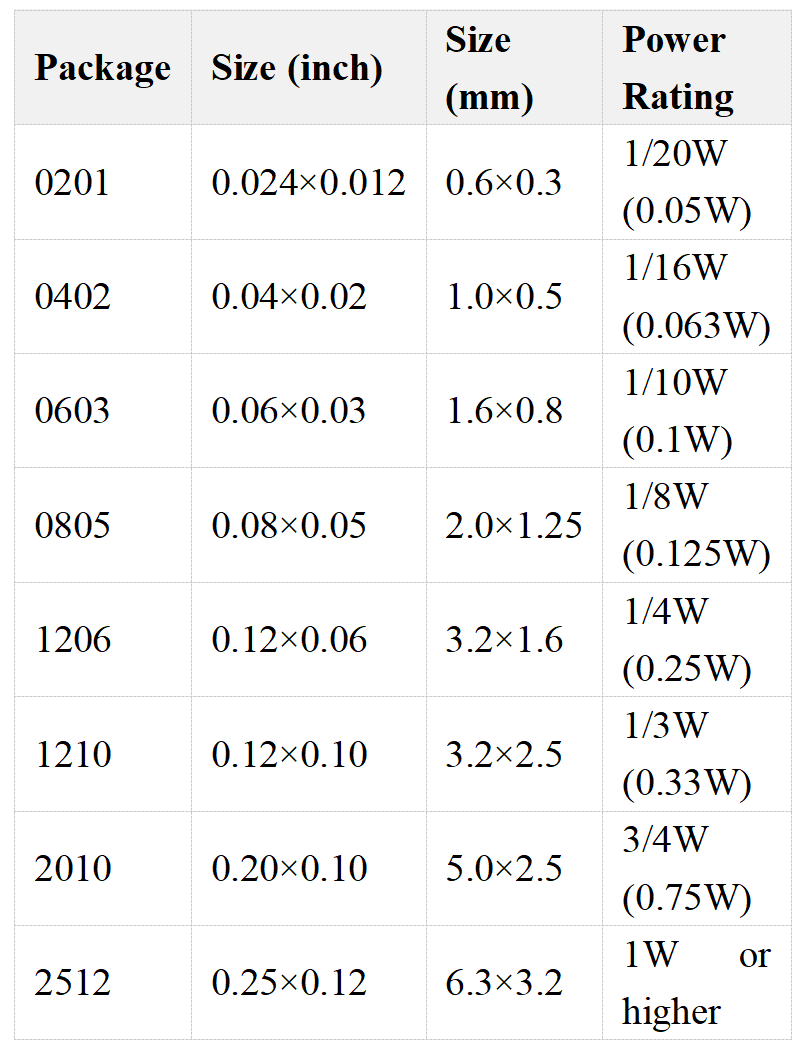

All these packages can house a 33-ohm, but the physical size determines power handling, heat dissipation, and voltage rating. Smaller sizes like 0201 or 0402 are for space-critical, low-power circuits, while 2512 is suitable for high-power applications like power supplies or load regulation.

When choosing a 33 ohms SMD resistor, always consider:

Power rating (W), tolerance (e.g., ±1%, ±5%), temperature coefficient (ppm/°C) and environmental conditions (e.g., automotive, industrial).

3. 33 Ohm Resistor Color Code

4-Band Colour Coding (±5% tolerance):

Orange – Orange – Black – Gold

To read the 4 banding colors codes for a 33 Ω, follow these steps:

First-Band: The first-digit, color Orange corresponds to the number 3. Second-Band: The second-digit, colour Orange again corresponds to the number 3. Third-Band: The multiplier, color Black corresponds to a multiplier of x1. Fourth-Band: The tolerance, color Gold indicates a tolerance of ±5%, meaning the actual resistance can vary by 5% above or below the nominal value. Putting it together:

First-digit: 3~Second-digit: 3~Multiplier: x1. So, 33 × 1 = 33 ohms. Tolerance: ±5%, meaning the resistance can range from 31.35ohms to 34.65ohms.

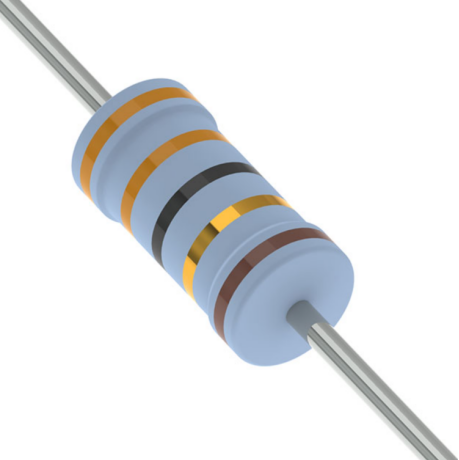

33 Ohm Resistor Color Code 5 Band:

Orange – Orange – Black – Gold – Gold

Here’s how to read it:

1^st-Band (Orange): The first-digit is 3. 2^nd-Band (Orange): The second-digit is 3. 3^rd-Band (Black): The third-digit is 0. 4^th-Band (Gold): The multiplier is ×0.1, so you multiply the first three digits (330) by 0.1. 3 3 0 × 0.1 = 33Ω. 5^th-Band (Gold): The tolerance is ±5%. So, the value is 33 ohms with a tolerance of ±5%.

Difference:

4-band: Uses just two digits for value (33) and a multiplier (×1), leading to a straightforward resistance value.

5-band: Adds a digit (0) and uses a more refined multiplier (×0.1), allowing for a greater range of values or more precise resistance values.

So the 5-band gives more detailed control over the resistance value, typically use for more precise and higher tolerance type.

4. Common Applications of 33 Ohms Resistor

33ohm have a range of practical applications, thanks to their versatile resistance value. Here are some common uses:

1. Current Limiting for LEDs

Purpose: Use in series with LEDs to limit the current flowing through them, preventing damage because excessive current.

Use: For standard red, green, or blue LEDs, use a 33-ohm, depending on the forward voltage and desired current.

2. Voltage Dividers

Purpose: The 33-ohm-resistor is part of a voltage divider circuit, which use to produce a desired output voltage that is a fraction of the input voltage.

Use: This can use in signal conditioning, sensor interfaces, or to scale down voltages for measurement purposes.

3. Biasing Circuits

Purpose: Used in biasing networks for transistors, ensuring that the transistor operates within its optimal operating point.

Use: In amplifier circuits, where need precise biasing maintain signal amplification.

4. Audio Circuits

Purpose: Audio circuits, including equalizers, amplifiers, and tone control circuits, often use resistors to manage signal levels.

Use: 33-ohm is part of filters or use in combination with capacitors to shape audio frequencies.

5. Power Supply Filters

Purpose: Use 33-ohm in power supply filtering circuits to reduce ripple in the output voltage and stabilize the power supply.

Use: Help in damping oscillations in power supply outputs.

6. Oscillator Circuits

Purpose: In oscillator circuits, use the 33ohm to control the timing and frequency of oscillations.

Use: Part of RC (Resistor-Capacitor) oscillators for generating periodic signals.

7. Load Resistors in Testing

Purpose: Used as a dummy load in testing power supplies, amplifiers, or other electronic components.

Use: Ensuring that the circuit behaves as expected under load conditions.

8. Motor Speed Controllers

Purpose: In circuits that control the speed of small DC motors, use 33ohm to regulate current.

Use: Adjusting current flow to control motor speed and performance.

9. In Signal Processing

Purpose: In certain analog signal processing systems, 33ohms is part of filters or impedance matching circuits.

Use: Impedance matching in high-frequency circuits to prevent signal reflection or loss.

10. Thermistors and Temperature Sensors

Purpose: In combination with thermistors or temperature sensors, use a 33-ohm in temperature measurement circuits.

Use: Helping to create a voltage drop that can calibrate to temperature readings.

11. Test Circuits

Purpose: Include in test circuits to simulate certain conditions or to check current flow under different conditions.

Use in the part of bench setups for analyze and debug circuit.

These are just a few common uses, but the versatility of the 33-ohm makes it a valuable component in many electronic designs, both for hobbyist projects and in more professional applications.

5. Selecting The Right Resistor 33 Ohm

Power Rating (Wattage):Always choose a resistor rated at least 2× the actual power dissipation for reliability.

33 Ohm 1/4 Watt Resistor (0.25 watts)

Use: Suitable for low-power applications where the circuit will not dissipate a lot of heat. Common in signal processing, low-power circuits, and control systems. Applications in LED circuits, small signal amplifiers, low-power voltage dividers.

33 Ohm 1/2 Watt Resistor (0.5 watts)

Use: Slightly higher power handling than 1/4watt, making it suitable for moderate current and voltage applications. Often use in consumer electronics and medium-power circuits. Applications in general-purpose circuits, audio equipment, light-duty power supplies.

33 Ohm 1 Watt Resistor

Use: Handles higher currents and voltages than 1/4 or 1/2 watt types. Common in power supplies, motor control circuits, and other higher power application. Applications in power supply circuits, amplifiers, motor control circuits.

Resistor 33 Ohm 2 Watt

Use in circuits that need to dissipate more heat without damaging the resistor. Common in high-power audio applications, large signal amplifiers, and industrial circuits.
Applications is power amplifiers, heavy-duty voltage dividers, power regulation circuits.

Resistor 33 Ohm 3 Watt

Use: High power handling for larger devices or circuits that need to operate at higher currents. Often use in automotive or industrial control circuits. Application are high-power motor controllers, industrial control systems, power regulators and voltage dividers.

33 Ohm 5 Watt Resistor

Use: Can handle high currents and voltages, suitable for applications where need to significant power dissipate. Applications: High-power power supplies, motor control, high-current voltage dividers.

33 Ohm 10 Watt Resistor

Use: Suitable for industrial or heavy-duty applications where need to dissipate large amounts of power. Commonly use in power transmission and high-power systems. Applications: Heavy-duty power supplies, large-scale audio systems, industrial heating elements.

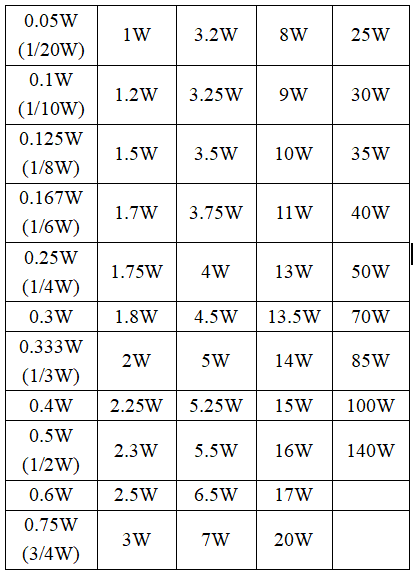

Choosing the Right Power Rating

Power Rating Considerations: Determine how much heat a circuit can safely dissipate without being damaged. Choosing a component with a higher ratings than required is a good idea for ensuring the circuit remains within safe operating limits.
Heat Dissipation: As the power rating increases, the size of the resistors also generally increases, which allows for better heat dissipation. In circuits with higher currents, opting for resistors with higher power wattage is necessary to prevent overheating.

Tolerance Options: Available from ±0.01% (precision) to ±20% (general-purpose). For analog, audio, and timing circuits, recommend tighter tolerances (±1% or better).

Tolerance indicates the allowable variation in a resistor's actual value compared to its labeled or nominal value. A 33-ohm nominal value can have a range of values within the tolerance specified. For example, if the tolerance is ±1%, the actual resistance could vary between 32.67ohms and 33.33ohms. A lower tolerance percentage means the resistor's actual value is closer to the nominal value, offering more precision.

Common Applications by Tolerance:

High Precision (±0.01%, ±0.05%): Use in circuits where accuracy is paramount, like in measurement equipment or precision electronics.

Standard Precision (±1%, ±2%): Common in everyday electronic circuits, where small deviations are acceptable.

Wide Tolerance (±5%, ±10%, ±20%): Use in less critical applications, like power resistors or consumer electronics, where exact resistance values aren't as important.

Choosing the correct tolerances ensures your circuit performs as expected. Using a component with too wide a tolerance (e.g., ±20%) could result in significant variations in current or voltage, causing unwanted behavior in more sensitive circuits.

Temperature Coefficient:

Ranges from ±5 ppm/°C (precision metal film) to ±500 ppm/°C (carbon film). Important in high-temperature or precision analog environments.

6. 33 Ohm Resistors in Series And Parallel

In Series: When you connect resistors in series, you are essentially "stacking" them end to end in a single path for the current to flow. The total resistance increases because each circuit adds its resistance to the total. So, if you connect multiple 33-ohm in series, the total resistance of the circuit becomes larger with each additional resistor.

Key Points:

Effect on Resistance: In a series connection, the total resistance is always greater than the resistances of any individual resistor. So, if you add 33-ohm resistors in series, you end up with a higher total resistance.

Current: Flowing through each resistor in a series circuit is the same because the current only has one path to follow. However, the voltage across each circuit will differ depending on the individual resistance value.

Usage: Series connections are useful when you want to divide the total voltage across multiple resistors or when you need to increase the total resistance in the circuit. For example, in voltage dividers, or when designing circuits that require a higher resistance to limit the current flow.

Practical Example:

If you have two 33-ohm connected in series, the total resistance would be 66 ohms, meaning that it’s harder for current to flow compared to a single 33-ohm resistor. This could be useful in applications where you want to limit current flow or need a specific resistance for a particular purpose, such as controlling voltage in a circuit.

In a parallel connection, connect side-by-side, providing multiple paths for current to flow. The total resistance of the circuit in parallel is always less than the smallest individual resistor. When add resistors in parallel, the total resistance decreases because the current has more paths to travel through, making it easier for current to flow.

Effect on Resistance: In parallel, the total resistance decreases as add more resistors. This is because each circuit offers a new path for the current, which reduces the overall resistance in the circuit.

Voltage: The voltage across all resistors in a parallel circuit is the same. Since each circuit connects directly to the same two points, the voltage across them is equal, but the current through each circuit may vary depending on its resistance.

Current: The total current flowing through the circuit increases as more resistors are added in parallel, because there are more paths for the current to flow through. This results in a lower total resistance, which allows more current to flow through the circuit.

Usage: Parallel connections are useful when you need to reduce the overall resistance in a circuit, increase current capacity, or maintain a consistent voltage across multiple components. For example, in power supply circuits, where you want to increase the current handling capacity, or in situations where you need a lower resistance for current-limiting purposes.

Practical Example:

If you connect two 33-ohm in parallel, the total resistance would be less than 33 ohms. Specifically, the equivalent resistance would be around 16.5 ohms. This configuration allows more current to flow, and is useful when you want to provide a lower resistance path for current, such as in power circuits or current regulation applications.

Summary of Differences:

Total Resistance:

Series: Increase as you add more resistors.

Parallel: Decreases as you add more resistor.

Current Flow:

Series: The same through all circuits, but the voltage drops across each component based on its resistance.

Parallel: The voltage across each circuit is the same, but the current is divided among the resistors.

Used series when you need to increase resistance or divide voltage. Use parallel when you want to decrease resistance or increase the total current capacity.

When to Use Each:

Series Configuration:

Voltage Dividers: When you need to split a voltage across multiple components, such as in sensor circuits.

Current Limiting: To increase resistance to limit current in circuits.

Signal Processing: In some signal conditioning applications where you need to introduce a certain level of resistance to filter or modify signals.

Parallel Configuration:

Reducing Resistance: When you need to reduce the total resistance and allow more current to flow.

Power Circuits: When require multiple resistors to handle higher current without overheating.

Current Sharing: In applications where the total current is split between different paths, such as in power supply designs, or when you need to parallel multiple circuits to meet a specific power rating or heat dissipation requirement.

Summary:

In Series: More resistors = more resistance. Great for voltage division and current limiting.

In Parallel: More resistors = less resistance. Useful for increasing current flow and reducing overall resistance.

By choosing either series or parallel configurations, you can adjust the behavior of your circuit to meet the specific requirements of your application.

7. 33 Ohm Resistor Price And Where to Buy ?

To buy: Visit the website: Check for the specific resistor you need, such as the wattage rating and package type. Choose your specifications: Make sure to select the correct type, whether it's a 1/4 watt, 1 watt, or any other wattage rating.

8. Frequently Asked Questions

1. What is the color code for a 33 ohm resistor?

The colour codes for a 33-ohm with a 4-band is:

1^st-Band (Digit): Orange (3)

2^nd-Band (Digit): Orange (3)

3^rd-Band (Multiplier): Black (×1)

4^th-Band (Tolerance): Gold (±5%)
For a 5-band (in higher precision resistors):

1^st-Band: Orange (3)

2^nd-Band: Orange (3)

3^rd-Band: Black (0)

4^th-Band: (Multiplier)Gold (x0.1)

5^th-Band: (Tolerance)Gold (±5%).

2. What is the use of 33 ohm resistor?

Commonly use in various applications, such as limiting current in LED circuits, ensuring safe current flow through components. Also use in voltage dividers to proportionally reduce voltage, especially in analog or sensor circuits. The 33ohm is helpful for biasing transistors in amplifier circuits, controlling signal processing in audio electronics, and filtering to manage signal strength. Can also employ in motor speed controllers to regulate power and prevent excessive current flow, ensuring stable operation without overheating the components in the circuit.

3. Is there a 33 ohm resistor?

Yes, 33 ohms are readily available and widely use in various electronic applications. They are available in different power ratings (such as 1/4 watt, 1/2 watt, 1 watt, and higher) and come in various forms, including through-hole (axial lead) and surface-mount (SMD) packages. These resistors commonly in standard electronics kits, component stores, or online suppliers like Orwintech Electronics. Their versatility and common resistance make them useful for current-limiting applications, signal processing, and general circuit design across consumer and industrial electronics.

4. What is the difference between a 33 ohm resistor and a 33K ohm resistor?

The difference between 33 ohm and 33k ohm (33,000 ohm) resistors lies in their resistance values and the amount of current they allow through a circuit. A 33 ohm offers low resistance, allowing more current to flow, making it suitable for power circuits, current-limiting in LEDs, or biasing transistors. In contrast, a 33k ohm has much higher resistance, restricting current flow more and used for high-impedance applications, such as voltage dividers, signal conditioning, or sensor interfaces, where only need or desire minimal current flow for proper circuit operation.

5. How do I determine the power rating of a 33 ohm resistor?

The wattage rating of a resistors indicates how much power it can safely dissipate without overheating. This typically measure in watts. For a 33ohm, the power rating determine by the voltage and current in the circuit. A common 33 ohms have a rating of 1/4watt or 1/2watt, but higher ratings like 1 watt or more use for high-power applications.

6. Can I use a 33 ohm resistor with a different tolerance?

Yes, you can use the circuit with a different tolerance depending on your circuit's requirements. Tolerance refers to how much the actual resistance can vary from the nominal value (e.g., ±5% or ±1%). If precision is not critical, a 5% tolerance resistor will suffice, but for more sensitive applications, you may need a 1% or better tolerance. Keep in mind that the tolerance of a resistor affects circuit performance, especially in voltage divider or biasing circuits, where small variations in resistance can lead to larger changes in voltage or current.

7. Can a 33 ohms resistor replace a 30 ohms resistor?

A 33 ohm resistor can replace a 30 ohm resistor in many cases, but there will be some differences in circuit behavior. A 33-ohm is slightly higher in resistance, which may lead to a slight reduction in current flow compared to a 30 ohm. This change might affect things like voltage drop, power dissipation, or the performance of components like LEDs. In most low-precision circuits, the difference is minor and won't cause significant issues, but for high-accuracy or power-sensitive applications, need to consider the change.

8. What happens if I use a 33 ohm resistor with a higher wattage than required?

If you use a 33 ohms with a higher wattage rating than required, the circuit will still work fine. The power rating is simply the maximum amount of power the resistor can safely dissipate. Using a higher wattage type (e.g., a 5-watt instead of a 1/4-watt one) won’t affect circuit function but provides extra safety, as the resistor can handle more power without overheating. However, the larger resistor might be physically bigger, which could affect your circuit’s design or require additional space. Overall, it won’t harm the circuit, but it may be unnecessary.

Conclusion:
The 33 ohm resistor is a versatile component suitable for a wide range of applications. Whether you're working on a DIY LED project or designing a precision analog system, selecting the right type, tolerance, and power rating is key to performance and reliability.
