Guide to the 3 Ohm Resistor: Specifications and Color Code

Among the many resistance values use in circuits, the 3 ohm resistor is a relatively low-value resistors that plays a role in power, audio, and test circuits. They are the backbone of nearly every electronic circuit, controlling current, dividing voltage, and ensuring that delicate components protect from excessive current flow. In this comprehensive guide, we’ll dive deep into the 3 ohm resistor, exploring its characteristics, different types, colour code, how to select the right one, and frequently asked questions to help you understand its role in both simple and advanced applications.

1. What is a 3 Ohm Resistor?

2. Key Specifications of a 3 Ohm Resistor

3. Common Applications of 3 Ohm Resistors

4. Resistor 3 Ohm Types

5. How to Select the Right 3 Ohm Resistors

6. Calculate the Power Dissipated in the 3 Ohm Resistor

7. 3 Ohms Fixed Resistor vs. 3 Ohm Variable Resistor

8. 3 Ohm Resistor Color Code

9. Frequently Asked Questions About 3 Ohm Resistors

What is a 3 Ohm Resistor?

A passive electronic component that offers exactly 3 ohms (Ω) of electrical resistance. Design to limit or regulate the flow of current in an electrical circuit. In essence, it works as a gatekeeper for electrical current, ensuring that components such as LEDs, transistors, or microcontrollers aren’t exposed to excessive current that can damage them.

According to Ohm’s Law (V = I × R), a 3-ohms allows a current of 1 ampere to flow when apply a voltage of 3 volts across it. A low resistance value, meaning it permits a relatively high current flow — making it useful in power circuits, audio amplifiers, load simulations, and current sensing applications.

A 3 Ω resistors can come in several physical forms — axial-lead carbon film, wirewound power, or surface-mount (SMD) resistors — each design to serve different electrical and environmental needs.

Key Specifications of a 3 Ohm Resistor

When selecting a resistor for your project, each parameter affects how well it will perform in your circuit. Key specifications such as wattage ratings, tolerances, resistor types, and temperature coefficient.

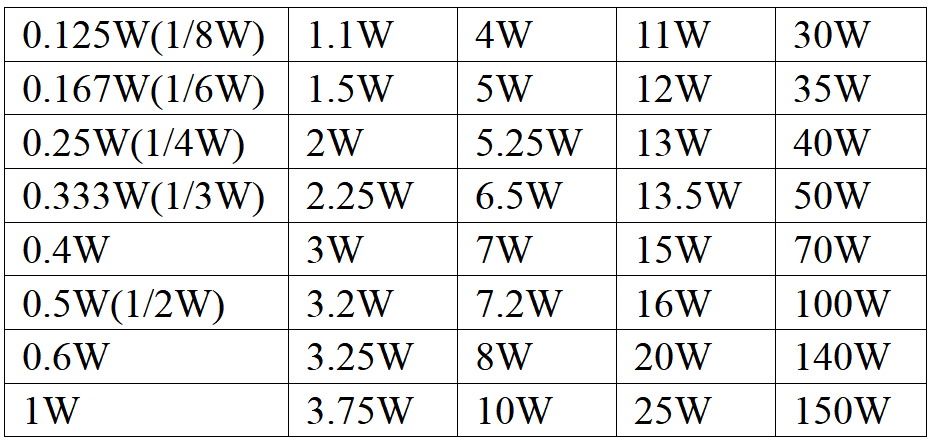

Power Rating

Define how much power (in watts) it can safely dissipate without overheating or failing. Since resistors convert electrical energy into heat, choosing the right wattage is necessary for long-term reliability and performance. For a 3 ohm, power ratings range from small signal resistor to large industrial load resistors. Each rating suits different current and voltage conditions.

Below are the most common wattage and their characteristics:

3 Ohm 1/4 Resistor

0.25W use in low-power electronic circuits, such as signal processing, control modules, and low-current LED circuits. 0.25 watts small in size and typically available as carbon film or metal film type. Because it dissipates limited power, it should not use in high-current paths.
Typical applications: small control boards, sensors, and audio tone circuits.

Resistor 3 Ohm 1 Watt

1W can handle moderate power levels and is suitable for audio systems, LED drivers, and instrumentation. Available in metal film and wirewound types, offering good temperature stability and reliability.
Typical applications: small power supplies, amplifiers, and DC motor driver circuits.

Resistor 3 Ohm 2 Watt

2W is ideal for medium power applications where need more heat dissipation. Can tolerate higher current loads, making it common in power control or filtering circuits.
Typical applications: inrush current limiters, power amplifiers, and feedback control systems.

3 Ohm 5 Watt Resistor

5W is one of the most widely use power resistors for general-purpose current limiting and voltage dropping tasks. Usually wirewound, allowing it to handle higher current levels with excellent thermal stability.
Typical applications: audio power amplifiers, power converters, battery charging circuits, and LED dimmer systems.

3 Ohm 10 Watt Resistor

10W is a high-power component often housed in a ceramic or aluminum body for better heat dissipation. It use where sustained current flow occurs, and heat management is important.
Typical applications: inverter circuits, load simulation, and motor speed control.

3 Ohm 11 Watt Resistor

11W offers slightly higher power handling than the 10W version. Typically metal-clad or wirewound, design for heavy-duty industrial and laboratory uses. The additional wattage rating gives it a longer lifespan in continuous-duty operations.
Typical applications: power supply test benches, audio load testing, and energy dissipation systems.

3 Ohm 15W Resistor

15W is a robust power resistor design for high-current and high-temperature environments. It often comes with an aluminum casing for efficient cooling and mechanical protection.
Typical applications: motor braking, surge suppression, and high-power filter circuits.

3 Ohm 50 Watt Resistor

50W can handle large currents and significant heat output, making it suitable for industrial and automotive power control applications. 50 watts often feature heat sinks or finned enclosures to improve thermal performance.
Typical applications: electric vehicle systems, generator load banks, and industrial automation equipment.

3 Ohm 100 Watt Resistor

100W build for heavy-duty applications where expect a continuous high current. 100-watts are metal-clad or wirewound with aluminum housings, design for mounting onto heat sinks.
Typical applications: dynamic braking circuits, energy storage discharge systems, and large-scale power supply units.

3 Ohm 225 Watt Resistor

225W represents the industrial-grade, high power category. Design for systems that demand continuous high current and heat dissipation. 225-watts are rugged, durable, and capable of operating under extreme conditions with proper cooling.
Typical applications: industrial drives, regenerative braking systems, and power grid testing equipment.

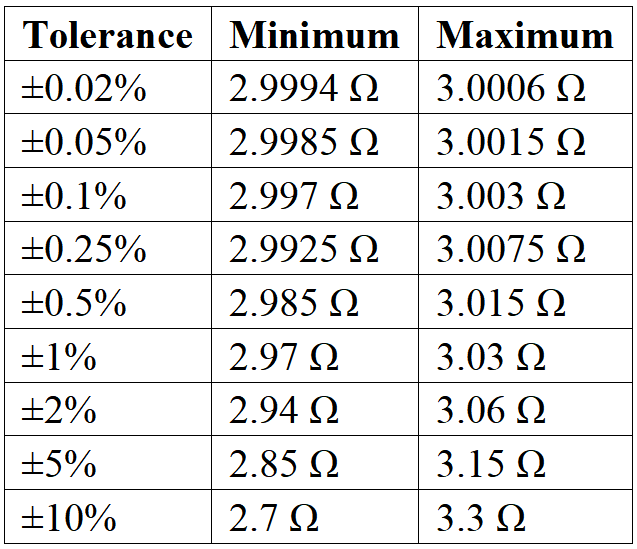

Tolerance

Tolerance indicates the precision of a resistor’s actual resistance compared to its nominal (rated) value. For example, a 3 Ω resistor with ±1% tolerance range from 2.97Ω to 3.03Ω. Lower tolerance (like ±0.02%) means higher accuracy, typically use in sensitive measurement or calibration circuits. Wider tolerance values (like ±5% or ±10%) are more cost-effective and use in general-purpose or less precision-dependent applications.

Resistor Type

3 ohms manufacture using different materials and construction methods, influencing their performance, reliability, and application suitability. Common types for 3-ohms include:

· Carbon Film

· Metal Film

· Wirewound

· SMD (Chip)

· Load Resistors (High Power)

Each type has its own unique properties, which we’ll discuss in detail later.

Temperature Coefficient

TCR indicates how much the resistance value changes with temperature. It usually measure in parts per million per degree Celsius (ppm/°C).

For example:

A 100 ppm/°C resistor changes by 0.01% per °C.

A 50 ppm/°C is more stable with temperature.

For 3 ohms, TCRs typically range from ±50 to ±200 ppm/°C, depending on the type and material used. Wirewound types generally have better temperature stability compared to carbon film resistors.

Common Applications of 3 Ohm Resistors

The 3Ω resistor is versatile and use in a variety of electrical and electronic systems. Some of the most common applications include:

Power Supply Circuits

Help in current limiting, ensuring devices like LEDs, transistors, and ICs receive safe levels of current.

Audio Amplifiers

They use for impedance matching, volume control, and filtering to ensure stable sound output and prevent speaker distortion.

Load Testing and Simulation

Commonly use to simulate real-world electrical loads for testing amplifiers, batteries, or power supplies under working conditions.

Motor Control

In DC motor driver circuits, 3 ohm resistors employ for current sensing and voltage dropping.

Automotive Electronics

Use in vehicle control units, airbag circuits, and lighting systems, where specific resistance values control timing and current flow.

Heating and Braking Circuits

3 ohm wirewound resistors often use in dynamic braking systems and heating applications because of their ability to dissipate high power safely.

Resistor 3 Ohm Types

Let’s explore the most common types, including their materials, pros and cons, and typical applications.

Metal Film Resistor

Material: Nickel-chromium (NiCr) thin film on a ceramic substrate.

Advantages: High accuracy, low noise, stable temperature performance.

Disadvantages: Limited to lower power ratings.

Applications: Audio circuits, signal processing, instrumentation.

Wirewound Resistor

Material: Resistive wire (usually Nichrome) wound around a ceramic core.

Advantages: Excellent power handling, precise value, high temperature tolerance.

Disadvantages: Inductive at high frequencies.

Applications: Power circuits, motor control, dynamic braking, and load testing.

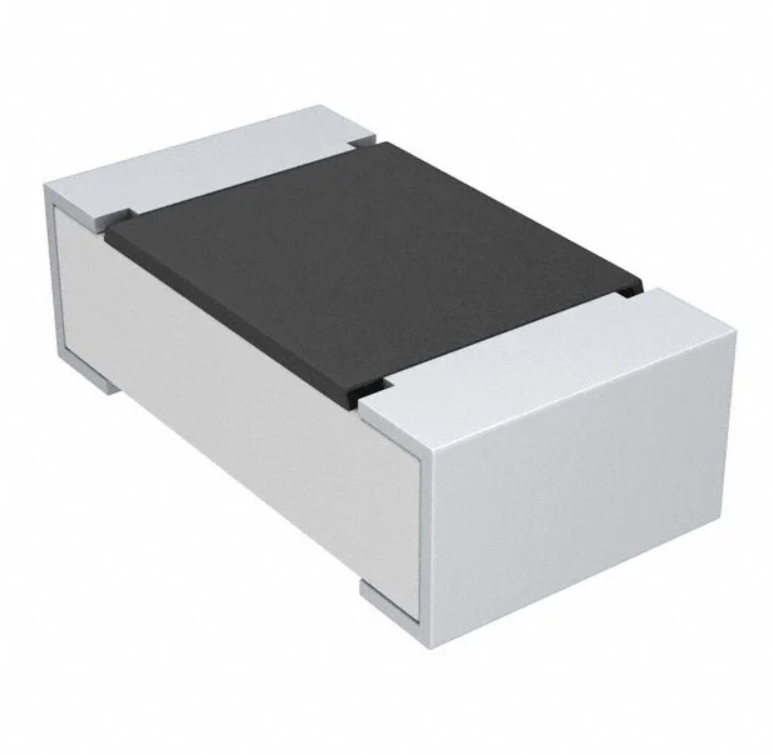

Chip Resistor (Surface Mount Device - SMD)

Material: Metal oxide or thick-film resistive material.

Advantages: Small size, lightweight, suitable for automated PCB assembly.

Disadvantages: Lower power handling compared to through-hole types.

Applications: Smartphones, computers, compact electronic devices.

Carbon Film Resistor

Material: Carbon layer on a ceramic substrate.

Advantages: Economical, available in various wattages, good general-purpose choice.

Disadvantages: Higher noise, less stable over time and temperature.

Applications: Consumer electronics, lighting, non-critical circuits.

3 Ohm Load Resistor

Material: Metal-clad aluminum housing with heat dissipation fins.

Advantages: High power rating, durable, design for sustained high currents.

Disadvantages: Bulky and may require cooling.

Applications: Power testing, load simulation, inverter and battery systems.

How to Select the Right 3 Ohm Resistors

Choosing the ideal 3 ohms resistor depends on the application and operating conditions. Consider the following factors before selecting one:

1. Power Rating

Calculate the power dissipated in the resistor using the formula:
P=I²xR or P=V²/R
Always choose a circuit with a power rating at least twice the calculated power for safety and longevity.

2. Tolerance

If you need precise control of current or voltage, choose a resistor with low tolerance (±1% or better). For general applications, ±5% or ±10% is sufficient.

3. Temperature Coefficient

In circuits exposed to temperature variation, select a resistor with a low temperature coefficient (50–100 ppm/°C) to maintain consistent resistance.

4. Physical Size and Form Factor

Ensure the resistor fits your PCB or circuit design — SMD resistors for compact designs, and wirewound for high power.

5. Resistor Type

High power applications: Wirewound or load resistors.

Precision circuits: Metal film type.

Low-cost applications: Carbon film.

Compact designs: SMD chip resistor.

Calculate the Power Dissipated in the 3 Ohm Resistor

To find how much power dissipate in a 3 Ω, use the formula: P=V²/R

Where:

P = Power dissipated (in watts, W)

V = Voltage across the resistor (in volts, V)

R = Resistance (in ohms, Ω)

For high current applications (e.g., 3 ohm high-amp resistors), recommend wirewound types because they can dissipate heat more efficiently.

Here’s an table with sample current values and a section to find the high current that a 3 ohms can handle, based on its power ratings:

Power Dissipation for 3 Ohm Resistor (Various Voltages & Currents)

Finding High Current for 3 Ohm Resistor Based on Power Rating

To determine the maximum current that a 3 ohm resistor can handle without exceeding a specific power rating, we can use the formula:

 Where:

I = Current (A)

P = Power Rating (W)

R = Resistance (Ω)

Let's calculate the maximum current for different power ratings of the 3 ohm resistor:

Summary

The maximum current that 3 ohms can safely handle depends on its power rating. For example, a 1W resistor can handle up to 0.577A, while a 100W can safely handle up to 5.774A.

The power dissipation increases with both voltage and current, so it's essential to choose the right one for your circuit’s power needs.

3 Ohms Fixed Resistor vs. 3 Ohm Variable Resistor

Variable resistors are preferred where need adjustability, while fixed 3 ohm are ideal for stable, repeatable operation.

3 ohms: Best for fixed, precise applications where require constant resistance, such as in voltage dividers, current limiting, and power dissipation.

3 Ohm Variable Resistor: Ideal for applications where need adjustable resistance, such as in audio volume controls, motor speed regulation, and calibration circuits. However, it sacrifices precision for flexibility in adjusting the resistance value.

3 Ohm Resistor Color Code

For through-hole package, color bands indicate the resistance and tolerance value.

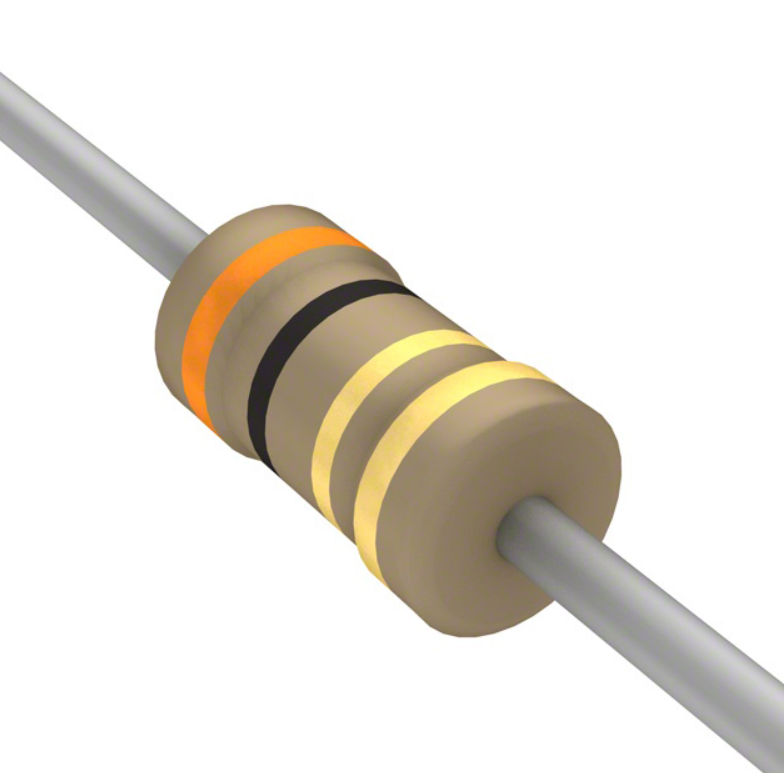

4-Band Resistor Color Code

Steps to Read the Coding:

First-Band (Orange):Represents 3 (the first-digit).

Second-Band (Black): Represents 0 (the second-digit).

Third-Band (Gold): The multiplier is 0.1, so you multiply the first two digits (30) by 0.1 to get 3 ohms.

Fourth Band (Gold): This indicates the tolerance, which is ±5%, meaning the actual resistance can vary between 2.85Ω and 3.15Ω.

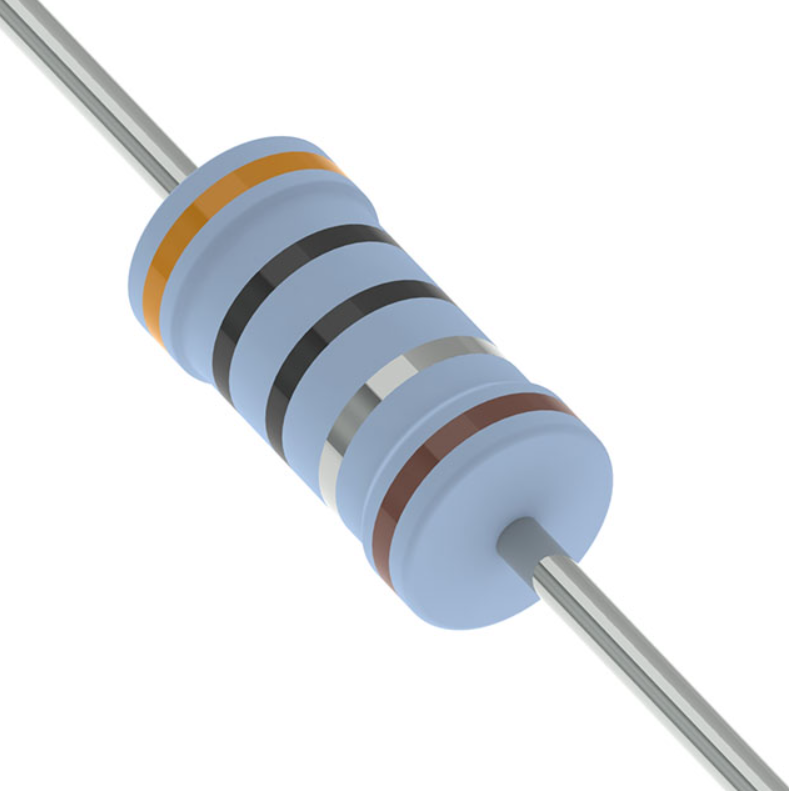

5-Band Resistor Colour Code

Steps to Decode the Code:

First-Band (Orange): Represents 3 (first-digit).

Second-Band (Black): Represents 0 (second-digit).

Third-Band (Black): Represents 0 (third-digit), giving us the number 300.

Fourth-Band (Silver): Represents the multiplier of 0.01, so you multiply 300 by 0.01 to get 3 ohms.

Fifth-Band (Brown): This represents the tolerance of ±1%, meaning the actual resistance vary from 2.97Ω to 3.03Ω.

In SMD chip resistors, the marking “3R0” denotes a 3.0-ohm (where R represents the decimal point).

Frequently Asked Questions [FAQ] About 3 Ohm Resistors

How to find the current in 3 ohm resistor?

To find the current through a 3-ohms, you need to apply Ohm's Law, which relates voltage and resistance to current. If you know the voltage applied across the resistor, you divide it by the resistance value (3 ohms). This will give you the current in amperes. The current will depend on the voltage value; the higher the voltage, the greater the current through the resistor.

What is the color band code for a 3 ohm resistor?

The 4-band colour codes for a 3Ω resistor is as follows:

Orange (3)- Black (0)- Gold (multiplier: 0.1)- Gold (tolerance: ±5%)

This means the nominal resistance value is 3 ohms with a tolerance of ±5%, so the actual resistance can vary slightly from the nominal value. 5-band color coding is: Orange-black-black-silver-brown.

How much current flows through a 3-ohm resistor when the voltage is specified?

To find the current through it when know the voltage, simply divide the voltage by the resistance (3 ohms). This gives the current in amperes. The current will increase as the voltage increases, and the resistor will limit the current according to its resistance value. For higher voltages, the current will also be higher.

How much voltage is present across a 3 ohm resistor with a known current?

To find the voltage across a 3-ohm, you multiply the current flowing through the resistor by its resistance value. This means that as the current increases, the voltage drop across the resistor will also increase proportionally. The resistor will resist the flow of current, causing a certain voltage drop across it.

What are typical uses for various kinds of 3 ohm resistors?

Commonly use in current-limiting applications, such as protecting components from high currents. Wirewound types often use in high-power applications such as power supplies and motor control circuits, while metal film resistors use in precision circuits, like audio systems. Carbon film type use in general-purpose applications, and SMD (Surface Mount Device) chip resistors commonly find in compact electronic devices such as smartphones and computers.

What is the minimum resistance value for resistors, and how does it compare to a 3 Ohm?

The lowest resistance values available for resistors are often in the milliohm range, starting from as low as 0.01 ohms. These low resistance values typically use for high current applications or where need low resistance to minimize voltage drop. A 3 ohms circuit is much higher in comparison and typically use in circuits where require moderate current and voltage handling.

What factors should I consider when selecting between a 3 and 3.3 ohm resistor?

When choosing between a 3-ohm and a 3.3-ohm, consider the tolerance and current requirements of your circuit. The 3 ohms will allow more current to flow compared to the 3.3 Ω resistor, which provides slightly higher resistance and limits current flow more. If you need precise current limiting, a 3.3 ohms circuit is a better choice. For higher current applications, prefer a 3 ohm resistor.

Is a 3 ohm resistor suitable for use in automotive airbag circuits?

A 3 ohm resistor can use in automotive applications such as airbag circuits, but only if it meets the necessary power rating and safety standards for such critical applications. In circuits like airbag systems, resistors must handle high voltages and precise current control. If use a 3 ohms resistor, it must specifically design to tolerate the power dissipation requirements and ensure reliable operation under harsh conditions, such as high temperatures and vibrations typically found in automotive environments.

Conclusion

The 3 ohm resistor is a key low-resistance component widely use in both low- and high-power circuits. Its ability to handle significant current makes it ideal for power regulation, load testing, and automotive applications.

When selecting a 3 ohm resistor, consider key factors such as power rating, tolerance, temperature coefficient, and resistor types to ensure optimal performance and reliability. Whether you’re designing a precision audio amplifier, building a high-power motor driver, or testing power equipment, the 3 ohms resistors offer the versatility and stability needed for modern electronics.
