Y163020K0090T9R
lmages are for reference only.Y163020K0090T9R
VFCP1206 20K009 TCR0.2 0.01% S T
Datasheet1206 (3216 Metric)
39,773 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20.009 kOhms ±0.01% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant, Non-Inductive Metal Foil
Y163020K0090T9R
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | VPG Foil Resistors |
| Series | VFCP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 20.009 kOhms |
| Tolerance | ±0.01% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Metal Foil |
| Features | Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±0.2ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.126" L x 0.062" W (3.20mm x 1.57mm) |
| Height - Seated (Max) | 0.025" (0.64mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

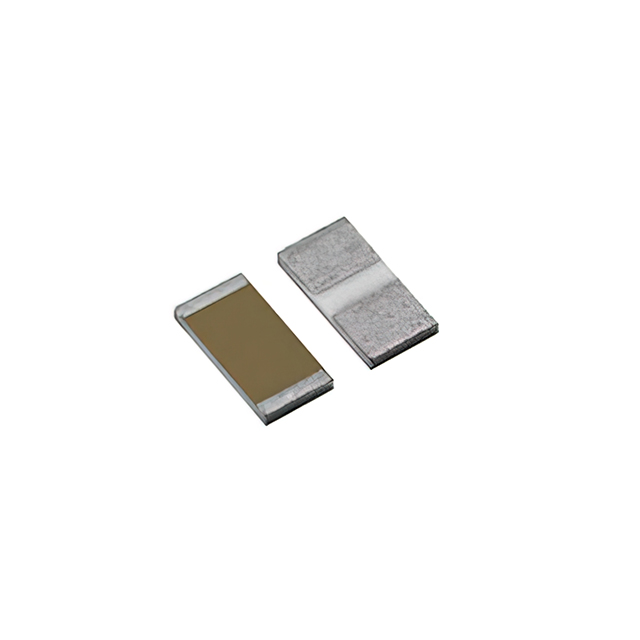

| Part Number | Y163020K0090T0R | Y163020K0000F9W | Y163020K0000T0R | Y163020K0000T0W |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | VFCP1206 20K009 TCR0.2 0.01% B T | RES SMD 20K OHM 1% 1/4W 1206 | RES SMD 20K OHM 0.01% 1/4W 1206 | RES SMD 20K OHM 0.01% 1/4W 1206 |
| Series | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| Packaging | Bulk | Tray | Tape & Reel (TR) | Tray |
