1000 Ohm Resistor Color Code and Applications

Among the many resistance values available, the 1000 ohm resistor, often referred to as 1K, is one of the most common and versatile.  Resistors are one of the most fundamental components in many electronic circuit, helping to regulate the flow of current and ensuring that components not damage by excessive power. Use in a wide range of applications, from simple voltage dividers to current-limiting resistors in LED circuits.

In this guide, we’ll cover everything you need to know about the 1000 ohms, including its colour codes, power ratings, different types, and common uses.

1. What is a 1000 Ohm Resistor?

2. 1000 Ohm Resistor Color Code

3. Power Rating of 1000 Ohm Resistors

4. Types of 1000 Ohm Resistor

5. Application of 1000 Ohms Resistor

6. 1000 Ohm Resistor Tolerance

7. Frequently Asked Questions [FAQ]

What is a 1000 Ohm Resistor?

1000 ohm resistor, often referred to as 1K resistors, a passive electronic component that resists the flow of electrical current. Commonly use to limit the amount of current passing through a circuit, protect sensitive components, or create voltage dividers. The unit "ohms" refers to the measure of resistance, and a 1000-ohm means it offers 1000 ohms of resistance to electrical current.

Resistors are useful for managing current flow and maintaining circuit stability, and the 1000-ohm is a standard value in electronic designs.

1000 Ohm Resistor Color Code

The colour coding is a standard system use to indicate their resistance values.

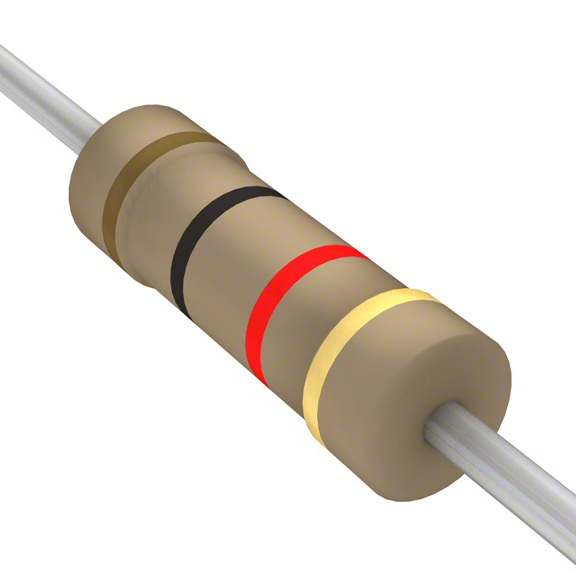

1000 Ohm Resistor Colour Code 4 Band

To read the color codes for 1000 ohm with a 4-band (brown-black-red-gold), you start by interpreting each band according to its position. The first-band, brown, represents the digit 1. The second-band, black, represents the digit 0. Together, these two bands give you the first two digits, 1 and 0, forming the number 10.

Next, the third-band, which is red, indicates the multiplier. Red represents a multiplier of 100, so you multiply the number formed by the first two digits (10) by 100, resulting in 1000-ohms.

Finally, the fourth-band is gold, which indicates the tolerance. Gold means the tolerance of ±5%, meaning the actual resistance vary by up to 5% above or below the nominal value of 1000 ohms.

This method applies to any resistor with the same color pattern, helping you easily determine its resistance value and tolerance.

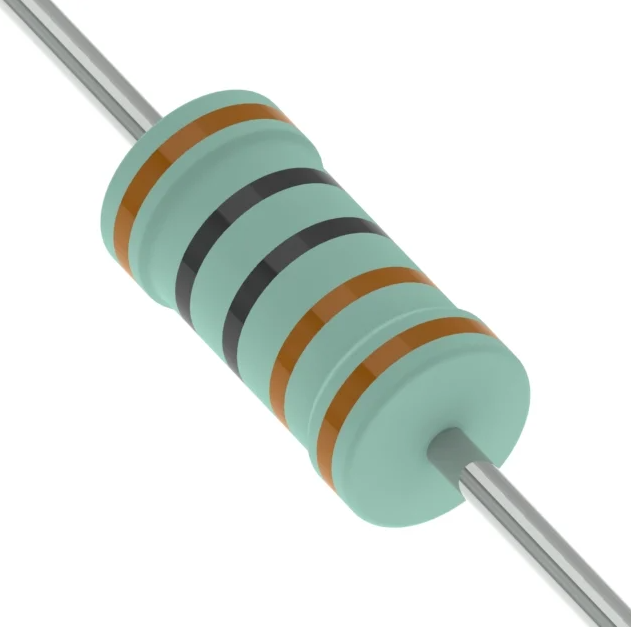

1000 Ohm Resistor Color Code 5 Band

To read the colour codes for 1000-ohms with 5-band colors (brown-black-black-brown-brown), you need to interpret each band in order.

Start with the first-band, which is brown. This represents the first digit, 1. The second-band is black, representing the second-digit, 0. The third-band is also black, which represents the third-digit, 0. So, the first three bands give you the digits 1, 0, and 0, forming the number 100.

Next, the fourth-band is brown, which indicates a multiplier of ×10. This means you multiply the number formed by the first three digits (100) by 10, resulting in a total resistance value of 1000-ohms.

Finally, the fifth-band is brown, which indicates the tolerance of the resistor. A brown band means ±1%, so the actual resistance of the resistor can vary by up to 1% above or below the nominal value of 1000 ohms.

4-Band VS 5-Band

When comparing a 4-band and a 5-band 1000 ohms resistors, the key differences lie in the number of digits use to represent the resistance value and the precision of the circuit.

A 4-band has the first two bands representing the first two digits of the resistance value, and the third-band is the multiplier. For example, in the brown-black-red-gold 4-band colors code, the first two digits are 1 and 0, giving us 10. The third-band (red) represents the multiplier ×100, resulting in a total value of 1000-ohms. The fourth-band, which is gold, represents the tolerance of ±5%, meaning the actual resistance vary by up to 5% above or below the nominal value.

On the other hand, a 5-band provides an additional digit in the resistance value. The first three bands represent the first three digits, and the fourth-band is the multiplier. For example, in the brown-black-black-brown-brown 5-band colour codes, the first three digits are 1, 0, and 0, giving us 100. The fourth-band (brown) represents the multiplier ×10, resulting in 1000-ohms. The fifth-band, which is brown, indicates a tolerance of ±1%, meaning the actual resistance value vary by only 1% above or below the nominal value.

The 4-band typically use in general-purpose circuits where high precision is not critical. The tolerance is usually ±5%, and represent the resistance value by just two digits followed by a multiplier.

A 5-band, however, offers greater precision with three digits representing the resistance value, which leads to higher accuracy. The tolerance is typically ±1%, making them ideal for more sensitive and precision-driven applications, such as in test equipment, high-accuracy circuits, and medical electronics.

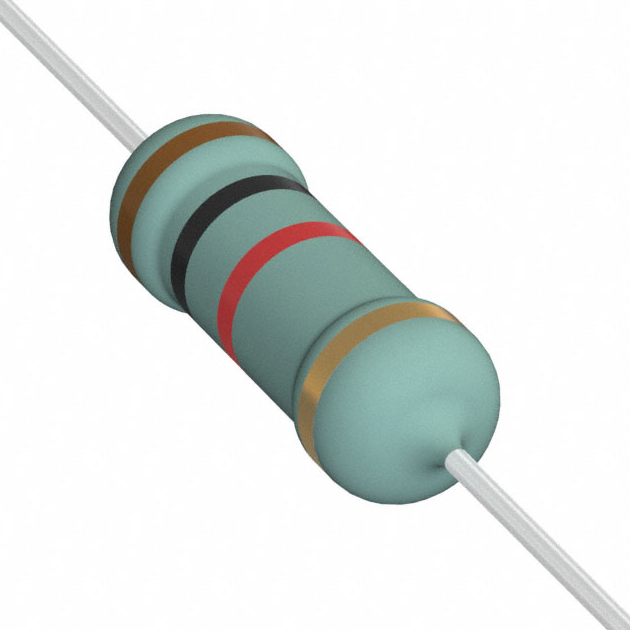

Power Rating of 1000 Ohm Resistors

The wattage ratings of a circuit indicates how much power the resistor can safely dissipate without being damaged. The key specification to consider when selecting resistors for specific applications, as exceeding the power rating can cause the circuit to overheat, potentially leading to failure. Here is a breakdown of the various 1000 ohm resistors with different power ratings and their typical uses:

1/4 Watt 1000 Ohm Resistor (0.25W)

1/4W is one of the most commonly use resistors in low-power electronic circuits. Ideal for applications where current and voltage are relatively low. 0.25 watts often use in general-purpose circuits, signal processing, and low-power consumer electronics. Uses include LED circuits, signal conditioning, voltage dividers, and low-power analog circuits.

1/2 Watt 1000 Ohm Resistor (0.5W)

1/2 watts can handle slightly more power than a 1/4-watt, making it suitable for a wider range of general-purpose applications. Often use in circuits where the power dissipation is a little higher but still falls within low-power requirements. Uses include power supplies, audio amplifiers, basic analog circuits, and sensors.

1000 Ohm 1 Watt Resistor

Use 1W when the power dissipation in a circuit is higher, but it is still within moderate limits. It can use in small power electronics and where there is a need to handle more power without excessive heat buildup. Uses include medium-power power supplies, amplifiers, voltage dividers, low-power motors, and control circuits.

1000 Ohm 2 Watt Resistor

2W can handle more significant power dissipation compared to smaller wattage resistors, making it suitable for higher-power applications. Use in circuits where larger currents are flowing, and power dissipation becomes a concern. Uses include motor control circuits, larger audio systems, mid-range power supplies, and high-power voltage dividers.

1000 Ohm 3 Watt Resistor

3W design for applications where involve more power. 3 watts often use in industrial and automotive circuits where higher currents flow and heat dissipation is a concern. Uses include industrial circuits, large power supplies, heating elements, and electronic ballast circuits.

1000 Ohm 5 Watt Resistor

5W can handle even more power dissipation and use in more robust electronic devices. Commonly find 5 watts in power circuits that require significant current handling but not necessarily at the highest levels. Uses include power amplifiers, heavy-duty power supplies, LED drivers, and battery chargers.

1000 Ohm 10 Watt Resistor

10-watts use in circuits where the power dissipation is significant. These often employ in applications where there are high currents, but the resistor doesn't need to rate for the extreme power levels seen in larger industrial setups. Uses include high-power audio amplifiers, motor control, test equipment, and heat dissipation in power regulation circuits.

1000 Ohm 20 Watt Resistor

20-watts commonly use in circuits where there is substantial heat generation and power dissipation. This level of resistor is in mid-level industrial and professional applications, where thermal management is a consideration. Uses include industrial equipment, automotive applications, high-power load banks, and test circuits.

1000 Ohm 100 Watt Resistor

100-watt is a high-power resistor that can use in large industrial equipment or for high-power testing and research purposes. These resistors require significant heat management, often incorporating ceramic materials and large heatsinks. Uses include high-power test equipment, power supplies for large industrial machines, and research labs.

1000 Ohm 250 Watt Ceramic Resistor

250W ceramic resistor design for extreme power dissipation. Typically use in high-voltage or high-power applications because of their excellent heat resistance and ability to handle large amounts of energy without breaking down. Uses include high-power industrial systems, high-current testing, large electrical systems, and high-voltage applications.

1000 Ohm 2000 Watt Carbon Resistor

A 2000W is a massive power-dissipating resistor use in industrial and heavy-duty power systems. Carbon resistors of this magnitude use for heavy electrical load testing and managing extremely high currents. Uses include high-load electrical systems, industrial power regulation, large-scale testing and measurement, and military-grade applications.

Types of 1000 Ohm Resistor

When selecting 1000-ohms resistors, there are different types to choose from based on the specific requirements of your circuit. Each type offers unique characteristics, such as resistance stability, power handling, and inductance. Here is an overview of the various resistor types and their common uses:

1000 Ohm Non Inductive Resistor

A non-inductive resistor design to minimize the inductance that can introduce by a resistor’s wire coil. Ideal for high-frequency applications, where inductance could affect circuit performance, especially in sensitive RF (radio frequency) circuits. Non-inductive resistors typically use in applications where maintaining signal integrity and preventing signal distortion is crucial. Use: High-frequency circuits, RF circuits, audio systems, and signal processing applications where must minimize inductance.

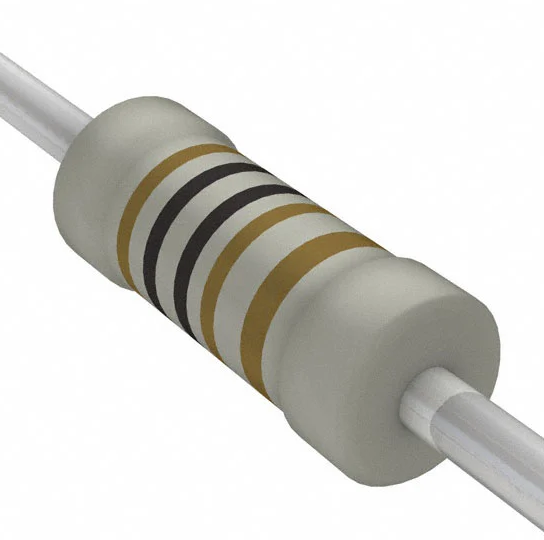

1000 Ohm Metal Film Resistor

Make by depositing a thin layer of metal (often nickel-chromium or a similar alloy) onto a ceramic substrate. Metal film types offer excellent stability, low noise, and high precision compared to others, such as carbon film. These resistors have a tighter tolerance, typically ±1% or better, and are highly reliable in critical circuits. Use: Precision applications, high-accuracy circuits, audio equipment, medical devices, and instrumentation where stability and low noise are necessary.

1000 Ohm Power Resistor

Power-resistor design to handle significant amounts of power dissipation. Typically made using materials such as wirewound, ceramic, or metal oxide to ensure they can dissipate heat effectively. 1000-ohms power resistor use in circuits where the circuit must withstand higher currents or voltages, leading to increased power dissipation. Use: High-power applications, such as in power supplies, motor control circuits, heating elements, power amplifiers, and industrial equipment where need to dissipate large amounts of energy safely.

Carbon Film

Make by depositing a thin layer of carbon on a ceramic rod. These resistors are cheaper and more common than metal film types, but they have a higher tolerance (typically ±5% or ±10%). Often use in applications where precision is not the top priority, but cost-efficiency is important. Use: General-purpose circuits, consumer electronics, low-cost applications, and situations where absolute precision is less critical but still require reliability.

1000 Ohm Wirewound Resistor

A wirewound-resistor make by winding a metal wire (often nichrome) around a ceramic or fiberglass core. Wirewound resistors are known for their ability to handle higher power dissipation and provide excellent precision. However, they can introduce inductance, which are a concern in high-frequency applications. Despite this, wirewound commonly use in power-related and high-precision applications. Use: Power supplies, amplifiers, motor control circuits, high-precision applications, and systems requiring high power handling capabilities.

Application of 1000 Ohms Resistor

1000 Ohm Resistor for LED

A 1000 Ω commonly use in LED-circuits to limit the current flowing through the LED, ensuring it operates within safe limits. LEDs are current-sensitive components, meaning that if too much current flows through them, they can quickly overheat and burn out. The 1000-ohm serves as a current-limiting device, preventing excessive current from reaching the LED.

When using a 1000 Ω with an LED, it’s important to consider the supply voltage and the LED’s forward voltage. Typically ranges from 1.8V to 3.3V, depending on its type. The resistor helps control the current by creating a voltage drop, thus reducing the current that passes through the LED.

In circuits where the power supply voltage is higher than the LED’s forward-voltage, 1000 ohms resistor is an effective choice for reducing the current. For example, if you're using a 5V supply and a 2V forward voltage LED, the resistor will ensure that only a safe amount of current flows through the LED. However, a 1000 Ω will result in a lower current than typically needed for a standard 20mA-LED, causing the LED to be dim or possibly not light up at all.

These resistors play an key role in many other electronic systems where controlling current and voltage is important.

In voltage dividers, use to split voltages in circuits where you need to reduce the supply voltage to a lower, usable level. By combining the 1000-ohm with another resistor of a different value, you can create a voltage divider that provides specific voltage values needed by other components, such as sensors or microcontrollers.

1000-ohms resistors also commonly find in filters, such as low-pass or high-pass filters, which use in audio circuits, signal processing, and power supply smoothing. Help shape the frequency response of the circuit, ensuring that only desired signals pass through while filtering out unwanted frequencies.

In sensor circuits, 1000 Ω often use as pull-down or pull-up resistors. They ensure that input pins on microcontrollers or logic devices are at a defined logic level when no active signal is present, preventing floating inputs and enhancing circuit stability.

Finally, 1000 ohm use in temperature sensors (like thermistors) or current sensing circuits, where they are part of the feedback loop to regulate and measure electrical characteristics, ensuring proper operation of the system.

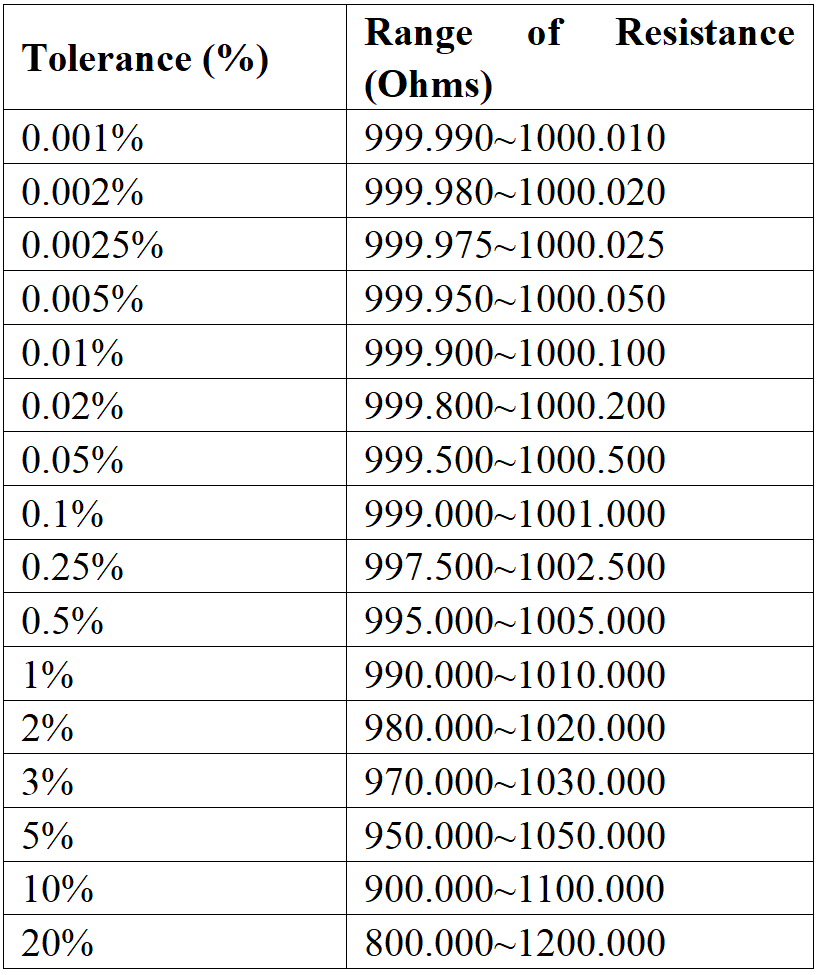

1000 Ohm Resistor Tolerance

Tolerance defines how much the actual resistance can vary from the stated value. For a 1000-ohm, tolerance values are available in a variety of levels:

0.001%, 0.002%, 0.0025%, etc. (Precise resistors, often use in precision instrumentation)

0.005%, 0.01%, 0.02%, 0.05%, etc. (High precision)

0.1%, 0.25%, 0.5%, 1%, etc. (General-purpose for most common applications)

2%, 3%, 5%, 10%, 20% (Lower precision, use in less demanding applications)

Why Is Tolerance Important?

Accuracy: Tolerance determines how closely the circuit matches the intended resistance value. In circuits where precise current control is important, such as in signal processing or audio circuits, you will need circuits with a low tolerance (e.g., 0.1% or 0.5%).

Applications: If you need accurate voltage dividers, filters, or precision measurement instruments, you will choose with tight tolerance (e.g., 0.1% or 0.5%). For basic applications such as LED circuits or power supplies, higher tolerance (e.g., 5% or 10%) is sufficient.

Frequently Asked Questions [FAQ]

What is 1000 ohm resistor price?

The pricing of a 1000-ohm can vary depending on factors such as the resistor’s type, tolerance, and manufacturer. For general-purpose types, the price is usually low, typically ranging from US$0.001 to US$0.01 each when bought in bulk. Higher precision with tighter tolerances or specialty materials cost more, reaching $1 or more per piece. Purchasing in larger quantities or through online suppliers can significantly lower the cost per unit.

What is the color code for a 1000 ohm resistor?

For a 1000-ohm (1K), the 4-band colour coding is:

Brown (1)- Black (0)- Red (multiplier ×100)- Gold (tolerance ±5%).
For the 5-band colors are:

Brown (1)- Black (0)- Black (0)- Brown (multiplier ×10)- Brown (tolerance ±1%).

This code ensures the correct identification of the resistor's resistance value and tolerance.

Can I use a 10K resistor instead of 1K?

Not recommend using a 10K resistor instead of a 1K unless the circuit design specifically calls for a higher resistance value. A 10K-resistor will limit the current flow much more than 1K, which could affect the operation of your circuit. For example, in an LED circuit, using a 10K-resistor would result in much lower current flow, potentially causing the LED to be too dim or not light up at all.

What is the tolerance of a 1000 ohm resistor?

The tolerance of a 1000-ohm resistor specifies how much the actual resistance can vary from the nominal value (1000 ohms). Common tolerance values include ±1%, ±5%, and ±10%. For high-precision applications, use as low as ±0.1% or ±0.5%. Usually indicate the tolerance by the last color band on the resistor (e.g., Gold for ±5% or Silver for ±10%).

What do 1000 ohms look like on a multimeter?

When measuring 1000-ohms with a multimeter, the display should show 1000 ohms, assuming the resistor's actual value is within the tolerance range. The reading vary slightly depending on the resistor's tolerance. For example, a 1% resistor show values between 990 and 1010 ohms. If the multimeter reads significantly higher or lower, it could indicate a problem, such as a damaged resistor or incorrect measurement.

Can I use a 1k resistor for LED?

Yes, you can use for an LED, but you should ensure it is suitable for the current and voltage requirements of the specific LED. A 1K Ω often use in circuits with higher supply voltages (e.g., 5V) to limit the current and protect the LED. However, if you need a brighter LED or more current, you need to choose a resistor with a lower value (e.g., 220 or 470 ohms), depending on the LED's specifications.

What does 1000 ohms mean?

1000-ohms is a unit of electrical resistance, often referred to as 1 kilohm (1K). It measures how much it opposes the flow of electric current in a circuit. The higher the resistance, the less current will flow for a given voltage, following Ohm's Law (V = IR). 1000-ohm limits current to 1/1000th of the voltage applied, making it useful in a variety of electronic circuits, such as voltage dividers, signal processing, and current-limiting applications.

How much current flows in a 1000 ohm resistor?

The amount of current flowing through a 1000-ohm depends on the voltage applied across it. According to Ohm's Law (I = V/R), the current can calculate by dividing the applied voltage (V) by the resistance (R). For example, if apply 5V across a 1000 ohm, the current flowing through it will be 5V / 1000 ohms = 0.005A or 5mA. The current will vary with different voltages, but the resistance remains constant at 1000 ohms.

What is the polarity of a 1K resistor?

Resistors, including 1K Ω, are non-polarized components, meaning they do not have a polarity. Unlike diodes or capacitors, can place resistors in a circuit in either direction without affecting their performance. The orientation of a resistor does not impact its resistance value, so you can install it in either direction when designing or repairing circuits.

What is the voltage drop of a 1K resistor?

It depends on the current flowing through it and the applied voltage. According to Ohm's Law (V = IR), the voltage drop across a resistor is equal to the current passing through it multiplied by the resistance. For example, with a 1K resistor and a current of 5mA flowing through it, the voltage drop will be V = 5mA × 1000 ohms = 5V. The voltage drop will vary depending on the current and applied voltage in the circuit.

This guide provides you with everything you need to know about the 1000 ohm resistor, from its color codes to its power ratings and applications. Whether you're a beginner or an experienced electronics enthusiast, understanding the characteristics of resistors is crucial to building and troubleshooting circuits.
