1M Ohm Resistor - Color Code, Tolerance and Applications

1M ohm resistor is fundamental components in electronics, and understanding its characteristics is necessary for selecting the right type for your projects. In this blog post, we'll dive into everything you need to know about the 1M resistor—its value, types, colour codes, applications, and more.

1. What is a 1M Ohm Resistor?

2. Common Types of 1M Ohm Resistors

3. 1M Resistor Color Code

4. 1M Resistor Applications

5. Power Ratings and Tolerance of 1M Resistors

6. How to Select the Right Resistor 1M Ohm

7. 1M Ohm Resistor vs. Other Resistance Values

8. 1M Ohm Variable Resistor

9. Frequently Asked Questions about 1M Resistors

What is a 1M Ohm Resistor?

1M resistor has a resistance value of 1,000,000 ohms, where "M" stands for "mega," meaning one million. A high resistance value commonly used in applications that require minimal current flow or to create voltage dividers in circuits. The resistor’s primary function is to limit the flow of electrical current, making it essential in electronic designs, especially those that handle low currents or high impedance, like in signal conditioning or timing circuits. Its high resistance value allows it to effectively control voltage and current in sensitive electronic systems.

Common Types of 1M Ohm Resistors

1M Ohm SMD Resistor

A surface-mount component designed to solder directly onto a printed circuit board (PCB). These resistors are compact and efficient, typically made from materials such as metal or carbon film deposited on a ceramic base. The small size allows them to use in miniaturized devices such as smartphones and wearables. They are also suitable for high-precision tasks like voltage dividers and signal conditioning. Their main advantage is the ability to save space in electronic devices while maintaining functionality and precision.

1M Ohm Resistor SMD Code

SMD resistors use numerical codes to indicate their resistance value. For a 1M Ohms, the standard code is 105 for a 3-digit code 5% and 1004 for a 4-digit code 1%. This coding system helps quickly identify the resistor's value in compact applications.

1M Ohm Resistor 0402

The 0402 is small surface-mount package, measuring just 0.04 x 0.02 inches (1.0 x 0.5 mm). Ideal for applications where space is highly constrained, such as in wearables and portable electronics. Its compact size allows it to fit into small devices without compromising performance.

1M Ohm Resistor 0805

The 0805 size, measuring 0.08 x 0.05 inches (2.0 x 1.25 mm), is a popular choice for consumer electronics like laptops and TVs. It strikes a balance between size and power dissipation, making it well-suited for general-purpose applications where space and power requirements are moderate.

1M Ohm Resistor 1206

The 1206 SMD package, which measures 0.12 x 0.06 inches (3.0 x 1.5 mm), is larger than the 0402 and 0805 sizes. Its larger size provides better power handling and durability, making it ideal for high-power circuits and industrial electronics where require more robust resistors.

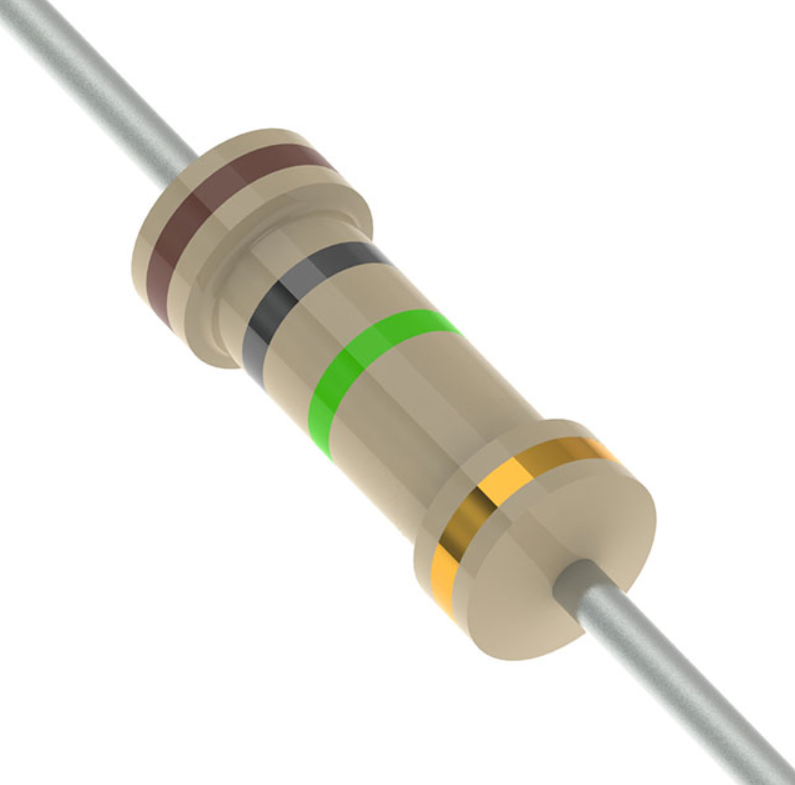

1M Ohm Carbon Film Resistor

Made by depositing a thin layer of carbon onto a ceramic rod. A cost-effective option suitable for general-purpose applications but typically has higher tolerance and noise compared to metal film types. These resistors commonly use in basic power supplies and audio equipment where high precision is not critical. The primary advantage of carbon film type is their affordability and ease of availability.

1M Ohm Metal Film Resistor

Features a thin layer of metal oxide deposited on a ceramic substrate. It offers superior precision and stability compared to carbon film types. These resistors often use in high-precision circuits, such as in audio equipment, measurement instruments, and timing circuits. The main advantages of metal film types are their low noise, high accuracy, and long-term stability, making them ideal for sensitive applications that require consistent performance over time.

1M Resistor Color Code

Colour codes are a way to easily identify the resistance value of a resistor using colored bands. For a 1 M Ohm, the colors can interpret in two common formats: 4-band and 5-band.

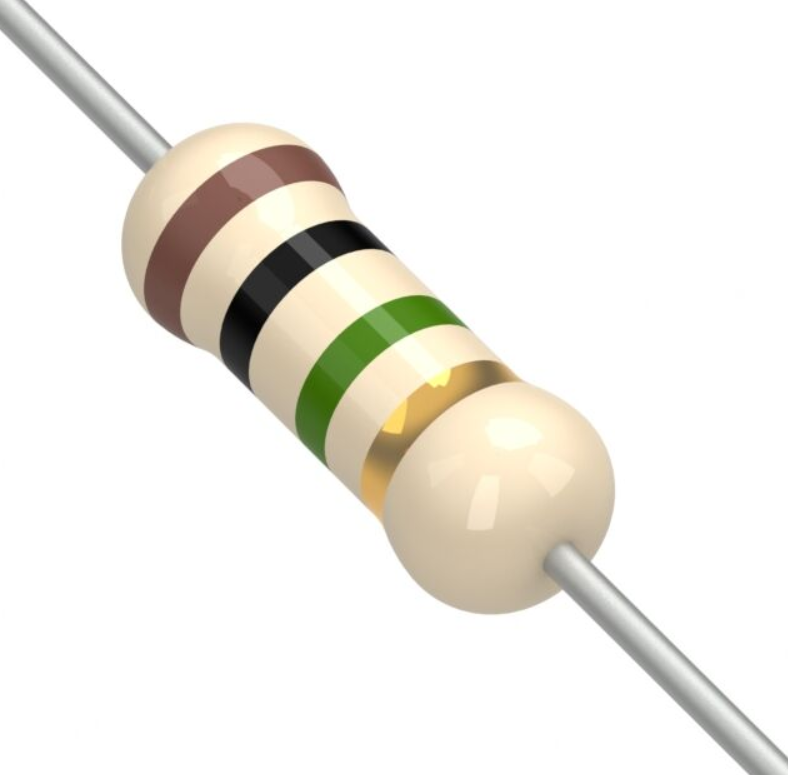

4 Band Resistor Color Code 1M Ohm

The first two bands (Brown and Black) give you the significant digits: 1 and 0, which form 10. The third-band (Green) multiplies the result by 100,000. The fourth-band (Gold) indicates that the resistor’s value can vary by ±5% of the nominal value. Thus, Brown, Black, Green, Gold corresponds to 1M Ohm ±5%.

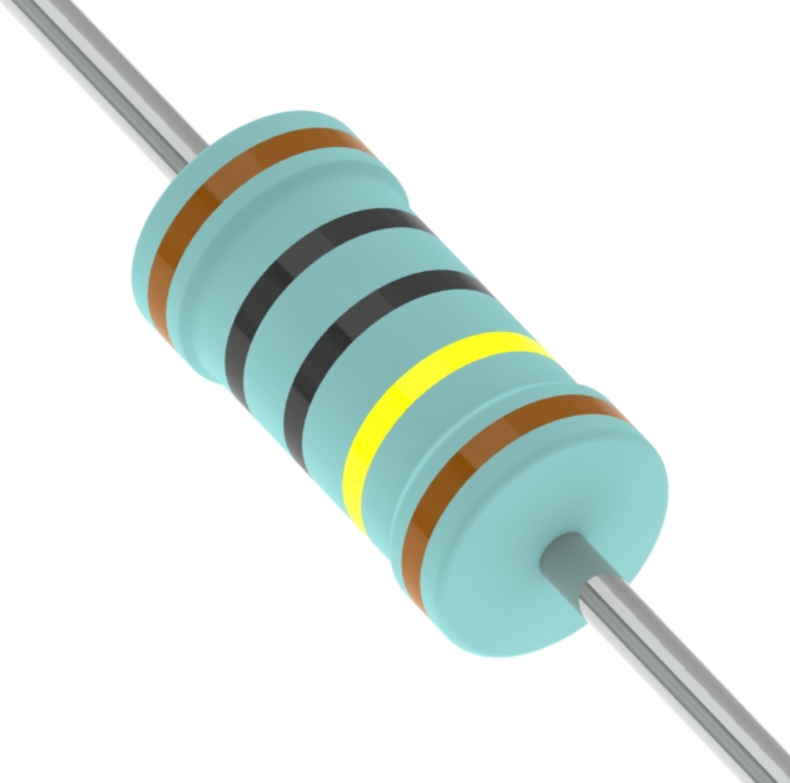

1M Ohm Resistor Color Code 5 Band

The first three bands (Brown, Black, Black) represent the significant digits: 1, 0, and 0, forming 100. The fourth-band (Yellow) is the multiplier, which is x 10,000. The fifth-band (Brown) indicates a tolerance of ±1%, meaning the actual resistance value can vary by 1% above or below the stated value. Thus, Brown, Black, Black, Yellow, Brown corresponds to 100 x 10,000 = 1,000,000 Ohms (1M Ohm) with a tolerance of ±1%.

How They Differ in Reading the Resistance Value:

In a 4-band coding, the first two bands represent the significant digits (e.g., 10 for Brown, Black), the third-band is the multiplier (Green for x100,000), and the fourth-band is the tolerance (Gold for ±5%).

In a 5-band coding, the first three bands represent the significant digits (e.g., 100 for Brown, Black, Black), the fourth-band is the multiplier (Yellow for x10,000), and the fifth-band is the tolerance (Brown for ±1%).

5-band resistors provide more precise and accurate values, making them suitable for more critical applications. 4-band types, while less precise, still widely use in everyday electronics and general-purpose circuits.

1M Resistor Applications

1 M resistors use in a variety of electronic applications as its high resistance value, which makes it ideal for circuits that require minimal current flow or high impedance. Here are some common uses:

Voltage Dividers

One of the most common applications is in voltage dividers. In these circuits, two resistors use to divide an input voltage into smaller, more manageable output voltages. The 1 M Ohm helps to create the appropriate voltage ratio, especially in high-impedance circuits.

Pull-Up and Pull-Down Resistors

In digital circuits, 1M Ohms are frequently used as pull-up or pull-down resistors. They ensure that an input pin of a microcontroller or logic gate is at a defined logic level (either high or low) when apply no active signal. The high resistance value prevents excessive current flow while maintaining the signal’s integrity.

Biasing in Transistor Circuits

Use in biasing circuits for transistors, where they help set the operating point of the transistor. This is particularly important in amplifiers and oscillators to maintain stable operation over time and varying environmental conditions.

Signal Conditioning

In signal conditioning circuits, use it to filter, attenuate, or adjust the impedance of signals. Often to match the impedance of different parts of a system, ensuring optimal signal transfer and minimizing signal loss.

Timing Circuits

Often use in RC (Resistor-Capacitor) timing circuits, where they help set the timing characteristics of oscillators, clocks, and pulse-width modulation (PWM) circuits. They work with capacitors to determine the frequency or timing interval based on the resistor's value.

High-Impedance Inputs

In circuits requiring high-impedance inputs, such as sensors or analog-to-digital converters (ADC), 1 M Ohms help minimize the current drawn from the input source. This is particularly useful in measuring weak signals or for devices that need minimal load on the input.

Testing and Calibration

Use in test equipment for calibration and measurement purposes, where need precise resistance values for accurate measurements of voltage, current, or resistance. They often use in voltage reference circuits or as part of a known resistance in a testing setup.

High-Voltage Applications

Some 1 M Ohms are rated for high-voltage applications (e.g., 10kV resistors), where they can safely dissipate large amounts of energy while limiting current flow in circuits that operate under high voltage. These use in power supplies, electrical testing, and certain industrial equipment.

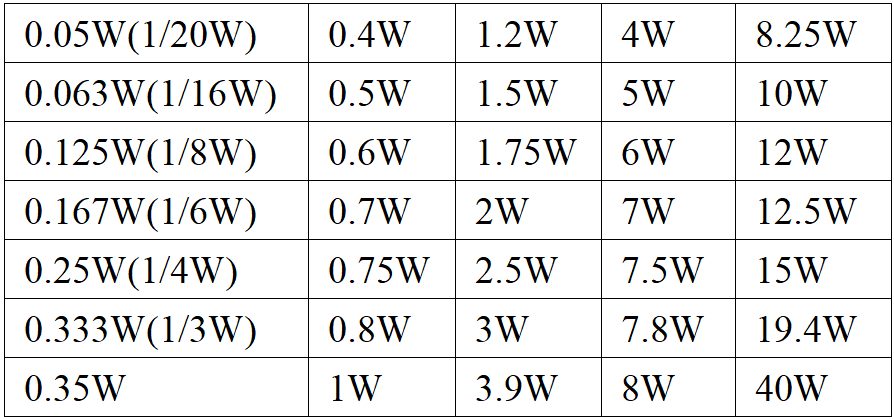

Power Ratings and Tolerance of 1M Resistors

The wattage rating indicates how much power it can safely dissipate without damage.

1M Ohm 1/4 Watt Resistor (0.25W)

1/4W can dissipate up to 0.25 watts of power. This is one of the most commonly used power ratings for resistors in general-purpose electronics. Suitable for low-power circuits, such as signal processing, low-voltage analog circuits, or power supplies with minimal current draw. 0.25 W is ideal for general-purpose use, providing reliable performance in everyday applications.

Applications include general-purpose resistors, signal conditioning, and small-scale electronics. Its main advantage is its low cost and availability in various electronic devices.

1M Ohm 1/2 Watt Resistor

1/2 W is capable of handling up to 0.5 watts of power. This power rating often use in slightly higher-power applications where involve a bit more current. It provides a larger margin for safety compared to the 1/4 watt, making it suitable for slightly higher voltage or current levels. Often choose this type when the power dissipation needs exceed the capabilities of the 1/4 watt version.

Applications include power supplies, voltage dividers, and low-to-medium power circuits. Its advantage is the added power handling capability compared to the 1/4w version, ensuring reliability in moderate power environments.

1M Ohm 1 Watt Resistor

1W is ideal for circuits with higher current levels or those requiring higher power dissipation. It often find in circuits with moderate power needs, such as in audio equipment, analog signal processing, or higher-current voltage dividers. The 1-watt provides greater stability and longevity in circuits where higher power is a requirement.

Applications include audio systems, power supply circuits, and high-impedance analog systems. Its advantage is the ability to handle more power, ensuring durability and stability in more demanding circuits.

1M Ohm 14W Resistor

14W is a high-power circuit capable of handling up to 14 watts of power. This use in more specialized applications that require significant power dissipation, such as industrial or heavy-duty electronic systems. It typically use in high-power voltage regulation, high-current protection circuits, or power resistors in electrical distribution systems. This high-power rating ensures that the resistor can safely handle large amounts of energy without risk of overheating or failure.

Applications include high-power industrial electronics, large power supplies, and power grid systems. The advantage is that it can dissipate large amounts of power, making it ideal for high-load applications.

1M Ohm 10kv Resistor

10KV rate to handle voltages up to 10,000 volts. These resistors design for high-voltage applications, typically find in electrical testing equipment, high-voltage power supplies, and other industrial environments where voltage levels are extremely high. The high voltage rating makes them essential for safety and reliability in systems where electrical isolation and current limiting are critical. Use in environments where there is a need to handle high-voltage surges without damage.

Applications include high-voltage power supplies, electrical testing, insulation monitoring, and industrial systems. The advantage is that they design to operate safely in high-voltage environments, offering protection against electrical surges.

Tolerance defines the allowed deviation from the nominal value (1,000,000 Ohms). The Resistance Range shows the minimum and maximum values the resistor can have, given the tolerance. For example, a 1M Ohm with 0.1% tolerance have a resistance range between 999,000 and 1,001,000 Ohms.

For 1 M resistors, the most commonly used tolerances are 1% for general-purpose circuits and 5% for lower-cost, non-precision applications. For high-accuracy needs, 0.5% or 0.1% use in precision instruments and measurement equipment.

How to Select the Right Resistor 1M Ohm

When selecting 1M resistors for your project, consider these factors:

Power Rating: Choose component with a power rating higher than the maximum power it will dissipate. For low-current circuits, 1/4 or 1/2 watt suffice, while high-voltage or industrial circuits require 1W or higher.

Tolerance: Determine the precision needed. 1% is common for general-purpose circuits, 5% for non-critical applications, and 0.1–0.5% for high-accuracy designs.

Resistor Type: Decide between Axial (carbon film, metal film,) or SMD resistors. Metal film offers better stability and lower noise, while carbon film is cost-effective. SMD resistors suit compact PCB designs.

Physical Size and Packaging: Ensure the component fits your design. SMD sizes such as 0402, 0603, 0805, 1206 use for surface-mount designs, whereas through-hole packages are bulkier.

Temperature Coefficient: Choose a circuit with a suitable temperature coefficient for the environment. Low coefficients prevent resistance drift in varying temperatures.

Environmental Conditions: Consider humidity, vibration, or high-voltage exposure. High-power, high-voltage, or coated resistors require for industrial or harsh environments.

Selecting the right 1 M Ohms involves balancing power handling, precision, size, type, and environmental resilience to ensure your circuit performs reliably over time.

1M Ohm Resistor vs. Other Resistance Values

1-Ohm: Low resistance, used for current sensing, load testing, and power regulation. It allows high current to flow while producing minimal voltage drop.

10-Ohms: Used in LED circuits, current limiting, and small power applications, providing moderate resistance to control current safely.

100-Ohms: Common in signal limiting, LED protection, and low-power circuits, balancing current flow and voltage drop.

1K Ohm: Widely used in pull-up/pull-down resistors, voltage dividers, and general-purpose electronics, offering moderate resistance for digital and analog circuits.

10K Ohm: Often used in sensor inputs, RC timing circuits, and voltage dividers, providing higher resistance for lower current applications.

100K Ohm: Typical in high-impedance circuits, signal conditioning, and voltage dividers, minimizing current draw in sensitive circuits.

1M Ohm: High resistance for high-impedance inputs, timing circuits, voltage dividers, and biasing, suitable for applications requiring low current flow.

1M Ohm Variable Resistor

1 M Ohm variable, also known as a potentiometer or trimmer, is a resistor whose resistance can adjust manually or electronically. It allows fine-tuning of voltage, current, or signal levels in a circuit.

Construction: It typically consists of a resistive track made of carbon, cermet, or conductive plastic, with a wiper that slides along the track to vary the resistance. The terminals connect the resistive track and wiper to the circuit.

Applications: 1M variable resistors commonly use in volume controls, signal tuning, calibration circuits, voltage dividers, and RC timing circuits.

Advantages: They provide adjustable resistance, enabling precise control over circuit behavior, easy calibration, and flexibility in prototyping and fine-tuning electronic devices.

They are available in panel-mounted rotary potentiometers for user adjustment or trimmer potentiometers for circuit calibration during assembly or maintenance.

Frequently Asked Questions about 1M Resistors

How many ohms is 1M resistor?

1M-resistor has a resistance of 1,000,000 ohms. The “M” stands for mega, which equals one million. A high-resistance component commonly use in circuits that require minimal current flow, high-impedance input stages, voltage dividers, and timing circuits. It allows precise control of current in sensitive electronic applications.

What devices contain 1M ohm resistor?

Find 1M Ω in devices such as sensor circuits, audio equipment, measurement instruments, high-voltage dividers, amplifiers, microcontroller inputs, oscillators, and RC timing circuits. They use where need high resistance to limit current or set biasing in sensitive or high-impedance circuits. These circuits help protect components and ensure accurate signal processing.

What is 1M ohm resistor price?

The pricing of 1M Ohms varies depending on type, tolerance, power rating, and manufacturer. Standard 1/4 watt carbon or metal film types usually cost US$0.005–$0.50 per piece, while precision type, high-power, or high-voltage 1 M Ohm can cost several dollars each. Prices also vary based on bulk purchasing and sourcing from suppliers.

What color is a 1M ohm resistor?

1 M Ω resistor has color bands depending on its coding. For a 4-band code, the colors are Brown, Black, Green, Gold. For 5 band, the bands are Brown, Black, Black, Yellow, Brown. The first three bands represent significant digits, the next the multiplier, and the final band shows the tolerance.

What is a 1M ohm resistor used for?

Use in high-impedance circuits, voltage dividers, timing circuits, transistor biasing, pull-up/pull-down applications, signal conditioning, and RC networks. Their high resistance allows minimal current flow, making them suitable for sensitive electronics, precise measurement devices, and low-current analog circuits where limiting current or voltage is essential.

What is equivalent to a 1M ohm resistor?

An equivalent to 1 M Ohms can achieve by connecting resistors in series or parallel. For example, ten 100k-Ohms in series equal 1M-Ohm, while 2 x 2M-Ohm resistors in parallel also give 1M Ohm. The choice depends on tolerance, power rating, and availability in the circuit.

What are the common power ratings for 1M resistor?

Common 1M Ω wattage ratings include 1/4w (0.25W), 1/2w (0.5W), 1 watt (1W), 14 watts (14W), and high-voltage types rated for up to 10kV. The rating determines how much power the circuit can safely dissipate without overheating. Low-power circuits typically use 1/4 or 1/2 watt, while industrial or high-voltage circuits need higher ratings.

Can 1M ohm resistors fail, and how?

Yes, 1M Ohm resistors can fail as overheating, excessive voltage, mechanical stress, or aging. Thermal overload can burn the resistor, while high voltage can cause dielectric breakdown. Environmental factors such as humidity or corrosion alter resistance. Failures often result in open circuits, drift in resistance, or short circuits, affecting the circuit’s performance and requiring replacement.

Choosing the right 1M ohm resistor for your project is necessary to ensure your circuit works efficiently. By understanding the resistor's specifications, applications, and different types, you can select the ideal component for your design needs.
