The Guide to 2 Ohm Resistor

2 ohm resistor is one of the most fundamental components in electronics. Whether you’re designing audio circuits, power supplies, or just tinkering with electronics, understanding the resistors 2Ω is necessary. This guide covers the details of the 2-ohms, its types, characteristics, applications, and how to select the right one for your project.

1. What is a 2 Ohm Resistor?

2. Types of 2 Ohm Resistors

3. Key Characteristics of 2.0 Ohm Resistor

4. 2 Ohm Resistor Color Code

5. Common Applications of 2 Ohms Resistor

6. How to Calculate Voltage Drop Across a 2 Ohm Resistor

7. Selecting the Right Resistor 2 Ohm

8. Practical Considerations When Using a 2 Ohm Resistor

9. Frequently Asked Questions

What is a 2 Ohm Resistor?

An electrical component that resists the flow of electrical current, offering a resistance of 2 ohms. A fundamental part of many electronic circuits, playing a role in controlling current flow, adjusting voltage, or limiting the amount of power supplied to other components. The value "2-ohm" refers to the resistor's ability to resist current, determining how much current can pass through when apply a given voltage across it.

The 2 Ω type use in a wide range of applications, from low-power circuits to high-power systems. They commonly find in audio circuits, especially in speaker systems, where they help match impedance and prevent excess current from damaging sensitive components. They also use in power supplies to regulate voltage and in voltage dividers to set specific voltage levels within a circuit.

Types of 2 Ohm Resistors

Available in several types of 2ohms, each design with different construction materials and characteristics to suit specific applications. Below are the most common types:

Axial Resistor

A traditional type of resistor with leads extending from both ends, making it suitable for through-hole mounting on a PCB (Printed Circuit Board).

Metal Film Resistor

Make with a thin metal layer deposited on a ceramic core. It offers high precision and low noise, with tight tolerances (often ±1% or better). Use in precision circuits where require accurate resistance, such as in measurement devices, audio amplifiers, and precision voltage dividers. Have a low temperature coefficient, meaning their resistance changes little with temp. fluctuations.

Carbon Film Resistor

Make by depositing a thin layer of carbon onto a ceramic substrate. Typically less precise than metal film types, with a wider tolerance (±5% or more). They are suitable for general-purpose applications, such as in consumer electronics, power supplies, and signal processing. Carbon film types are economical, easy to manufacture, and generally more resistant to damage as their rugged construction.

Wire-Wound Resistor

Make by winding a metal wire (usually nichrome) around a core, typically made of ceramic. Know for their high power rating and high precision, but they have a higher inductance, which can affect high-frequency performance. Use in high-power applications or situations requiring stable resistance under load, such as in power supplies, heating elements, and load testing. They can handle higher power dissipation compared to other resistors types but less suite for high-frequency or sensitive analog applications as their inductance.

Metal Oxide Film Resistor

Male with a layer of metal oxide, typically tin oxide or indium oxide, coated on a ceramic substrate. Offer high stability and high-temperature tolerance. Metal oxide types are generally more durable and can operate in high-temperature environments better than metal film type. Use in circuits that need to withstand higher temperatures, such as in power electronics, automotive applications, and high-power circuits.

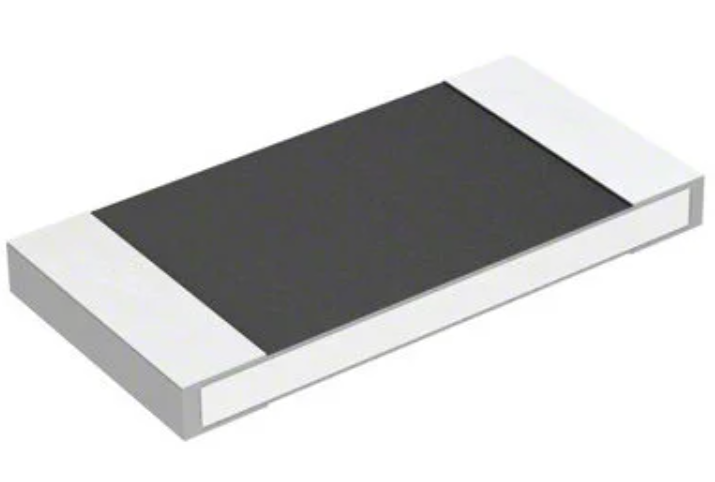

2 Ohm SMD Resistor

A 2-ohms Surface Mount Device is a compact type design for surface-mount technology (SMT) applications. Unlike traditional axial or radial resistors, SMD packages mount directly onto the surface of a PSB rather than having leads that go through the board. This design makes them ideal for modern electronics that require compact, high-density layouts, such as smartphones, computers, and other space-constrained devices.

Commonly use in voltage regulation circuits, where it helps limit current and prevent overvoltage conditions.

Common package sizes for SMD resistors include 0603 (0.06" x 0.03"), 0805 (0.08" x 0.05"), 1206 (0.12" x 0.06"), and 2010 (0.20" x 0.10"). Choose each size based on the required power rating and available space on the PCB. Smaller sizes 0603 typically use in low-power applications, while larger sizes such as 1206 prefer for higher power dissipation needs.

Key Characteristics of 2.0 Ohm Resistor

These characters help you choose the right circuit for your application.

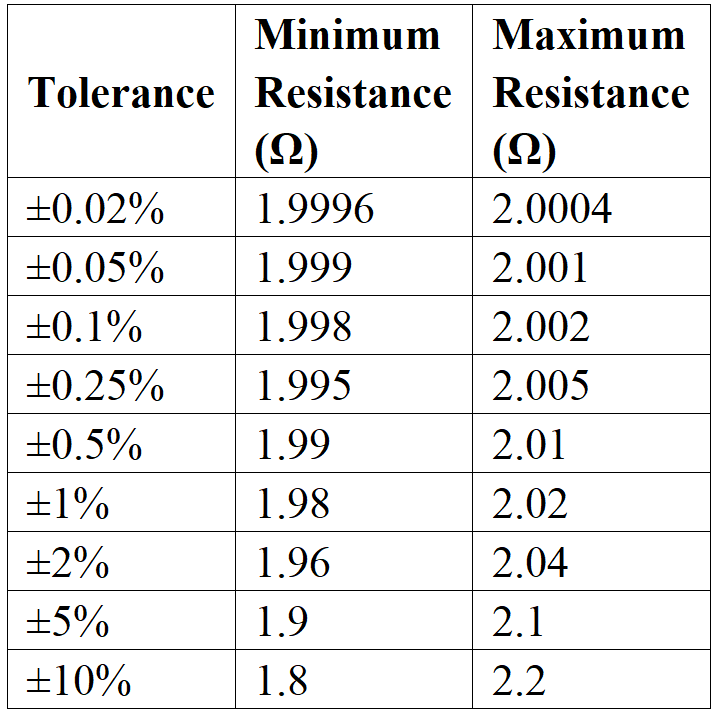

Tolerance

Refer to how much the actual resistance can vary from the specified value. For example, a ±1% tolerance means that the 2ohm's actual value can vary by 1% above or below the nominal value, have a resistance anywhere between 1.98-ohms and 2.02-ohms.

Common tolerance values include ±5%, ±1%, ±0.5%, and ±0.25%. High-precision applications require low-tolerance to maintain circuit accuracy.

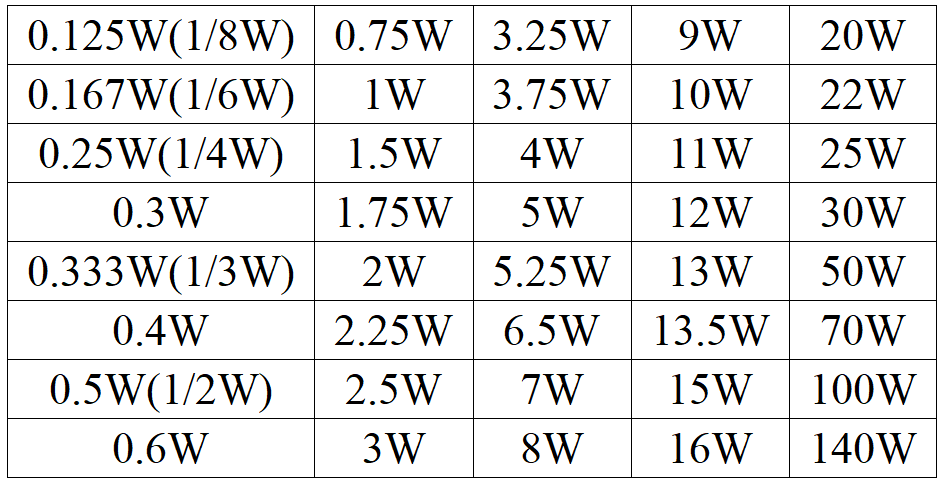

Power Rating

The wattage ratings of a 2.0 ohm indicates the maximum amount of power it can safely dissipate without overheating or being damaged. The following are common powering ratings:

2 Ohm 1/4 Watt Resistor: Suitable for low-power applications where current is limited.

2 Ohm 1 Watt Resistor: Can handle moderate power dissipation.

2 Ohm 2 Watt Resistor: Use in circuits where higher power is expected but not excessive.

2 Ohm 5 Watt Resistor: For power circuits where require substantial power dissipation.

2 Ohm 10 Watt Resistor: Design for even higher power applications, providing robust heat dissipation.

2 Ohm 20 Watt Resistor: Use in higher-power circuits, such as power supplies and amplifiers.

2 Ohm 25 Watt: Suitable for heavy-duty applications requiring significant power handling.

2 Ohm 50 Watt: Often use in high-current or high-power industrial applications.

100w: Typically use in high-power systems like amplifiers, power supplies, or electric heating systems.

The temperature coefficient (TC) measures how much a resistor’s resistance changes with temperature. A low temp. coefficient means the resistor’s value remains stable across temperature variations. For precision applications, often use resistors with a temperature coefficient as low as ±50 ppm/°C (parts per million per degree Celsius), ensuring minimal change in resistance with temperature fluctuations.

High TC resistors (e.g., carbon film) experience larger resistance variations with temperature changes, which can be problematic for sensitive circuits.

Low TC resistors (e.g., metal film) provide better stability in environments with varying temperatures, making them ideal for precision or high-stability applications.

2 Ohm Resistor Color Code

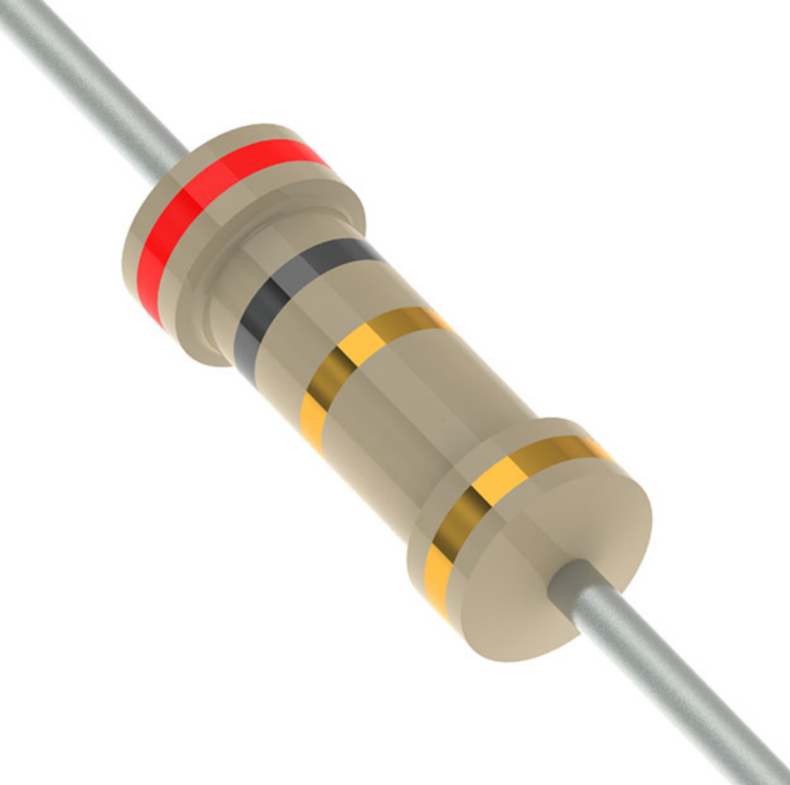

4-Band colors coding: Red-Black-Gold-Gold is one of the common type. Here's a breakdown of its meaning:

1. Red (First-Band) - 2

The first color band represents the 1^st-digit of the value. In this case, Red corresponds to the digit 2.

2. Black (Second-Band) - 0

The second colour band represents the 2^nd-digit of the value. Here, Black corresponds to the digit 0.

3. Gold (Third Band) - Multiplier (x0.1)

The third band is the multiplier. Gold indicates a multiplier of 0.1, meaning the two-digit number from the first and second bands (2 and 0) will be multiplied by 0.1 to get the final resistance value.

4. Gold (Fourth Band) - Tolerance (±5%)

The 4^th-band is the tolerance. Gold represents ±5% tolerance, meaning the actual resistance value can vary by 5% above or below the stated value of 2 ohms.

Summary:

The resistance value is 2 ohms. The tolerance is ±5%, meaning the actual resistance could range from 1.9ohms to 2.1ohms.

5-Band Colour Code: Red-Black-Black-Silver-Brown.

1. Red (First Band) - 2

This represents the 1^st-digit of the resistor value. In this case, Red corresponds to 2.

2. Black (Second Band) - 0

This represents the 2^nd-digit of the value. Black corresponds to 0.

3. Black (Third Band) - 0

This represents the 3^rd-digit of the value. Black corresponds to 0 again.

Now, you have the first three digits of the value: 2, 0, and 0, which gives you the number 200.

4. Silver (Fourth Band) - Multiplier (x0.01)

The 4^th-band is the multiplier. In this case, Silver corresponds to a multiplier of 0.01.

So, the resistor value will be: 200×0.01=2 ohms

5. Brown (Fifth Band) - Tolerance (±1%)

The 5^th-band is the tolerance, which indicates how much the actual resistance can vary from the marked value. Brown corresponds to a tolerance of ±1%.

Therefore, the actual resistance value can range from: 2ohms±1%=1.98 to 2.02ohms

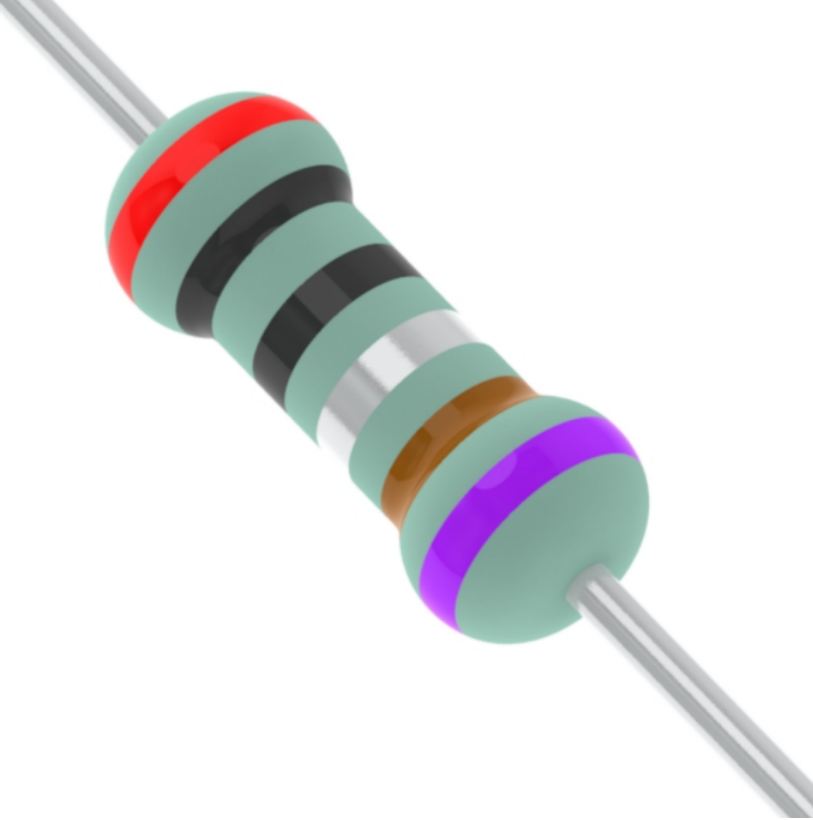

6-Band Colour Code: Red-Black-Black-Silver-Brown-Violet

Follows the standard color codes, which provides more precision in the resistor's value and tolerance. Let's break it down:

1. Red (First Band) - 2

The 1^st-band represents the first digit of the value. In this case, Red corresponds to the digit 2.

2. Black (Second Band) - 0

The second band represents the 2^nd-digit of the value. Black corresponds to the digit 0.

3. Black (Third Band) - 0

The third-band represents the 3^rd-digit of the value. Black corresponds to the digit 0.

4. Silver (Fourth Band) - Multiplier (x0.01)

The fourth-band is the multiplier. Silver corresponds to a multiplier of 0.01.

So, multiplying the three-digit number by the multiplier:

200×0.01=2-ohm

5. Brown (Fifth Band) - Tolerance (±1%)

The fifth-band represents the tolerance. Brown corresponds to ±1%, meaning the actual resistance could vary by 1 % from the marked value. Thus, the actual resistance could range from: 2 ohms±1%=1.98 to 2.02 ohms

6. Violet (Sixth Band) - Temperature Coefficient (±100 ppm/°C)

The sixth-band represents the temperature coefficient. Violet corresponds to a temperature coefficient of ±100 ppm/°C. This means the resistance will change by 100 parts per million for each degree Celsius change in temperature. It is an indication of the stability of the resistor's value in varying temperature conditions.

Common Applications of 2 Ohms Resistor

Have a variety of practical applications, especially when you need specific resistance in certain circuits. Here’s a breakdown of some common applications:

2 Ohm Resistor For Speakers

In audio amplifiers, can use 2Ω as a load resistor in speaker circuits. This helps ensure the amplifier sees a stable resistance, preventing overloads and ensuring proper impedance matching. Speakers typically have impedances such as 2-ohms, 4-ohms, or 8-ohms. For low-impedance speakers, use a 2-ohm to adjust the resistance or match it with the amplifier output to ensure optimal performance. In some circuits, can use a 2-ohm to limit the current flowing through the speaker, helping protect sensitive components.

Current Limiting

Often used in circuits for current limiting. This ensures that current flowing to a component such as an LED or a small motor stays within safe limits.

Voltage Division

Can be part of a voltage divider circuit, where use to create specific voltage drops. By combining the 2-ohm with others, designers can get the desired voltage for various components in the circuit.

Power Supply Regulation

Use in voltage regulation circuits, where they help stabilize the output of a power supply, ensuring consistent performance even with varying loads.

High-Power Applications

Use to dissipate significant amounts of power. For instance, power resistors with higher wattage ratings (such as 5W, 10W, or even higher) use 2-ohm values to handle more energy in electric motors and industrial control systems.

Pulse Circuits

In pulse circuit or signal conditioning, can use 2-ohm to shape, filter, or modify signals by providing resistance in certain parts of the signal path, such as in combination with capacitors.

In Summary

2-ohm commonly use in speaker circuits, current-limiting applications, voltage dividers, and power regulation circuits. They are necessary in providing resistance to ensure stable current and voltage, especially in high-power audio systems or amplifiers.

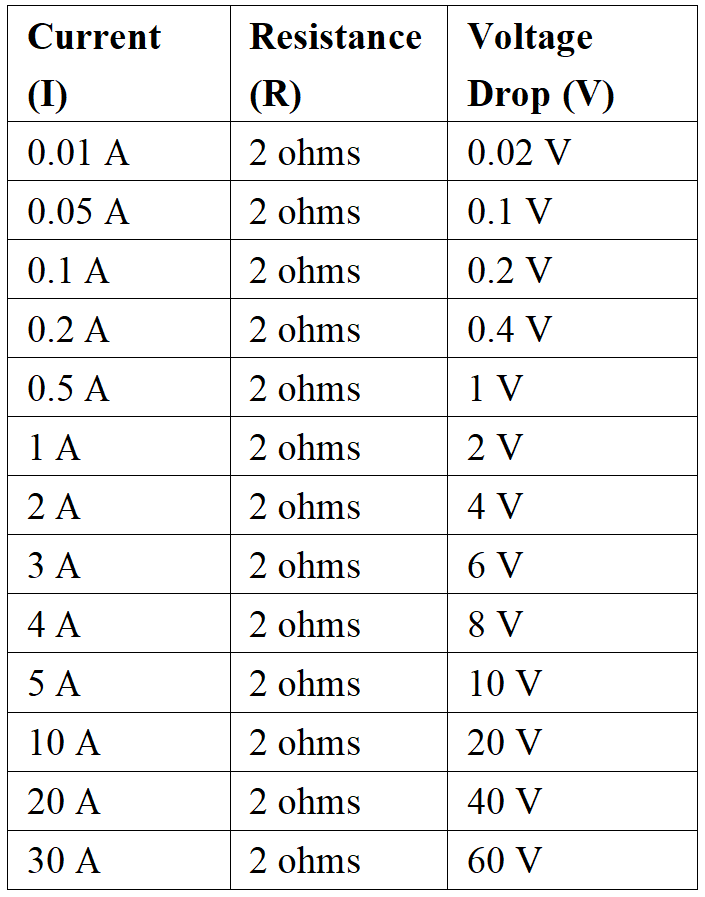

How to Calculate Voltage Drop Across a 2 Ohm Resistor

To calculate the voltage drop across a 2-ohm, you will use Ohm's Law, which relates voltage, current, and resistance in an electrical circuit.

Ohm's Law Formula: V = I × R

V is the voltage drop across the resistor (measured in volts).

I is the current flowing through the circuit (measured in amperes or amps).

R is the resistance (measured in ohms). In this case, R = 2 ohms.

Steps to Calculate the Voltage Drop:

1.Determine the Current (I):

First, you need to know how much current is flowing through the 2-ohm. This can either provide in the problem or measured in a real circuit using an ammeter.

2.Substitute Values into Ohm's Law:

Once you know the current, substitute the current value and the resistance into the Ohm's Law formula.

3.Calculate the Voltage Drop:

Multiply the current (I) by the resistance (R=2 ohms) to find the voltage drop across the resistor.

Example 1:

Suppose you have a circuit where 3 A (amps) of current flows through the 2-ohm. Using Ohm's Law:

V = I × R   V = 3 A × 2 ohms   V = 6 V

So, the voltage drop across the 2-ohm is 6 volts.

Example 2:

Now, suppose the current is 0.5 A.

Using Ohm's Law:

V=0.5 A×2-ohms    V=1 V

So, the voltage drop across the 2-ohm resistor is 1 volt.

Why Does This Work?

The voltage drop across a circuit is the amount of energy that lost (or use) by the resistor when current flows through it. This is as the resistance offered by the material. According to Ohm's Law, the amount of voltage drop depends on how much current is flowing through the circuit and the resistance value.

Higher current: Results in a larger voltage drop.

Higher resistance: Also results in a larger voltage drop.

In this case, since you're dealing with a 2-ohm, the voltage drop will depend directly on the current flowing through the circuit.

Selecting the Right Resistor 2 Ohm

When selecting the right 2-ohm circuit, there are several factors to consider to ensure optimal performance and reliability in your circuit. These factors include:

Power Rating: Indicates the maximum amount of powering it can dissipate without being damaged. You should choose a power rating that matches or exceeds the power requirements of your circuit. If the resistor dissipates more power than its rated capacity, it could overheat and fail. Common power ratings for resistors are 0.25 W, 0.5 W, 1W, 2W, and higher.

Tolerance: Refers to how much the actual resistance can vary from the nominal value. Tighter tolerances are ideal for sensitive circuits, while looser tolerances may be acceptable for general-purpose or non-critical applications.

Temperature Coefficient: Indicates how much the resistance value will change with temperature. A temperature coefficient in the range of ±100 ppm/°C or lower is common for precise applications, while higher values may be acceptable for less critical uses.

Inductance: The ability to resist changes in current, and it can be an important factor in high-frequency circuits. For a 2-ohm, generally prefer low inductance in high-speed or RF (radio frequency) applications, as higher inductance can affect the performance of the circuit by introducing unwanted reactance. Resistors design for high-frequency applications usually construct with materials that minimize inductance.

Physical Size: The physical size of the resistor affects both the power rating and the resistance stability. Larger dimensions can handle higher power ratings and often have lower tolerances. When selecting, ensure that the physical size fits your circuit layout and that it can dissipate the required amount of power without overheating. Smaller SMD (surface-mount device) packages are appropriate for compact designs, while larger through-hole types are better for handling higher power or providing better heat dissipation.

Environmental Conditions: Resistors expose to various environmental conditions like humidity, temperature extremes, and potential corrosive elements. For a 2-ohm use in industrial, outdoor, or other harsh environments, select one with a suitable enclosure or coating to protect it from moisture, dust, and corrosion. Additionally, consider factors such as vibration resistance and shock tolerance in rugged applications.

Practical Considerations When Using a 2 Ohm Resistor

When using a 2-ohm in a circuit, there are several practical factors that you need to keep in mind to ensure that the resistor functions as expected and does not lead to circuit failure. These considerations include:

Current Handling: The currents flowing through the circuit should not exceed its rated capacity. When use a 2 ohms, ensure that the current does not cause a voltage drop that exceeds the resistor’s power rating. If the current is too high, it will cause a large voltage drop across the resistors, leading to heat generation and possible damage to the resistor or surrounding components.

Tolerance and Precision: Indicates how much the actual resistance value can vary from its nominal value. If precision is critical in your application, choose a resistor with a tighter tolerance. For instance, a ±1% tolerance are suitable for many applications, but for high-precision circuits, you need a ±0.1% or ±0.05% tolerance. Inaccurate components will lead to incorrect voltage drops, current flow, and could affect the overall performance of the circuit.

Temperature Sensitivity: Resistance values can change with temperature as the temp.coefficient. If the resistor expose to temperature changes, the resistance value increase or decrease, affecting the circuit’s stability. Choose circuits with a suitable temperature coefficient if you are working in environments with significant temperature variation.

Inductance and High-Frequency Applications: When using in high-frequency or RF (radio frequency) circuits, be aware that resistors can have inductive properties. High-frequency currents can interact with the resistor’s inductance, causing undesirable effects such as signal distortion or phase shift. For high-frequency applications, select specifically design for low inductance and high-speed circuits.

Circuit Design and Impedance Matching: In audio or power circuits, you need a 2-ohm to match the impedance of speakers or to balance the load in a power system. In such cases, it is important to ensure that the resistor’s value matches the requirements of the circuit and that it does not cause excessive power loss or distortion.

Series and Parallel Configurations: If the 2-ohm is part of a series or parallel configuration, the total resistance will change based on the number of resistors and their arrangement. When resistors are in series, their resistances add, while in parallel, the total resistance decreases. Ensure that these changes factor into your circuit design.

Frequently Asked Questions

What’s the current in the 2 ohm resistor?

Depends on apply the voltage across it, according to Ohm’s Law. The current flowing through the resistor is directly proportional to the applied voltage and inversely in proportion to the resistance. So, if the voltage across the circuit increases, the current will increase, and if the resistance increases, the current will decrease. For a given circuit, if know the voltage, can calculate the current easily by dividing the voltage by the resistance. In general, higher voltage results in a more current through the 2-ohm, assuming the resistance remains constant.

Where to Buy 2 Ohm Resistors?

You can buy from a variety of online and physical electronics retailers. Websites Orwintech Electronics offer a wide range of resistors in different values, including 2 ohms. And offer specific and bulk purchases, offer competitive pricing. Additionally, local electronics component stores often carry standard resistor values. Make sure to check for proper power ratings, tolerance, and other specifications when purchasing, depending on your circuit needs.

What does a 2 ohm resistor do?

A 2-ohms limits the current in a circuit by providing resistance to the flow of electrons. It often use to control voltage levels, protect components from excessive current, or set the current in specific applications. In speaker circuits, use a 2-ohm to match the impedance of an amplifier and speaker, ensuring optimal power transfer. It can also serve in power supplies or voltage divider circuits, where need precise resistance. In general, its role is to maintain stability and protect other components from overcurrent conditions.

What is the color code for a 2 ohm resistor?

For a 2-ohm with a 4-band colour coding, the colors are Red (2), Black (0), Gold (multiplier of x0.1), and Gold (tolerance of ±5%). In the 5-band colour code, the colors are Red (2), Black (0), Black (0), Silver (multiplier of x0.01), and Brown (tolerance of ±1%). For a 6-banding, the code would include an additional band for temperature coefficient, but the base color codes for the first three digits and the multiplier remain similar.

Is 1 ohm better than 2 ohms?

Whether a 1-ohm is better than a 2-ohm depends on the specific application. A 1-ohm would allow more current to flow in the circuit than a 2-ohms when subjected to the same voltage, making it suitable for lower resistance needs. However, for applications requiring higher resistance or current limiting, a 2-ohm is more appropriate. The "better" option depends on the circuit's power requirements, voltage levels, and whether you need to limit current flow or create a specific voltage drop.

What hits harder, 2-ohm or 4 ohm?

In audio systems, a 2-ohm speaker tends to draw more power than a 4-ohm speaker when connected to the same amplifier, as lower impedance allows more current to flow. However, this doesn’t necessarily mean it "hits harder." A 2 ohms speaker can produce louder sound at the same power, but it may strain the amplifier more and require better cooling. On the other hand, a 4-ohm speaker is generally safer for most amplifiers, providing a balance between power handling and durability, but a 2-ohm speaker can be more efficient in specific high-power setups.

Is 2 ohms high?

Whether consider 2 ohm high depends on the context in which it  use. Resistance 2-ohms is relatively low compared to higher resistance values such as 100-ohms or 1k-ohm, making it suitable for power applications where require high current. In audio systems, 2-ohm speakers are low-impedance, meaning they allow more current to flow, which can produce more sound power but requires an amplifier that can handle the higher current. In general, 2 ohms not consider high but is still notable in circuits where precise control over current is necessary.

Can 2 ohm resistors be used in audio circuits and what are the considerations?

Yes, can use 2-ohm in audio circuits, especially in impedance matching applications. However, there are key considerations to keep in mind. A 2-ohms often use to match the impedance of 2ohm speakers with an amplifier design. The amplifier must be capable of handling the increased current demand of a 2-ohm load, as low-impedance speakers draw more current. Using a 2-ohm also require higher power-rated, as excessive power dissipation can cause heating. Ensure that the amplifier and resistor's power ratings align with your circuit’s needs.

In conclusion, a 2 ohm resistor plays a role in various electronic circuits, offering a specific resistance that use to control current flow, set voltage levels, and protect components from excessive power. Its applications are wide-ranging, from audio circuits for impedance matching to power regulation in voltage dividers. When selecting a 2-ohms, it's necessary to consider factors such as power rating, tolerance, temperature coefficient, and the environmental conditions in which the resistor will operate. Properly understanding these elements ensures reliable performance, efficient energy use, and the longevity of both the resistor and the surrounding components. Whether you’re designing a high-power audio amplifier or building a basic circuit, it remains a versatile and important choice for managing electrical characteristics effectively.
