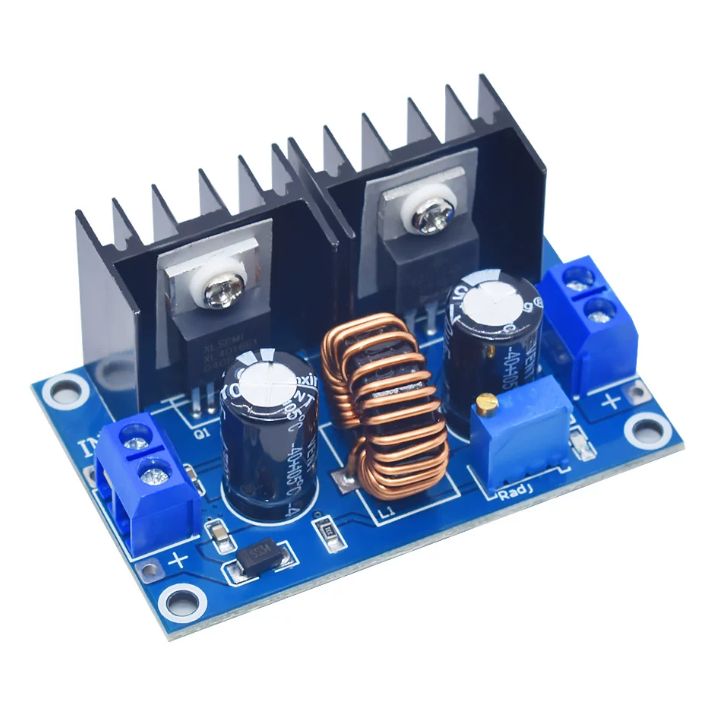

XL4016 Step Down Buck Converter Module Board: XL4016E1 Guide

The XL4016 step down buck converter is a high-power DC-DC voltage regulator designed to efficiently convert a higher DC voltage into a lower adjustable output voltage. Based on the XL4016E1 switching regulator IC, this module supports up to 8A maximum output current, making it suitable for powering LED lighting, battery charging, industrial equipment, robotics, and Arduino projects.

With a wide input voltage range, high conversion efficiency, and adjustable output voltage, the XL 4016 module is an excellent solution whenever require stable DC voltage regulation.

1. What is the XL4016 Step Down Buck Converter?

2. Pinout

3. Features and Specifications

4. Applications

5. XL4016E1 DC-DC Buck Converter with PWM Adjustable

6. XL4016 DC-DC Step Down with Display

7. XL4015 vs XL4016

8. Frequently Asked Questions [FAQ]

What is the XL4016 Step Down Buck Converter?

The XL4016 is a high-power DC-DC voltage regulator module designed to efficiently reduce a higher DC input voltage to a lower, adjustable output voltage. Based on the XL4016E1 switching regulator IC, it supports an input voltage range of 4V to 38V DC and provides an adjustable output from 1.25V to 36V DC. With a maximum output current of 8A (5A recommended for continuous operation) and conversion efficiency of up to 95%, it is an ideal solution for applications requiring stable, high-current power conversion.

Using advanced PWM (Pulse Width Modulation) switching technology, the XL4016 minimizes power loss and heat generation compared to traditional linear regulators. Widely used in battery charging systems, LED power supplies, automotive electronics, solar energy projects, industrial equipment, robotics, and DIY electronic projects where efficient DC voltage regulation is essential.

XL4016 Pinout

The module uses four simple connection terminals.

Pin Description

IN- (Input Negative)

Connects to the negative terminal of the DC input power supply.

IN+ (Input Positive)

Connects to the positive terminal of the input voltage source.

OUT- (Output Negative)

Provides the negative terminal of the regulated output voltage.

OUT+ (Output Positive)

Provides the adjustable positive output voltage for powering loads.

XL4016 Features and Specifications

The XL 4016 module offers an excellent balance between output power, efficiency, and ease of use.

Main Features

· Wide 4–38V input voltage range

· Adjustable 1.25–36V output

· High efficiency up to 95%

· Maximum 250W output power

· 180KHz switching frequency

· Supports high-current applications

· Stable PWM buck conversion

· Compact PCB design

· Easy screw-terminal connections

· Suitable for continuous industrial operation with proper cooling

Applications of XL4016 Step Down Converter

The XL4016 is suitable for numerous DC voltage conversion applications.

Adjustable Bench Power Supplies

Convert higher DC voltages into adjustable laboratory power supplies.

Battery Charging

Ideal for charging lithium batteries, lead-acid batteries, and other rechargeable battery packs with adjustable voltage output.

LED Drivers

Power high-power LED strips and lighting systems while maintaining stable voltage.

Automotive Electronics

Reduce vehicle battery voltage for dash cameras, displays, communication equipment, and embedded electronics.

Solar Power Systems

Regulate voltage from solar panels to batteries or DC-powered devices.

Industrial Equipment

Provide regulated DC power for PLCs, sensors, controllers, and automation systems.

DIY Electronics

Perfect for Arduino, Raspberry Pi, robotics, IoT devices, and prototype development.

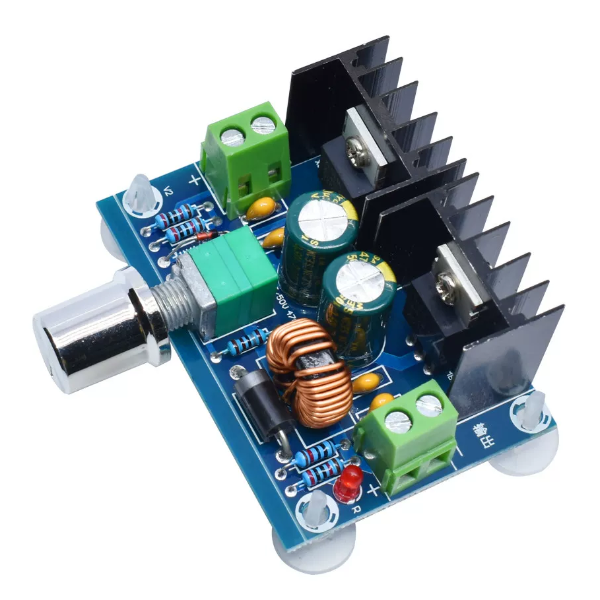

XL4016E1 DC-DC Buck Converter with PWM Adjustable

The XL4016E1 PWM Adjustable Buck Converter provides flexible voltage regulation using pulse-width modulation (PWM), making it suitable for applications requiring efficient DC voltage adjustment.

Specifications

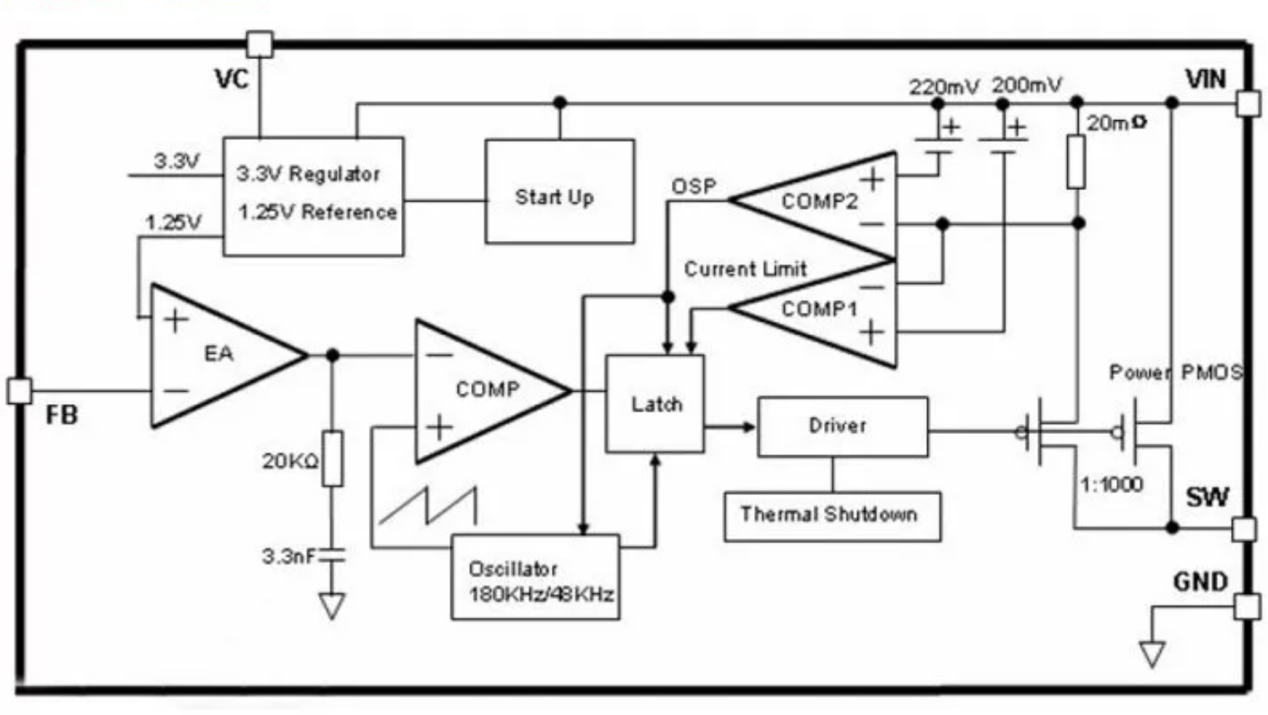

Functional Block Diagram

Advantages

· Stable PWM voltage regulation

· Wide adjustable output range

· Compact mechanical size

· High current capability

· Suitable for industrial and DIY applications

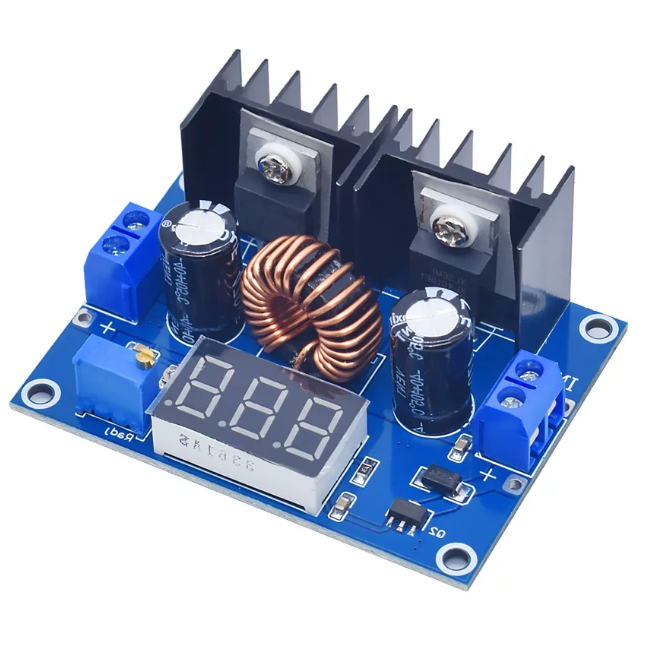

XL4016 DC-DC Step Down with Digital Display

The XL 4016 module is also available with an integrated LED display for convenient voltage monitoring.

Specifications

Features

· 0.36-inch three-digit LED voltage display

· Adjustable output voltage

· Counter-clockwise rotation decreases output voltage

· Reverse polarity protection diode prevents damage from incorrect input connection

· Zener diode protects the display circuit

· Fine-adjust potentiometer for display calibration

· Red power indicator LED

The built-in digital display allows users to monitor output voltage in real time without requiring an external multimeter, making setup faster and more convenient.

XL4015 vs XL4016

Although both modules belong to the XL40xx series of DC-DC buck converters, the XL4016 is designed for higher power applications.

Which One Should You Choose?

Choose the XL4015 if your project requires less than 5A of output current and moderate power consumption. It is ideal for Arduino projects, LED strips, and general-purpose DC voltage regulation.

Choose the XL4016 if your application demands higher output current, greater power capacity, or operation with larger loads. It is better suited for battery chargers, industrial equipment, motor drivers, and high-power electronics.

Frequently Asked Questions [FAQ]

What is XL4016?

The XL4016 is a high-power DC-DC step-down (buck) converter module that efficiently reduces a higher DC input voltage to a lower adjustable output voltage. It supports 4–38V input, 1.25–36V output, and delivers up to 8A peak current, making it suitable for battery charging, LED lighting, and industrial applications.

What does a DC to DC buck converter do?

A DC-DC buck converter lowers a higher DC voltage to a lower DC voltage while maintaining high efficiency. It uses high-frequency switching instead of dissipating excess energy as heat, making it ideal for powering electronics, charging batteries, automotive systems, and embedded devices.

What are the disadvantages of DC/DC converters?

DC-DC converters can generate electrical noise and electromagnetic interference (EMI) because high-frequency switching. They also require proper cooling at high power levels, may have more complex circuitry than linear regulators, and their performance depends on component quality and load conditions.

How much does XL4016 DC to DC converter cost?

The XL4016 DC-DC converter is an affordable power module. Standard versions typically cost US$1–5, while models with digital displays or enhanced cooling usually range from US$2–7, depending on features, quality, and the supplier.

How many types of DC to DC converters are there?

There are four main types of DC-DC converters: buck (step-down), boost (step-up), buck-boost (step-up/step-down), and isolated converters such as flyback, forward, push-pull, half-bridge, and full-bridge designs. Each type is optimized for different voltage conversion and power requirements.

How to select dc-dc converter?

Choose a DC-DC converter by considering the input voltage range, required output voltage, maximum load current, power rating, conversion efficiency, cooling requirements, protection features, and module size. Selecting a converter with additional current capacity improves reliability and long-term performance.

Can the XL4016 deliver 8A continuously?

The XL4016 is rated for a maximum output current of 8A, but continuous operation at this level requires excellent cooling. For long-term reliability, most manufacturers recommend keeping the continuous load at 5A or less, especially without additional heatsinks or forced-air cooling.

Conclusion

The XL4016 step down buck converter is a powerful and efficient DC-DC voltage regulator capable of supplying adjustable output voltages with high current capacity. Its wide input range, excellent efficiency, and support for loads up to 250W make it an ideal choice for industrial equipment, battery charging, LED lighting, automotive electronics, and DIY power supply projects. Whether you choose the standard module, the PWM-adjustable XL4016E1, or the version with an integrated LED display, the XL4016 provides a reliable and cost-effective solution for high-power voltage conversion.
