Mini MP1584 DC-DC 3A Buck Converter Module: Complete Guide

The MP1584 DC-DC Buck Converter Module is a compact and high-performance step-down power supply solution designed for modern electronic applications. As electronic devices continue to shrink in size while demanding higher efficiency, this module provides an effective way to convert higher input voltages into stable, lower output voltages with minimal energy loss.

Built around a high-frequency switching regulator, the MP 1584 module delivers excellent efficiency—up to 96%—making it a preferred choice over traditional linear regulators. Its small footprint, adjustable output voltage, and ability to handle up to 3A of current make it suitable for a wide range of applications, from DIY electronics and embedded systems to automotive and portable power solutions.

Whether you're powering sensors, microcontrollers, or communication devices, the module board offers a reliable, space-saving, and efficient voltage regulation solution.

1. MP1584 DC-DC Buck Converter Module

2. MP1584 DC-DC Buck Module Pinout

3. Features and Specifications of MP1584 DC-DC Buck Module

4. MP1584 Alternative

5. Applications of MP1584 DC-DC Buck Module

6. LM2596 vs MP1584

7. Frequently Asked Questions [FAQ]

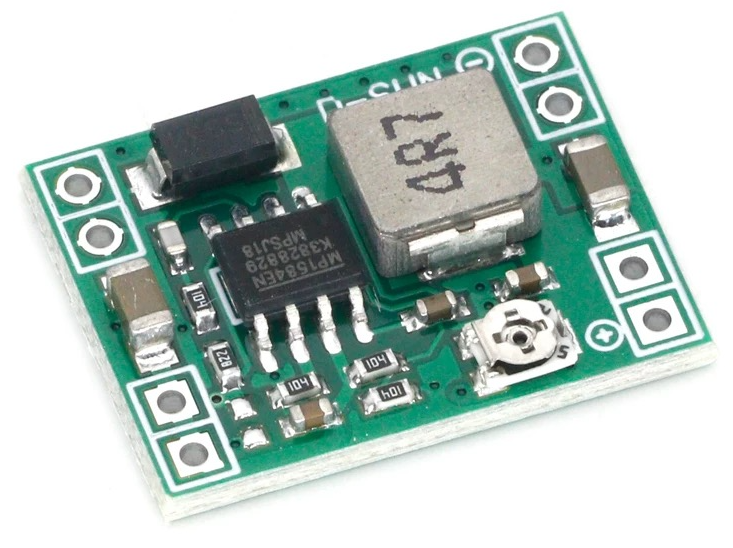

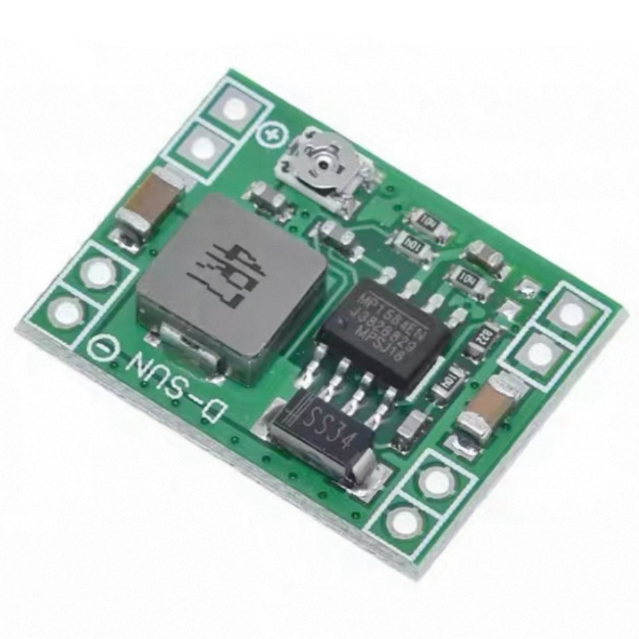

MP1584 DC-DC Buck Converter Module

The MP 1584 DC-DC step down Module is a compact, high-efficiency step-down voltage regulator widely used in modern electronics. Built around the MP1584EN switching regulator IC, this board converts a higher DC input voltage into a lower, stable output voltage with minimal power loss.

Unlike linear regulators, the MP 1584 uses switching technology to achieve efficiencies as high as 96%, making it ideal for battery-powered devices and compact embedded systems. Its small size and adjustable output voltage make it especially suitable for space-constrained applications such as portable electronics, DIY power supplies, and IoT devices.

MP1584 DC-DC Buck Module Pinout

MP1584 Step down Board Pin Configuration

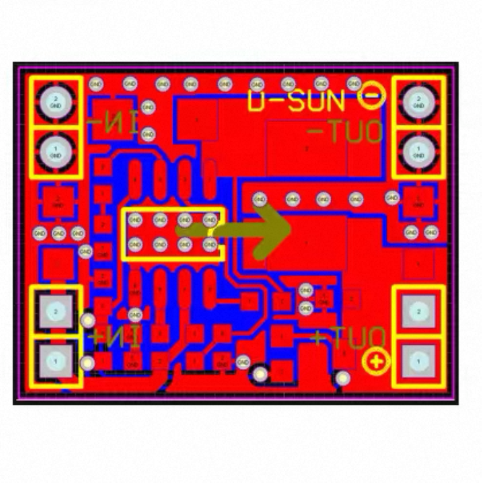

MP1584 Module Footprint and 3D Model

The module is known for its ultra-compact footprint, making it ideal for tight PCB layouts and embedded systems.

Compact SMD-based design.

Lightweight and suitable for portable applications.

Its miniature size allows integration into projects where traditional modules such as LM2596 will be too large.

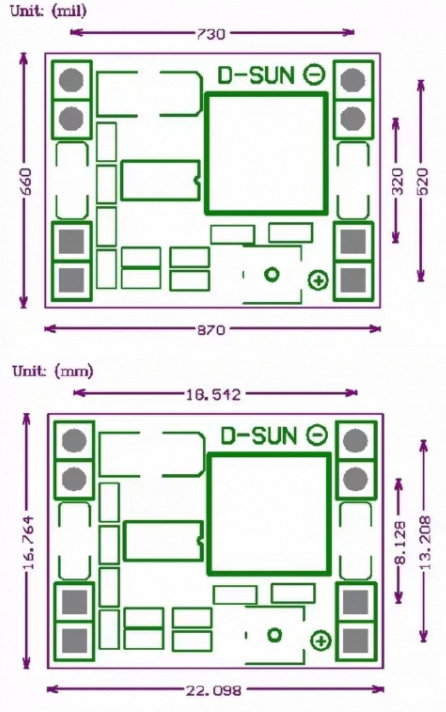

Mini MP1584 Board Dimensions

Typical Sizes: 22mm × 17mm × 4mm

Features and Specifications of MP1584 DC-DC Buck Module

Key Feature

Wide Input Range:
Operates from 4.5V to 28V, suitable for various power sources.

High Efficiency:
Achieves up to 96% efficiency, reducing heat and power loss.

Adjustable Frequency:
Supports 100kHz–1.5MHz switching frequency for flexible design.

Pulse Skipping Mode:
Improves light-load efficiency and ensures stable operation with ceramic capacitors.

Built-in Current Limit:
No external sensing resistor required, simplifying the circuit.

Overcurrent Protection:
Provides cycle-by-cycle protection against excessive current.

UVLO Protection:
Includes under-voltage lockout for safe and stable operation.

Electrical Specifications

MP1584 Alternative

If the MP 1584 does not meet your design requirements, consider these alternatives:

LM2576:

A reliable buck converter with a simple design and low switching frequency (~52kHz). Suitable for general-purpose power supplies but larger in size compared to MP1584.

LM2596:

A popular 3A buck regulator known for ease of use and wide availability. Commonly use in DIY projects, though it is bigger and operates at a lower frequency than MP 1584.

TPS613223ADBVT:

A compact and efficient DC-DC converter designed for portable and low-power applications. It offers advanced features in a small SMD package.

XL7015:

A high-voltage buck converter that supports input voltages up to around 80V. Ideal for industrial and high-voltage applications where MP1584 isn’t suitable.

Each replacement offers trade-offs in size, efficiency, switching frequency, and cost.

Applications of MP1584 DC-DC Buck Module

The MP 1584 module widely use across various applications, especially where compact size and efficiency are critical:

DIY Power Banks:

Widely used in portable battery packs to step down voltage efficiently and provide stable output for charging smartphones, USB devices, and other electronics.

Surveillance Power Supply:

Ideal for powering CCTV and monitoring systems, ensuring stable voltage for continuous and reliable operation.

Electric Toy Cars:

Used in children’s electric vehicles to regulate battery voltage and protect sensitive electronic components.

Camera Power Supply:

Provides regulated power for cameras and video equipment, helping maintain consistent performance.

Automotive Power Systems:

Suitable for in-car power conversion, such as stepping down 12V/24V to lower voltages for electronic devices.

Communication Equipment:

Used in communication systems to deliver stable and efficient power to modules and circuits.

Compact & Lightweight Applications:

Perfect for space- and weight-sensitive designs such as RC models, drones, and aerospace-related projects.

Its small size and high efficiency make it ideal for weight-sensitive and space-limited designs.

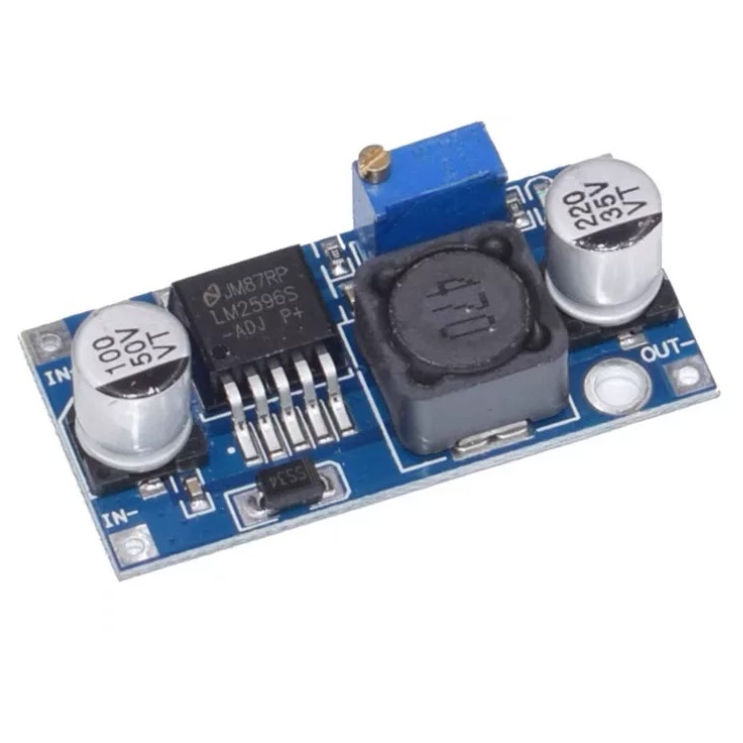

LM2596 vs MP1584

LM2596:


The LM2596 DC-DC buck module supports an input voltage of 3.2V–46V (recommended ≤40V) and provides an adjustable output from 1.25V to 35V. It delivers up to 3A output current, with maximum efficiency around 92%. The module features low output ripple (<30mV) and operates at a switching frequency of 65kHz. Its size is relatively large at 43mm × 21mm × 14mm, making it less suitable for compact designs but ideal for robust applications.

MP1584:


In comparison, the MP 1584 module operates within 4.5V–28V input and offers 0.8V–20V adjustable output with up to 3A current. It achieves higher efficiency (up to 96%) and uses a much higher switching frequency (up to 1.5MHz), allowing for a significantly smaller size (22mm × 17mm × 4mm).

Summary:
LM2596 is better for higher input voltage and simple applications, while MP1584 is ideal for compact, high-efficiency, and space-constrained designs.

Comparison Table

MP1584 Datasheet PDF

You can download the data sheet for more information.

Frequently Asked Questions [FAQ]

What is MP1584 buck converter price?

The MP 1584 module is affordable and widely available. Its price typically ranges from $0.2 to $2 USD per piece, depending on quantity, supplier, and quality. Bulk purchases can further reduce the cost, making it ideal for large-scale and DIY electronics projects.

What is the MP1584?

The MP 1584 is a high-frequency DC-DC step-down (buck) switching regulator IC designed to efficiently convert higher input voltage into a lower, stable output voltage. Commonly use in compact power modules because its small size, high efficiency, and adjustable output capability.

What is the input voltage of the MP1584 module?

The module supports an input voltage range of 4.5V to 28V DC. This wide range allows it to work with different power sources such as lithium batteries, DC adapters, and automotive power systems, making it suitable for versatile electronic applications.

What is the constant current of MP1584?

The MP 1584 is primarily a constant voltage regulator, not a constant current device. It can provide up to 3A continuous output current, but maintaining constant current requires additional external circuitry, such as feedback control or current-limiting components in the design.

Is MP1584 a buck converter?

Yes, the MP1584 is a buck (step-down) converter, meaning it reduces a higher input voltage to a lower output voltage efficiently. It uses high-frequency switching technology, which results in better efficiency and smaller component size compared to traditional linear voltage regulators.

What are the disadvantages of using MP1584?

Although efficient, the MP 1584 has some limitations. It require careful PCB layout to avoid noise, lacks built-in constant current mode, generates heat at high loads, and has a lower maximum input voltage compared to some larger buck converter modules.

What are some common uses for MP1584?

Commonly use in DIY power supplies, portable devices, automotive electronics, communication equipment, and embedded systems. Its compact size and high efficiency make it ideal for applications where space, weight, and power efficiency are important considerations.

Conclusion

The MP1584 DC-DC Buck Converter Module is a powerful solution for engineers and hobbyists who need a small, efficient, and adjustable voltage regulator. With high switching frequency, compact size, and strong performance, it stands out as a modern alternative to older buck modules like LM2596.

Whether you're designing portable electronics or optimizing power efficiency in embedded systems, the module offers a reliable and flexible solution.
