LM2577 Boost Converter: Datasheet and Step Up Module Board

The LM2577 is a widely used DC-DC switching regulator designed for step-up (boost) power conversion. Commonly use in power supply circuits where require a higher output voltage than the input-voltage, such as battery-powered devices, LED drivers, and portable electronics. With its built-in switching transistor and minimal external component requirement, the LM 2577 provides a simple and efficient solution for boost power supply designs.

This article explains the LM2577’s pinout, features, specifications, equivalent parts, and applications, along with details about the LM 2577 boost converter module.

1. What is LM2577?

2. LM2577 Pinout and CAD Model

3. IC LM2577 Features

4. LM2577 Technical Specifications

5. LM2577 Alternative

6. LM2577 Comparable Parts

7. LM2577 Boost Converter Applications

8. LM2577 DC-DC Adjustable Step Up Power Converter Module

9. XL6009 vs LM2577

10. Frequently Asked Questions [FAQ]

What is LM2577?

The LM 2577 is a monolithic integrated circuit designed to provide all the power and control functions required for step-up (boost), flyback, and forward converter switching regulators. It belongs to the SIMPLE SWITCHER® family of power regulators and design for efficient power conversion using a minimal number of external components.

The device is available in three output voltage versions: 12V, 15V and adjustable output version.

Because it requires only a few external components such as an inductor, diode, capacitor, and resistor network, the chip is a cost-effective and easy-to-use switching regulator.

Inside the IC is a 3.0A NPN power switch along with built-in protection circuitry. This includes current limiting, thermal shutdown, and undervoltage lockout, which help protect the device from abnormal operating conditions.

The regulator also integrates a 52 kHz fixed-frequency oscillator, eliminating the need for external timing components. Additionally, it features soft-start functionality, which reduces inrush current during startup and improves system reliability.

Because of these characteristics, the circuit frequently use in boost converters, battery-powered systems, and power supply modules.

LM2577 Pinout and CAD Model

The circuit uses a 5-pin configuration. It is available in TO-220-5 and TO-263 (DDPAK-5) packages.

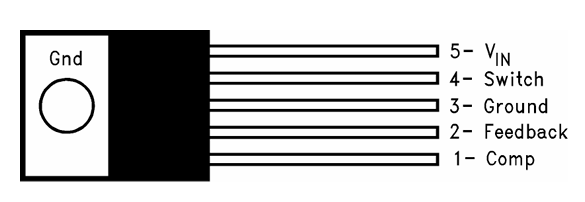

LM2577 Pin Configuration

Functional Circuit Block Diagram

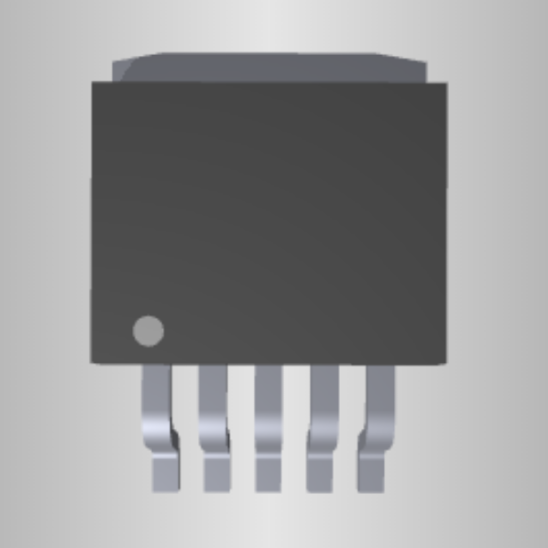

CAD Model

IC LM2577 Features

Requires Few External Components
The circuit requires only a small number of external components such as an inductor, diode, and capacitors. This simplifies circuit design and reduces the overall cost and complexity of the boost converter system.

3.0A NPN Output Switch
The IC integrates a 3.0A NPN switching transistor that can withstand up to 65V. This allows the LM 2577 to support higher power boost converter applications.

Wide Input Voltage Range
The chip supports an input voltage range from 3.5V to 40V, making it suitable for various power supply designs.

Current-Mode Operation
Current-mode control improves transient response, line regulation, and current limiting performance.

52 kHz Internal Oscillator
The built-in 52 kHz oscillator eliminates the need for external timing components.

Soft-Start Function
Soft-start reduces inrush current during startup and improves system reliability.

Protection Features
The device includes current limit, undervoltage lockout, and thermal shutdown protection.

LM2577 Technical Specifications

Package Types

Manufacturer Texas Instruments (TI)

The device is manufactured by Texas Instruments and several compatible versions also produce by other semiconductor manufacturers.

LM2577 Alternative

The following models are closely related versions of the LM 2577 regulator.

These parts share similar internal structures and can use as replacements depending on system requirements.

LM2577 Comparable Parts

Several switching regulators can be compared with the LM 2577 depending on the power topology.

While the LM 2577 is a boost regulator, devices like LM2575, LM2576, and LM2596 are buck (step-down) regulators used to reduce voltage rather than increase it.

LM2577 Boost Converter Applications

Simple Boost Regulator

The circuit widely use as a simple boost regulator to increase a lower DC input voltage to a higher output voltage. Commonly use in battery-powered devices where require a stable higher voltage from a low-voltage source.

Flyback and Forward Regulators

The component can also use in flyback and forward converter topologies. These designs are suitable for isolated or non-isolated power supplies and often use in industrial power systems and DC-DC conversion circuits.

Multiple-Output Regulator

With proper transformer or inductor configuration, the LM2577 can generate multiple output voltages from a single input source. This makes it useful in applications requiring several regulated voltage rails within the same power supply system.

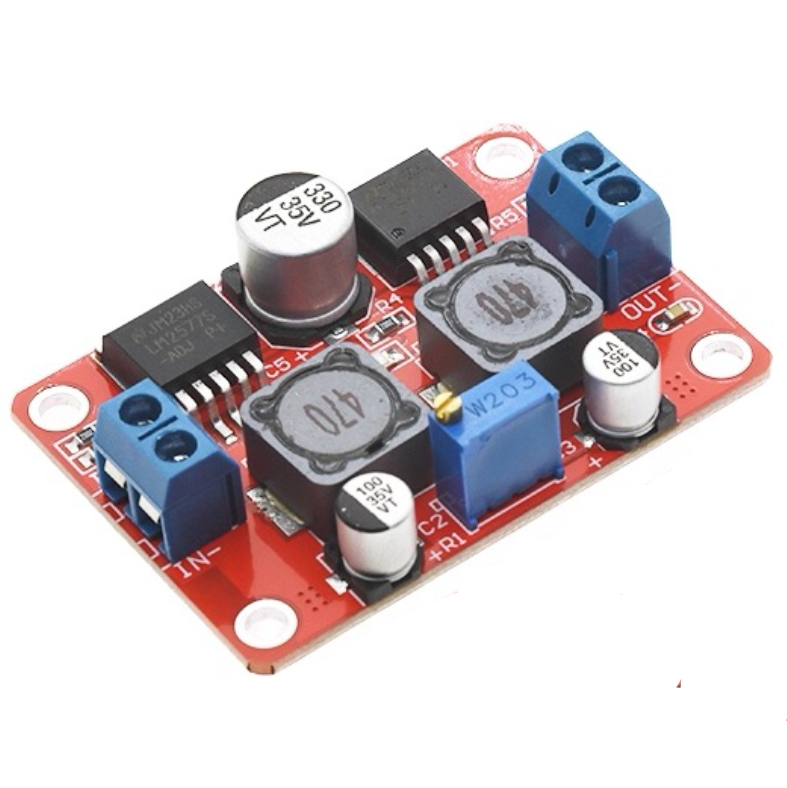

LM2577 DC-DC Adjustable Step Up Power Converter Module

Introduction

The LM2577 DC-DC adjustable boost converter board is a high-efficiency step-up power supply circuit. It supports an input voltage range of 3.5V to 30V and provides an adjustable output voltage from 4V to 30V. The module can handle a maximum input current of 3A and achieves an efficiency of up to 92%.

This module commonly use to boost the voltage of a single 3.7V lithium battery to 5V, making it suitable for portable power bank applications. With a strong 3A drive capability, it can power or charge multiple devices such as smartphones or MP4 players simultaneously.

The design uses the LM2577 step up regulator IC, which is larger and more powerful than many small boost chips. With proper cooling, the module can deliver up to 20W of output power.

Specifications

Module Features

High-Efficiency LM 2577 Chip
The module uses a high-quality LM 2577 boost converter chip, offering high efficiency (up to 92%) and relatively low heat generation. Without a heatsink, the output power can reach about 15W, and with proper cooling it can reach 20W.

Low Ripple Output Design
Low-ESR Sanyo filter capacitors are used in the design. Add an additional LC filtering stage at the output to further reduce ripple voltage. The ripple can be as low as 50mV at 24V output and below 20mV at 12V output.

Reliable Manufacturing Process
Produce the module using automated SMT assembly and reflow soldering. Each unit undergoes approximately two hours of aging testing before shipment, ensuring high reliability and stable performance.

Typical Applications

Power Bank Circuit
Boosting 3.7V lithium battery voltage to 5V for portable USB power banks.

LED Driver
Boosting voltage to drive LED light strings, usually with an appropriate current-limiting resistor.

RC and Camera Systems
Boosting 7.4V to 12V for applications such as RC model cameras and other small electronics.

Important Notes

When operating at high current levels, the module may generate significant heat. Recommend adequate ventilation and heat dissipation are to ensure stable and safe operation.

XL6009 vs LM2577

Both XL6009 and LM2577 are step-up (boost) switching regulator ICs used in DC-DC power conversion circuits. They integrate power switching elements and control circuitry to simplify boost converter designs for applications such as battery-powered systems, LED drivers, and portable power supplies.

The XL6009 is a monolithic integrated circuit designed for boost, flyback, and forward converter switching regulators. It integrates a 5A PMOSFET power switch along with protection functions such as current limiting, thermal protection, and undervoltage lockout. The device also features a 220 kHz fixed switching frequency, which allows the use of smaller inductors and capacitors. In addition, the XL 6009 includes soft-start functionality to reduce inrush current during startup and current-mode control for improved transient response and load regulation.

In comparison, the LM2577 uses a 3A NPN switching transistor and operates at a lower switching frequency of 52 kHz. While this typically requires slightly larger external components, the LM 2577 is known for stable operation, simple design, and reliable performance in medium-power boost converter applications.

XL6009 vs LM2577 Comparison Table

Overall, XL6009 is often used in compact, high-frequency boost modules, while commonly choose LM2577 for reliable and straightforward boost regulator designs.

LM2577 Datasheet PDF

The full LM 2577 datasheet provides detailed information including:

electrical characteristics, internal block diagram, application circuits, inductor selection guidelines and thermal performance, etc.

Can download the datasheet when designing boost converter circuits or PCB layouts.

Frequently Asked Questions [FAQ]

What is the defining characteristic of the LM2577?

The defining characteristic of the LM 2577 is its ability to function as a step-up switching regulator, meaning it can produce an output voltage higher than the input voltage. It integrates a 3A power switch and control circuitry, simplifying boost converter designs.

How does the LM2577 produce an output voltage that exceeds the input voltage?

The LM2577 uses a boost converter topology where store energy in an inductor during the switching cycle. When the switch turns off, transfer the stored energy through a diode to the output capacitor, raising the output voltage above the input.

What is the essential property of the LM2577?

The essential property of the LM 2577 is efficient DC-DC voltage boosting. It uses switching regulation instead of linear regulation, which significantly improves efficiency and reduces heat generation in medium-power power supply applications.

What is the principle of LM2577?

The LM 2577 operates using a switch-mode power conversion principle. It repeatedly switches an internal transistor at a fixed frequency, controlling the inductor current to regulate the output voltage through feedback and current-mode control.

What is the equivalent of LM2577?

Some commonly used alternatives to the LM 2577 include XL6009, MC34063, and other boost regulator ICs with similar voltage and current capabilities. The choice depends on switching frequency, output current, and efficiency requirements.

What is the purpose of a voltage regulator?

A voltage regulator maintains a stable output voltage regardless of changes in input voltage or load conditions. It protects electronic circuits from voltage fluctuations and ensures reliable operation of components and systems.

Conclusion

The LM2577 is a reliable step-up switching regulator designed for applications that require converting a lower input voltage into a higher and stable output voltage. With its integrated 3A power switch, wide input voltage range of 3.5V to 40V, and minimal external component requirement, it provides a simple solution for boost converter designs.

Thanks to built-in features such as current limiting, thermal shutdown, undervoltage lockout, and soft-start, the LM 2577 offers stable and safe operation in many power supply circuits. Commonly use in boost converters, portable power systems, LED drivers, and DC-DC converter modules.

Overall, the component remains a practical choice for engineers and hobbyists who need a straightforward and efficient boost regulator for medium-power applications.
