LM7812 Voltage Regulator Guide - Pinout and Equivalent

The LM7812 voltage regulator is one of the most popular solutions for providing a constant 12 V DC output from a higher and fluctuating input voltage. Part of the LM78XX series of three-terminal positive regulators, the LM 7812 widely use in both hobbyist projects and industrial applications because its simplicity, reliability, and built-in protection features. In electronics, a stable and reliable power supply is key for any circuit to function correctly.

Housed typically in a TO-220 package, this IC can supply over 1 A of current when properly heat-sinked, making it suitable for powering microcontrollers, sensors, relays, and other electronic devices. Its internal circuits provide current limiting, thermal shutdown, and safe operating area protection, ensuring that your devices remain safe even under abnormal operating conditions.

Whether you are designing a small DIY project or a professional power supply, the LM 7812 offers a cost-effective and easy-to-use solution for delivering stable 12 V DC.

1. What is the LM7812 Voltage Regulator?

2. LM7812 Pinout, CAD Model and Circuit Diagram

3. Features

4. Benefits of the IC LM7812

5. LM7812 Specifications

6. LM7812 Equivalent & Alternatives

7. Electronic Characteristics

8. Applications of the LM7812

9.Frequently Asked Questions [FAQ]

What is the LM7812 Voltage Regulator?

The LM7812 is a 12 V positive voltage regulator and a member of the LM78XX series of three-terminal regulators. These regulators are commonly available in the TO-220 package and offer several fixed output voltages, making them suitable for a wide variety of electronic applications. Each device includes internal current limiting, thermal shutdown, and safe operating area protection, ensuring reliable operation even under stress conditions. With proper heat sinking, the LM 7812 can supply over 1 A of output current, making it ideal for powering microcontrollers, sensors, and other electronic circuits. While primarily designed as a fixed-voltage regulator, it can also configure with external components to provide adjustable output voltages and currents, offering flexibility in design.

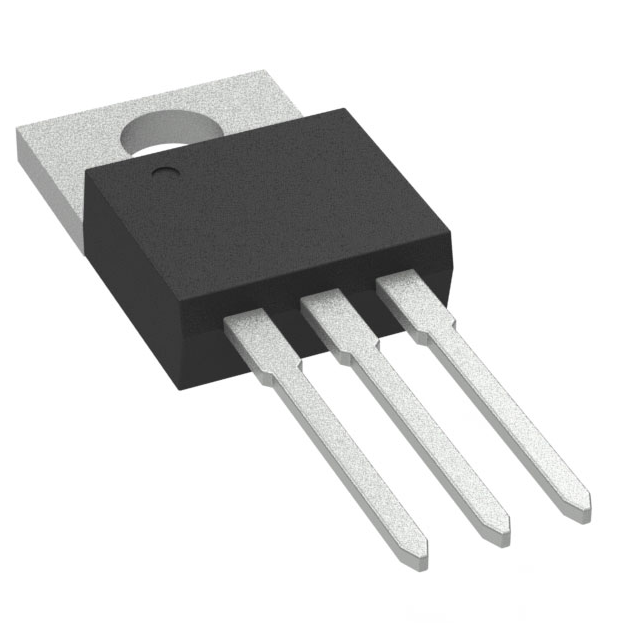

LM7812 Pinout, CAD Model and Circuit Diagram

Pin Configuration

Footprint

The LM 7812 is commonly available in TO-220, TO-263, and TO-252 packages.

3D Model

Its CAD model is useful for PCB design, mechanical integration, and thermal analysis.

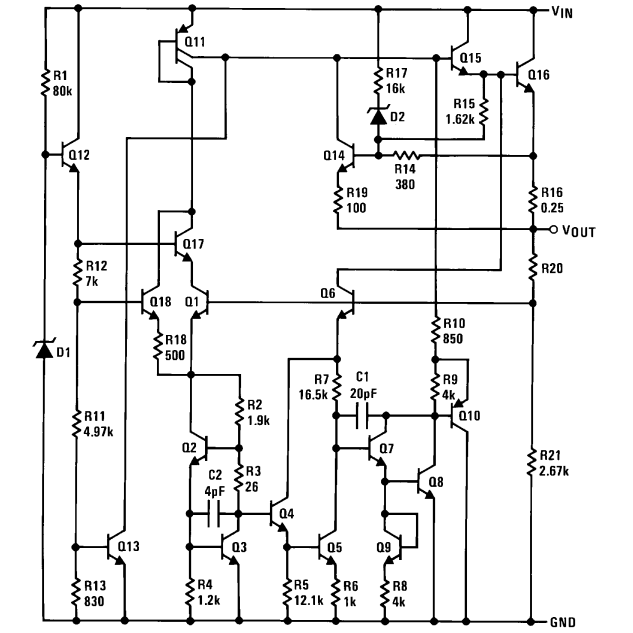

Internal Block Diagram

The LM7812 contains internal reference voltage circuits, error amplifiers, and pass transistors to maintain a precise 12 V output under varying load and input conditions.

7812 Features

Output Current – The 7812 can deliver up to 1 A of continuous current, making it capable of powering small to medium-load circuits such as microcontrollers, sensors, relays, LEDs, and other electronic devices. Proper heat sinking ensures reliable performance even under higher loads.

Output Voltages – Part of the LM78XX series, the 7812 provides a fixed 12 V DC output. The series also includes options like 5V, 6V, 8V, 9V, 10V, 15V, 18V, and 24V, giving designers flexibility to choose the appropriate voltage for various projects.

Thermal Overload Protection – The 7812 features built-in thermal protection, which prevents the IC from overheating in case of excessive power dissipation. This ensures the device remains safe and stable, even during extended operation or high ambient temperatures.

Short-Circuit Protection – The IC design with short-circuit protection, safeguarding both the regulator and connected components from accidental shorts or wiring errors, reducing the risk of damage to your circuits.

Output Transistor Safe Operating Area Protection – Internal circuitry limits stress on the output transistor, protecting the IC from excessive voltage or current spikes. This ensures long-term reliability and stable performance across a wide range of conditions.

Versatile Package Options – The 7812 is available in TO-220, TO-263, and TO-252 packages, allowing easy integration into both through-hole and surface-mount PCB designs. The TO-220 package is particularly convenient for adding heatsinks for higher current loads.

Benefits of the IC LM7812

Stable Voltage Output – The LM 7812 provides a consistent 12 V DC output, ensuring connected devices operate reliably without voltage fluctuations. This is especially important for microcontrollers, sensors, and audio circuits, where unstable voltage can lead to malfunctions or signal distortion.

Easy to Use – The IC requires minimal external components, typically only input and output capacitors for stability. This makes it simple to integrate into both hobbyist projects and professional designs, saving time in circuit assembly and testing.

Protects Connected Devices – Built-in thermal overload and short-circuit protections safeguard the regulator and connected electronics from damage caused by overheating or accidental wiring faults, improving overall circuit safety and reliability.

Versatile Applications – Suitable for a wide range of uses, including power supplies, LED drivers, battery chargers, relay circuits, and small motors. Its flexibility allows it to meet different project requirements efficiently.

Durable and Reliable – Internal safe operating area protection reduces stress on the output transistor, extending the IC’s lifespan and ensuring consistent performance under varying load conditions.

Cost-Effective Solution – The 7812 provides high-quality voltage regulation at an affordable price, making it a go-to choice for both DIY enthusiasts and professional engineers.

LM7812 Specifications

Package – The 7812 is commonly available in TO-220, TO-263, TO-252 packages, making it suitable for both through-hole and surface-mount applications. The TO-220 package widely use for its ease of mounting and heat dissipation capabilities.

Manufacturer – The LM 7812 produce by trusted semiconductor companies such as ON Semiconductor and Texas Instruments, ensuring high reliability and consistent performance. These manufacturers provide datasheets, technical support, and quality assurance, making the IC suitable for both professional and hobbyist use. Their products are widely available, giving designers easy access to stable and dependable 12 V voltage regulation for a variety of electronic applications.

LM7812 Equivalent & Alternatives

If the LM 7812 is unavailable or if you need a different voltage rating, can use several alternatives from the LM78XX series and other manufacturers. These equivalents provide similar fixed-voltage regulation, protection features, and package types, ensuring reliable operation in your circuits.

These alternatives allow you to select regulators with different voltage outputs or sourcing options while maintaining compatibility with the LM78XX series design standards.

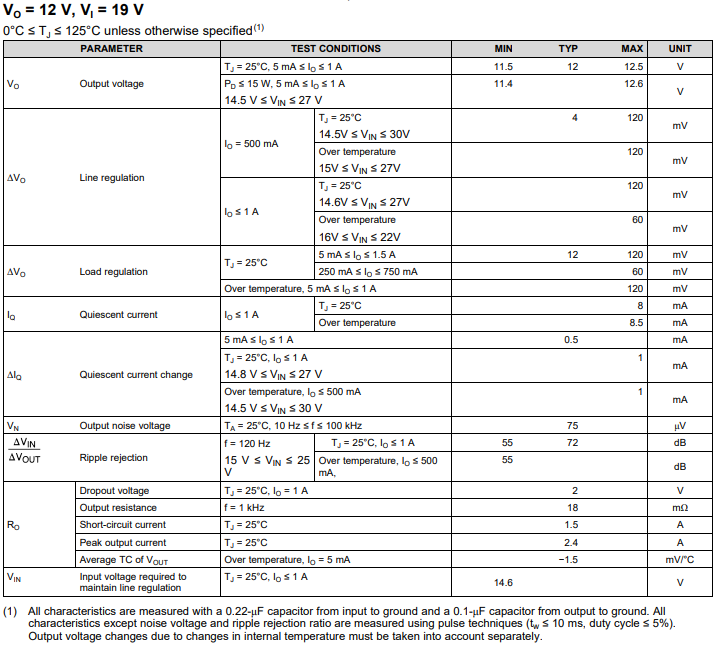

Electronic Characteristics

Applications of the LM7812

The voltage regulator widely use in electronics for providing a stable 12 V DC output in a variety of circuits. Its ability to deliver up to 1 A of current with built-in protection features makes it suitable for both hobbyist projects and professional applications.

One of the most common uses of the 7812 is in regulated power supplies. It can convert unregulated DC from a transformer or battery into a smooth, constant 12V supply, which is ideal for powering microcontrollers, Arduino boards, and other digital circuits. The regulator’s reliability ensures that sensitive devices are protected from voltage fluctuations that could cause malfunctions or damage.

The chip also use in audio amplifier circuits, providing a stable voltage to prevent hum or distortion caused by power supply variations. In battery chargers, it ensures consistent charging voltage for 12 V lead-acid or lithium-ion batteries, enhancing battery life and safety.

Other applications include LED drivers, relay circuits, sensor modules, and small DC motors, where a constant voltage is critical for performance. Its wide input voltage range, thermal protection, and short-circuit safety make the LM 7812 a versatile and trusted choice for numerous electronic and industrial circuits.

LM7812 Datasheet PDF

You can download for full electrical and thermal specifications.

Frequently Asked Questions [FAQ]

How to use LM7812?

Connect the input pin to an unregulated DC voltage (typically 14.5–35 V), ground the middle pin, and take the regulated 12V from the output pin. Add a small input capacitor (0.33 µF) and output capacitor (0.1 µF) for stability and ripple reduction. The IC then provides a constant 12 V DC to power circuits safely.

What is LM7812 price?

The 7812 is an affordable voltage regulator, with prices generally ranging from $0.20 to $2 per unit, depending on supplier, quantity, and package type. Bulk orders or sourcing from distributors like ON Semiconductor or Texas Instruments reduce the per-unit cost. Prices can vary slightly based on the market or local electronics stores.

What is the purpose of LM7812?

The voltage-regulator provides a stable 12 V DC output from a higher and fluctuating input voltage. Its main purpose is to protect sensitive electronic devices like microcontrollers, sensors, relays, and LEDs from voltage spikes and ensure circuits operate reliably with consistent power.

Can you explain the significance of 78 and 12 in the LM7812 designation?

In LM7812, “78” indicates it belongs to the positive voltage regulator series, which provides regulated positive DC output. The “12” specifies the fixed output voltage, meaning the IC provides 12V. Together, LM7812 identifies it as a positive, 12 V fixed regulator within the LM78XX family of ICs.

What is the wiring method of the three-terminal regulator block LM7812?

The LM7812 uses a three-terminal configuration: Pin 1 – Input, Pin 2 – Ground, Pin 3 – Output. Connect the unregulated voltage to Input, the reference point to Ground, and the stabilized 12 V comes out of Output. Often add capacitors to Input and Output for improved voltage stability.

What is the minimum input voltage for LM7812?

To maintain a stable 12V output, the input voltage must be at least 14.5 V, accounting for the IC’s dropout voltage of around 2V. Input voltages lower than this can cause the output to drop below 12 V, affecting the performance of connected devices.

What is the difference between LM7812 and CW7812?

The LM7812 is a standard, widely recognized positive 12 V regulator from manufacturers such as TI and ON Semiconductor. CW7812 is usually a low-cost or third-party variant, often produced in China, with similar electrical specifications. While they function similarly, quality, thermal performance, and tolerance may differ slightly between the two.

What is the difference between 78L12 and LM7812?

The 78L12 is a low-power version of the 12 V regulator, capable of delivering up to 100 mA output, suitable for small circuits. In contrast, the LM7812 can supply up to 1 A, making it ideal for medium-load applications. Both provide regulated 12V output, but LM7812 handles higher current and requires proper heat sinking.

Conclusion

The LM7812 voltage regulator is a reliable and versatile component for providing a stable 12 V DC output in a wide range of electronic applications. With its built-in thermal protection, short-circuit safety, and safe operating area features, it ensures both durability and reliability. Its simplicity, affordability, and ability to handle up to 1 A of current make it ideal for powering microcontrollers, sensors, relays, LEDs, and other circuits.

Whether you are a hobbyist building DIY projects or an engineer designing professional electronics, the 7812 offers a stable, easy-to-use, and cost-effective solution for voltage regulation. By understanding its features, specifications, and applications, you can confidently integrate this IC into your designs and ensure consistent, safe performance for all your 12 V circuits.
