1N4001 Diode Pinout, Datasheet & Alternative

The 1N4001 diode is one of the most widely used general-purpose rectifier diodes in electronics. Designed for dependable performance and efficient power rectification, commonly used in power supplies, converters, and protection circuits. With a 50V reverse voltage rating and 1A average forward current, the 1N 4001 is a reliable and economical choice for both hobbyist and industrial designs.

1. What is 1N4001 Diode?

2. 1N4001 Pinout & CAD Model

3. Diode 1N4001 Features

4. 1N4001 Diode Specifications

5. IN4001 Diode Applications

6. 1N4001 Alternative and Equivalent

7. 4001 Diode Mechanical Characteristics

8. Frequently Asked Questions about 1N4001 Diodes

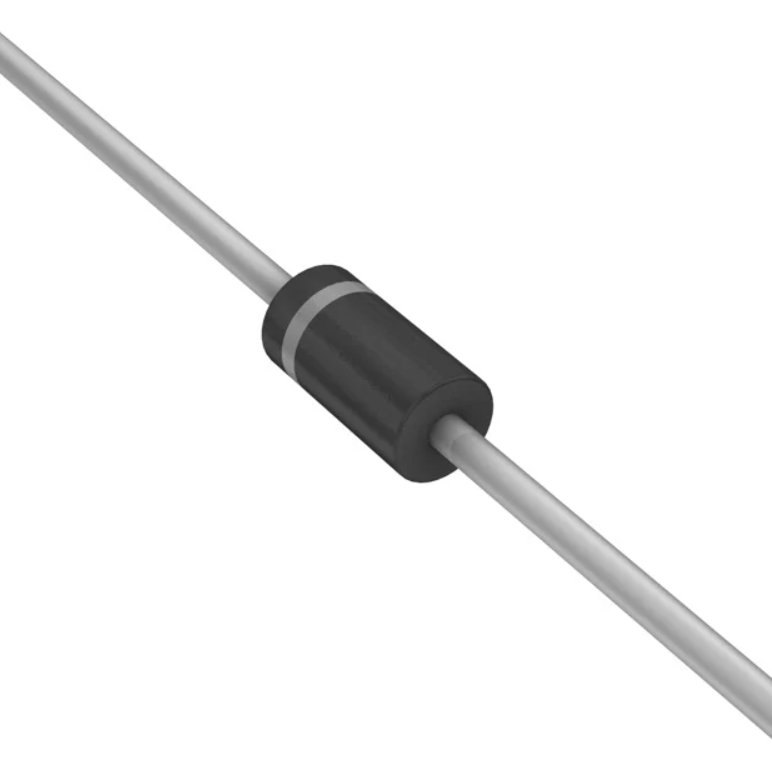

What is 1N4001 Diode?

The 1N4001 diode is a general-purpose silicon rectifier designed for reliable AC-to-DC conversion and circuit protection. Rate for 1 amp average forward current and 50 volts maximum repetitive reverse voltage, making it suitable for low-voltage power applications. Housed in a DO-41 axial-lead package, it is easy to mount and solder in through-hole designs. The diode features a rugged PN junction, good surge current capability, and dependable thermal performance. Commonly used in power supplies, battery chargers, and reverse-polarity protection circuits, the 1N 4001 provides efficient rectification with low cost and high reliability for everyday electronic designs.

1N4001 Pinout & CAD Model

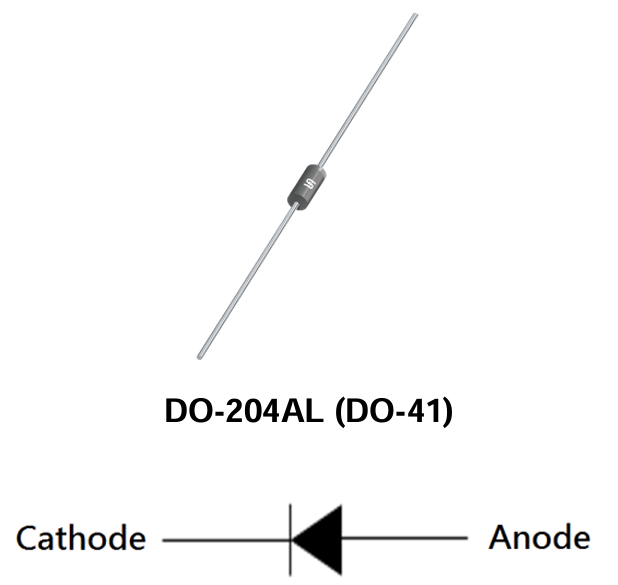

Pin Configuration

The silver/gray band on the diode body indicates the cathode.

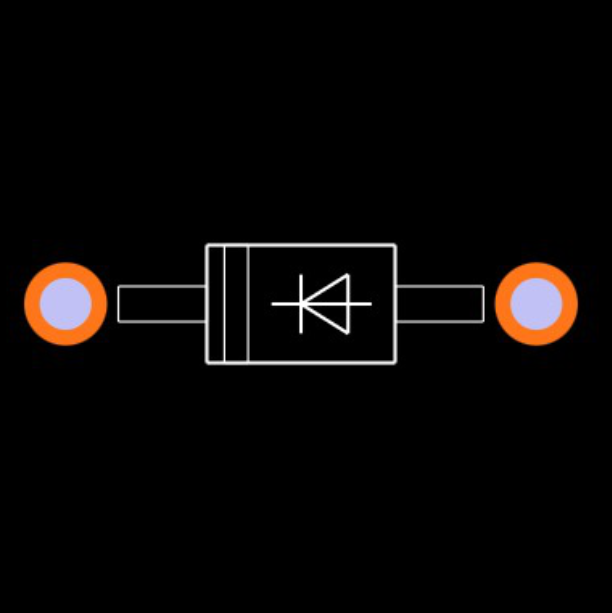

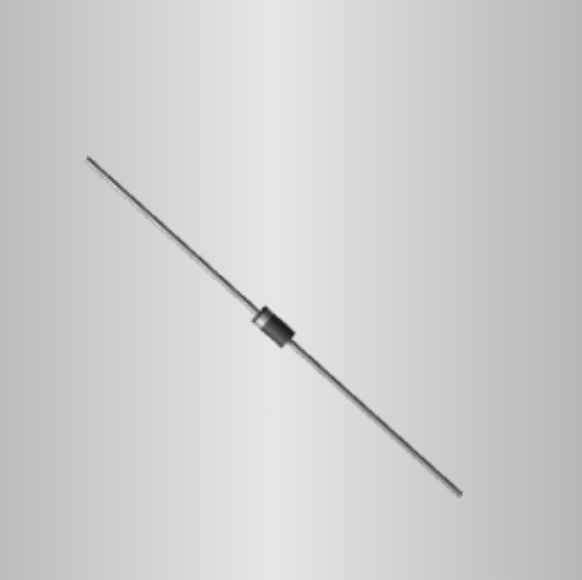

CAD Model

Diode 1N4001 Features

AEC-Q101 Qualification:

The diode is available in AEC-Q101 qualified versions, ensuring reliability in automotive and harsh-environment applications. This qualification confirms the device can withstand temperature extremes, vibration, and electrical stress.

Glass-Passivated Junction:

A glass-passivated chip junction enhances stability and protects the PN junction from contamination and moisture, improving long-term durability and consistent electrical performance.

High Current Capability & Low VF:

With high current capability and a low forward voltage drop (VF), the diode minimizes power dissipation, improves efficiency, and supports stable operation in power rectification circuits.

High Reliability:

Designed for high reliability, the 1N 4001 provides dependable performance over extended operating periods, making it suitable for industrial and consumer electronics.

High Surge Current Capability:

The diode can tolerate high surge currents, helping protect circuits from inrush currents and transient voltage spikes.

Low Power Loss & High Efficiency:

Its optimized design ensures low power loss, improving overall energy efficiency in power supply and converter applications.

RoHS & Halogen-Free Compliance:

The IN4001 is RoHS compliant and halogen-free (IEC 61249-2-21), meeting modern environmental and safety standards.

1N4001 Diode Specifications

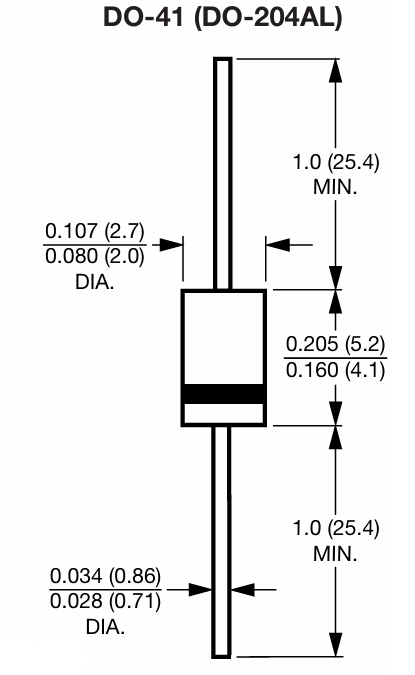

1N4001 Package Dimensions (DO-41)

Manufacturers

The diode produce by several reputable semiconductor manufacturers, ensuring high quality and reliability for both industrial and hobbyist applications.

ON Semiconductor (onsemi): Offers consistent performance with AEC-Q101 qualified options for automotive and industrial uses.

Vishay: Provides high-quality 1N 4001 diodes with precise specifications, robust packaging, and worldwide availability, suitable for general-purpose and power electronics applications.

These manufacturers guarantee compliance with RoHS and halogen-free standards, ensuring safe and environmentally friendly electronic components.

IN4001 Diode Applications

DC-to-DC Converters:

Used in DC-to-DC converter circuits, where it plays a key role in rectifying alternating current to direct current. Its low forward voltage drop (VF) and high current capability allow for efficient energy transfer, reducing power loss and improving overall circuit performance. This makes it ideal for applications where voltage stability and energy efficiency are critical, such as portable electronics, battery-powered devices, and power management systems.

Switching Mode Converters & Inverters:

In switching mode converters and inverters, the 1N 4001 ensures reliable rectification and protects circuits from reverse current and voltage spikes generated during fast switching operations. Its high surge current tolerance allows it to handle inrush currents and transient voltages without damage. This reliability makes it suitable for industrial power supplies, renewable energy inverters, and UPS systems, where consistent operation under dynamic load conditions is essential.

General-Purpose Rectification:

Beyond specialized power circuits, the IN4001 serves as a general-purpose rectifier in a variety of electronic applications. Commonly used in battery chargers, power supply protection circuits, flyback diode configurations, and polarity protection. Its robust construction, high reliability, and cost-effectiveness make it an ideal choice for hobbyist projects, consumer electronics, and industrial equipment, providing a dependable solution for routine rectification and protection tasks.

Circuit Protection:

Frequently apply the diode for reverse polarity protection and flyback protection in inductive loads such as relays and motors, improving circuit durability and reliability.

Power Supply Applications:

Its reliability and low cost make it ideal for consumer electronics and industrial power systems, where require dependable current control and protection .

1N4001 Alternative and Equivalent

Depending on voltage, speed, or current requirements, use these alternatives:

1N4148 (Fast Switching Diode):

The IN4148 is a high-speed switching diode suitable for signal processing and fast switching applications. Unlike the 1N4001, it handles lower current but offers extremely fast response times.

1N4733A (Zener Diode):

The 1N4733A is a 5.1V zener diode used for voltage regulation and reference applications. It is not a rectifier but can replace the IN4001 in circuits requiring voltage stabilization.

1N5408 (High-Current Rectifier):

The 1N5408 is a 3A rectifier diode with a much higher voltage rating. It is suitable as a replacement when require higher current capacity and surge tolerance.

1N5822 (Schottky Diode):

The 1N5822 is a Schottky rectifier known for its low forward voltage drop and fast switching speed, making it ideal for high-efficiency power supplies and switching regulators.

4001 Diode Mechanical Characteristics

Case Construction: The diode features a durable epoxy molded case, providing mechanical strength, insulation, and protection against environmental factors such as moisture and dust.

Weight: It has an approximate weight of 0.4 grams, making it lightweight and suitable for compact electronic assemblies.

Surface Finish & Leads: All external surfaces are corrosion-resistant, ensuring long-term durability. The terminal leads are readily solderable, allowing secure and reliable connections during PCB assembly.

Soldering Temperature Rating: The diode supports a maximum lead temperature of 260°C for up to 10 seconds, measured 1/16 inch from the case, ensuring compatibility with standard soldering processes.

Polarity Identification: Polarity is clearly marked, with the cathode indicated by a band on the diode body for easy orientation during installation.

1N4001 Datasheet PDF

A data sheet provides:

Absolute maximum ratings, electrical characteristics, thermal characteristics, mechanical drawings, reliability data, packaging information.

Frequently Asked Questions about 1N4001 Diodes

What is the difference between 1N4001 and 1N4007?

The main difference is their maximum reverse voltage rating. The 1N4001 can handle up to 50V, while the 1N4007 can withstand 1000V. Other electrical parameters, like forward current and surge capability, are similar. Designers choose between them depending on the voltage requirements of their circuits, using 1N4001 for low-voltage applications and 1N4007 for high-voltage rectification.

How many types of packages are available for 1N4001?

The 1N4001 is primarily available in the DO-41 axial-lead package for through-hole mounting. Some manufacturers provide bulk, tape-and-reel, or automated assembly packaging for mass production. While DO-41 is the standard, variations may exist for soldering convenience or automated assembly, but all maintain the same electrical specifications and reliability.

How to distinguish the positive and negative poles of 1N4001?

The cathode (negative) terminal of the 1N4001 indicate by a band or stripe on the diode body. The opposite end is the anode (positive). Current flows from the anode to the cathode in forward bias. Proper identification is crucial to avoid reverse connection, which can block current and potentially damage the circuit.

What is a 1N4001 diode used for?

The 1N 4001 is used for rectification, reverse polarity protection, and flyback diode applications. It converts AC to DC in power supplies, stabilizes current in DC-to-DC converters, and protects circuits from voltage spikes. Its 1A current rating and 50V reverse voltage make it suitable for general-purpose electronics, battery chargers, inverters, and industrial or hobbyist circuits.

How many amps is a 1N4001 diode?

The diode rate for 1 amp average forward current (IF(AV)). It can handle short-term surge currents up to 30A for brief periods, such as during inrush conditions. This combination allows it to support moderate power applications safely while providing robustness against transient overloads. Proper heat dissipation ensures reliable long-term operation.

What applications typically use the 1N4001 diode?

1N4001 use in DC-to-DC converters, switching mode power supplies, inverters, battery chargers, and general rectification circuits. It also protects circuits from reverse voltage and flyback currents. Its versatility, surge capability, and reliability make it common in consumer electronics, industrial power supplies, automotive circuits, and hobbyist projects, providing efficient and safe current flow.

Is 1N4001 a silicon diode?

Yes, the 1N4001 is a silicon PN junction diode. Silicon allows high reliability, good temperature tolerance, and efficient rectification. Unlike germanium diodes, it has a higher forward voltage drop (~0.7–1.1V) and excellent surge capability. Its silicon construction ensures long-term durability, stable performance, and compatibility with standard electronic circuits.

Conclusion

The 1N4001 diode is a reliable and versatile general-purpose silicon rectifier, widely used in power supply and protection circuits. With a 1A forward current rating, 50V reverse voltage, and robust mechanical construction, it delivers consistent performance. Its high surge capability, low power loss, and RoHS compliance make it ideal for both hobbyist and industrial applications. Whether used in DC-to-DC converters, inverters, or general rectification, the 1N4001 provides efficient, cost-effective, and durable operation. Its availability from trusted manufacturers like ON Semiconductor and Vishay ensures quality, making it a staple component in electronics design.
