MPI2510V1-R68-R
lmages are for reference only.MPI2510V1-R68-R
FIXED IND 680NH 3.4A 44 MOHM SMD
Datasheet1008 (2520 Metric)
38,792 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 nH Shielded Inductor 3.4 A 44mOhm Max 1008 (2520 Metric)
MPI2510V1-R68-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | MPI25-V1 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 4.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 44mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

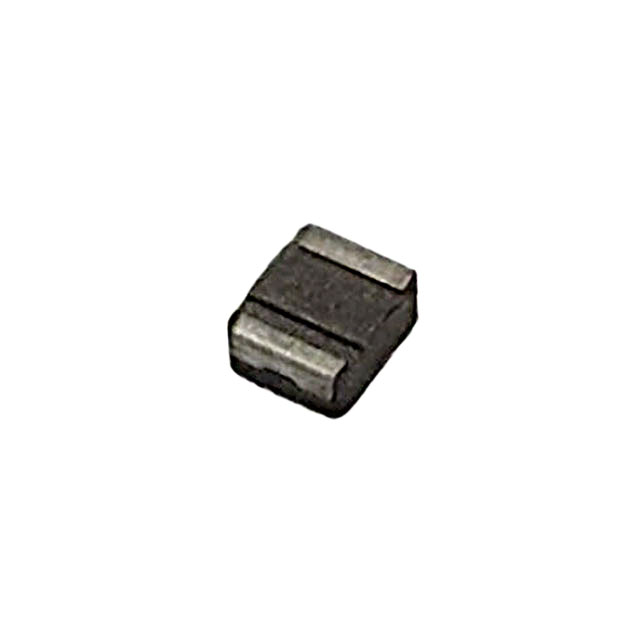

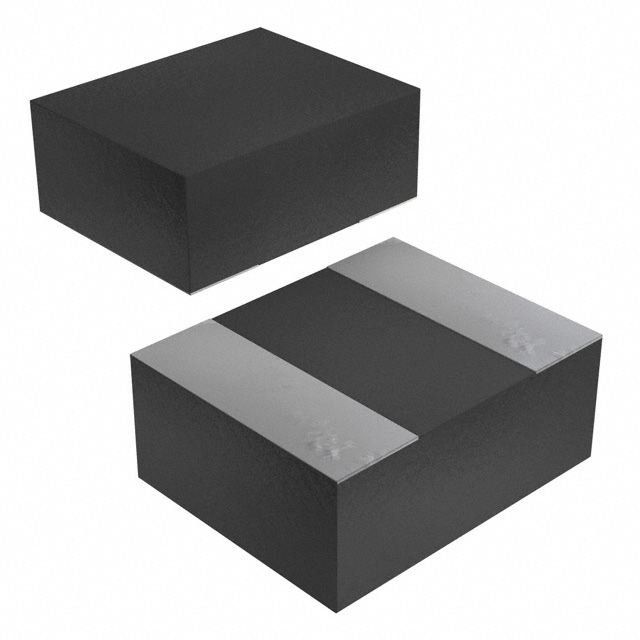

| Part Number | MPI2510V1-1R0-R | MPI2510V1-1R0-R | MPI2510V2-1R0-R | MPI2510V2-1R5-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 1UH 3.4A 52 MOHM SMD | FIXED IND 1UH 3.4A 52 MOHM SMD | FIXED IND 1UH 3.1A 52 MOHM SMD | FIXED IND 1.5UH 2.5A 85MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
